Product Details:
|
| Brand Name: | AORUI | Certification: | CE ISO9001 |
|---|---|---|---|
| Raw Material: | PVC | Screw Design: | Double Screw |
| Voltage: | 380V 50HZ | Place Of Original: | Shandong , China |
| Screw&Barrel Material: | 38Cr MOAIA | Warranty: | 12 Months |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||
PVC Marble Plastic Profile Production Line / Plastic Profile Marble Extrusion Line
Quick detail:
1. This production line is mainly used to produce PVC marble designs decorative profile, building materials, such as baseboard, doorjamb, electric cable trunk, door frame, decorative sheet , etc.
This building material is comparable to natural stone material, it's graceful and elegant at the same time with natural stone incomparable advantages.
2. Feature:

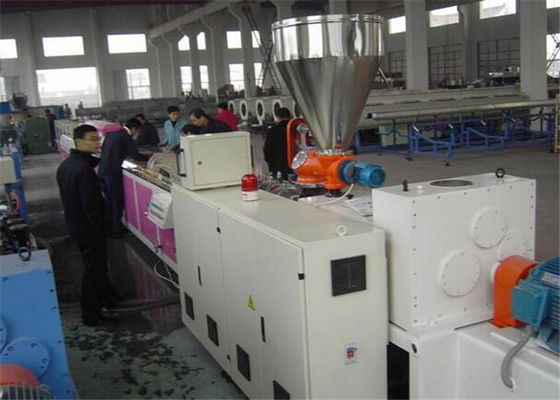

Conical twin-screw extruder, suitable for processing PVC powder and combination materials.
Changing the moulds to produce many kinds of different PVC building materials, decorative profiles.
Auxiliary machine: Mixing unit, Mould, Vacuum calibration table, Printing machine, Haul-off machine, Cutter and Stacker.
Description:
1. PVC Marble main application:
1)Now PVC marble and sheet is widly used and instead of traditional stone marble step by step.
2)Similar with traditional stone marble usage,it is used for wall,floor,window sill,TV background wall,wall corner skirting line and so on.
2. Advantages of PVC marble than traditional stone marble:
1)Environment protection,PVC marble is mainly made by PVC powder and Caco3 powder,it's environmental.Traditional stone marble has formaldehyde,toxic harmless also has radiocontamination.
2)PVC marble raw material is PVC powder and Caco3 powder,very cheaper than traditional stone marble.
3)PVC marble is water proof,but traditional stone is easy to got water seepage.
3. Process flow:

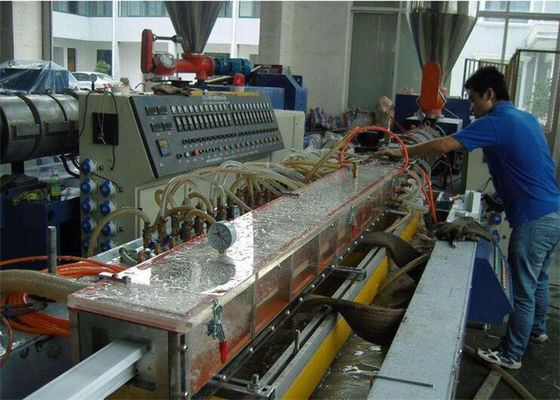

Mixer→Spiral loader→SJSZ51;SJSZ65;SJSZ80 double-screw extruder→mould→vacuum calibration spraying platform→haul-off machine→blade cutter→stacker
Technical Parameters:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 | YF1200 |
| Max width of board(mm) | 180 | 240 | 300 | 600 | 900 | 1200 |
| Drawing heighe(mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| Drawing speed(KN) | 2 | 2 | 2 | 30 | 40 | 50 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 | 45 |
| Cooling water consume | 6 | 6 | 6 | 9 | 12 | 15 |
| Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Applications:
It is mainly used for producing various sizes of WPC PVC profiles, window door profile, decking floor, ceiling panel and so on. Our PVC profile machine has features of low consumption, high output, stable running.

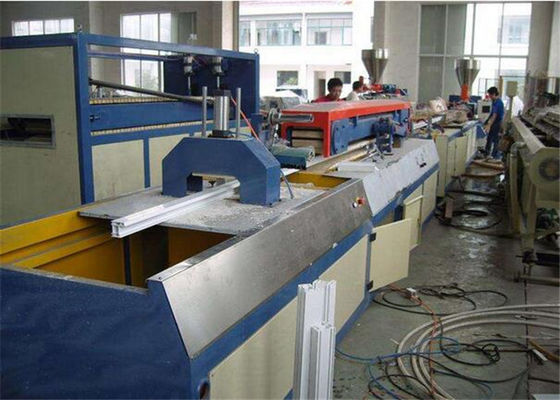

Normal PVC profile production line is composed of main extruder, mould, vacuum calibration table, haul-off, cutting and stacker.
By changing different mould, PVC profile making machine can produce many PVC plastic profile products with different shapes.
