Product Details:
|
| Brand Name: | AORUI | Place Of Original: | Shandong , China |
|---|---|---|---|
| After-salesservice: | Engineers Availiable To Service | Model: | SJSZ65/132 |
| Automatic Grade: | Fully Automatic | Port: | Qingdao |
| Temperature Controller: | Omron | Frewuency Control: | ABB |
| High Light: | double screw extruder,twin screw extrusion machine |
||

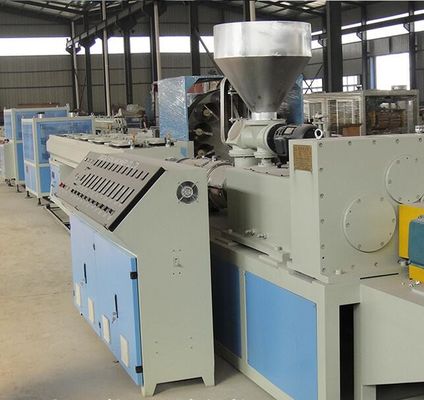

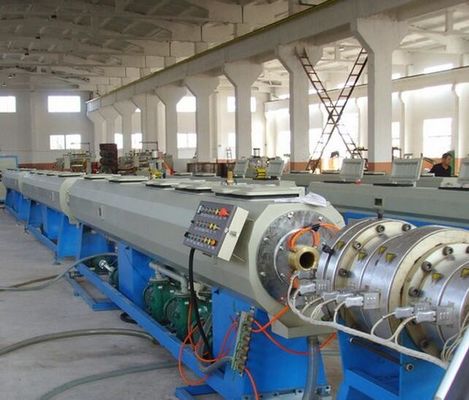

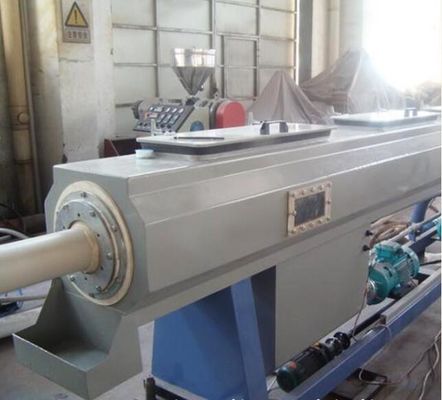

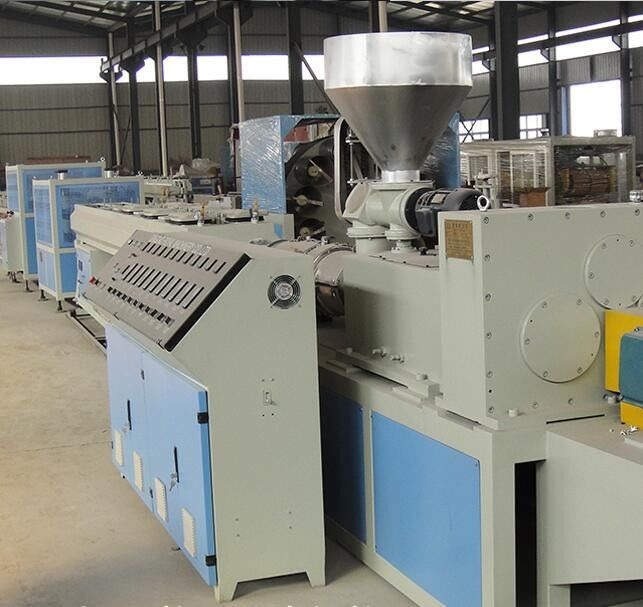

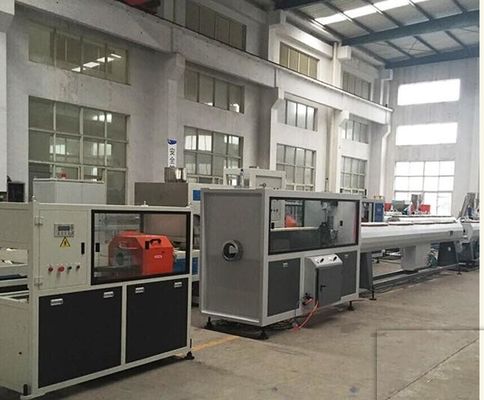

PVC Twin Screw Extruder , pvc Pipe Extrusion Line , PE PPR PVC Pipe Extrusion Machine / Plant
Quick detail
1. SJ series of single-screw extruder can apply to produce such products with thermoplasticity as pipes of PP, PE, PS, ABS, PMMA, PVC, as well as plates, sheets, rods, profiles and plastic pellets.
Description:
1.This PVC pipe production line is mainly used to produce U-PVC/C-PVC pipes of water supply and water drainage. This line consists of conical twin screw extruder, vacuum calibration table, haul off machine, pipe cutting machine and stacker.
2. This unit adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
3. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, amd core layer foam pipeject. it can also produce PP,PE,ABS,PPR,PEX, silicon core pipe and pipe computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.
4. PVC Pipe Production Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes. The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
1. PVC Pipe Production Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc.
2. PVC pipe making machine can produce variety of PVC pipe for water supply, drainage, cable protection ,etc
Our competetive advantages:
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
