Product Details:
|
| Brand Name: | AORUI | Type: | PVC WPC Foam Board Machine |
|---|---|---|---|
| Place Of Original: | Shandong , China | Certificate: | CE ISO9001 |
| Port: | Qingdao | Temperature Controller: | Omron |
| Automatic Grade: | Fully Automatic | Motor: | Simens |
| High Light: | wpc pvc foam board machine,wpc board machine |
||

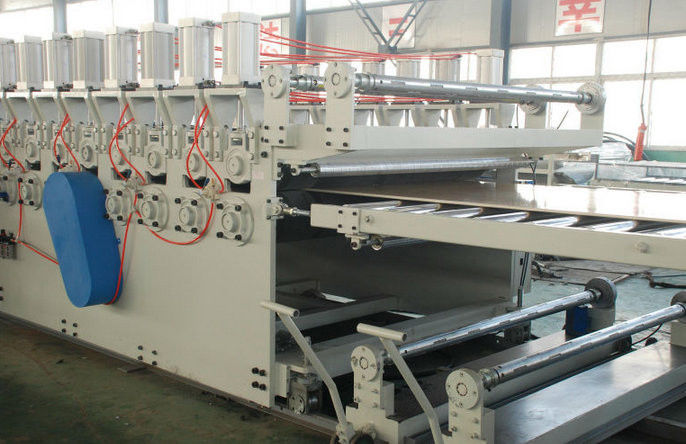

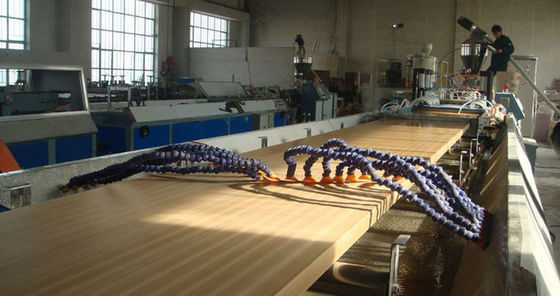

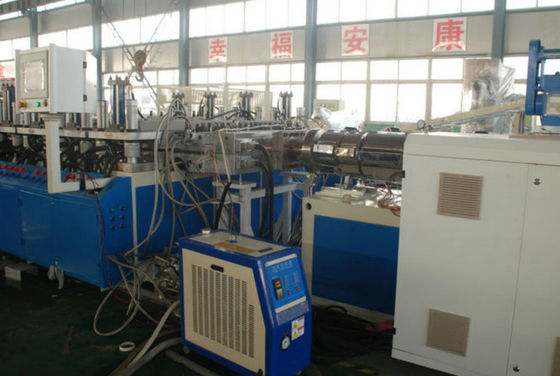

WPC PVC Crust Foam Board / Sheet / Plate Production Line For Furniture Board
Quick detail:
1. Working flow of WPC(wood plastic) making machine
Feeder→ Conical Twin-screw Extruder → Mould →Calibration Table → Haul-off → Cutter → Stacker
(Note: Other Auxiliary Machine, such as crusher, mixer, etc. will be provided according to client's requirements)
2. High efficiency conical twin screw extruder.
It can produce rigid pvc wpc crust/skinning foam board machine.
The thickness is from 3mm to 45mm, width is from 1220mm to 2050mm.
This sheet is mostly used in transportation , advertisement,construction furniture industry ect.
Description:
1. Specification of finished board: 1220*2440*(4-25) mm or 915*1830*(4-25) mm
Density of finished board: 0.35-0.85
Application of Finished Board: Furniture board, construction formwork, decoration board, advertisement board, wall panels, roof, car and boat board etc.
After-sales Service Provided: Engineers available to serve overseas
Packing Details: seaworthy wood package and film covered
Delivery Details: 30 working days
2. PVC foam board machine adopts Celuka foaming technology. Compared PVC free foaming board, PVC celuka foaming board has not only much smoother surface, but also better surface hardness. In addition, mechanics performance of celuka foaming board is better than that of free foaming board.
Applications:
PVC and WPC crust foamed boards also use widely as building board, tools board, furniture, mould for block, packaging ,recycling box, advertisement plate, show plate, business plate, roof, ship profile, etc. this product have specifications as weather resistance, resistance germ, corrode, cloudy, ant, fire, elect, worms, mice, ultraviolet ray, etc. also could keep temperature, use long times.
Specifications:
| Model | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
|
Master Power (kw) |
18.5 | 30 | 37 | 55 | 110 |
|
Production Midth (mm) |
120 | 180 | 350 | 600 | 1200 |
|
Vacuum Pump Power (kw) |
4 | 5.5 | 7.5 | 5.5 X 2 |
11 x 2 7.5 x 1 |
|
Tration Speed (m/min) |
0~4
|
0~4
|
0~5
|
0~3
|
0~2.5
|
|
Extrusion Capacity (kgh) |
110 | 150 | 220 | 350 | 580 |
Competitive Advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
