Product Details:
|
| Certification: | CE ISO9001 | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Power: | 55kw | Screw&Barrel Material: | 38Cr MOAIA |
| Type Of Extruder: | Twin Screw | Temperature Control: | Omron |
| Port: | Qingdao | Frequency Control: | ABB |
| High Light: | wood plastic composite extrusion machine,wpc profile extrusion line |
||
WPC PVC Window Profile Production Line / WPC PVC Profile Machine For Wall Panel
Quick detail:
1. The wood-plastic is a new kind of synthetic material which uses PVC,PP,PE resin or recycled plastic and plant fibre ( wood powder,chaff,straw etc.) as raw material and through the process of mixing,exrusion,calibrating,drawing off and cutting.

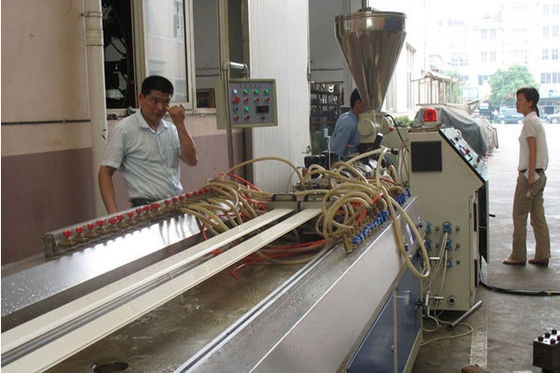

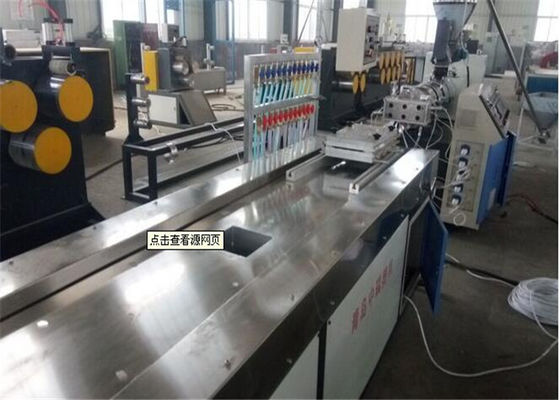

2. This production line adopts international technology, uses PE, PP, PVC, PS or other plastics compounding with nature fiber powder as the raw material, employs high efficiency conical twin screw extruder ,mould .vacuum calibration table ,tractor and cutter.
Description:
1. This conical twin screw extruder is qualified for upvc,pvc,wpc powder extrusion directly to produce various kinds of plastic profile. full set of mould can safisfy different kinds of flooring ,profile ,decking ,panel and other wpc products. wpc product is very widely used nowadays! automatic length accounting device for precise cutting. cutting machine ,adopt advanced Germany technology. stainless steel and pneumatic controlled.
2. This machine can use one step extrusion method and also it can use the two-step extrusion method alter pelletizing. The two-step extrusion method can save the poer and space ,and the two-step extrusion method features the machine can gain the high outpue and stable extrusion pressure.
3. A pre-heating feeder is mounted on the top of the extruder which extraxts the humidity from the wood powder , so that the feeding section of the extruder can be filled with enough material and the plastification effect will be better. Special and well designed screw enables the raw material to be evently stay in the extruder. The screws and barrel are bi-metallic treated , more wearable and anti-corrosion.
Applications:
WPC decking application:
ourdoor application: wpc hollow decking, wpc solid decking, WPC beam/joist/keel, wpc wall cladding panel, wpc bench/chair, wpc fence/railing, upright post/pillar, wpc pavilion, wpc roof profiles, etc.
Indoor application: door window profiles, furniture decorative profiles, foaming profiles, etc.
Specifications:
| Model | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 |
| Max. width of product(mm) | 180 | 240 | 300 | 400 | 500 | 600 |
| Extruder model | SJSZ55/110 | SJSZ65/132 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJZ80/156 |
| Max. extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 360 | 360 |
| Extruder power(kw) | 22 | 30/37 | 30/37 | 30/37 | 55 | 55 |
| Cooling water(M3/h) | 5 | 7 | 7 | 8 | 10 | 12 |
| Compressed air(M3/min) | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
