Product Details:
|
| Model Number: | SJSZ80/156 | Screw Design: | Double Screw |
|---|---|---|---|
| Automatic: | Fully Automatic | Payment Terms: | TT Or L/C |
| Raw Material: | PVC Powder | Motor: | Simens |
| Condition: | New | Nitrided Layer Thickness: | 0.4-0.7mm |
| High Light: | wood plastic composite extrusion machine,wood plastic machine |
||
WPC Profile Machine / WPC Machine For WPC Profile WPC Decking WPC Flooring
Quick detail:
1.Our WPC machine has features of low consumption,low noise,stable running..
2.This WPC machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.
3.The extruder of WPC machine adopt special wpc screw and barrel for extrusion.With different mould,WPC machine can produce wpc products with different shapes.
Description:

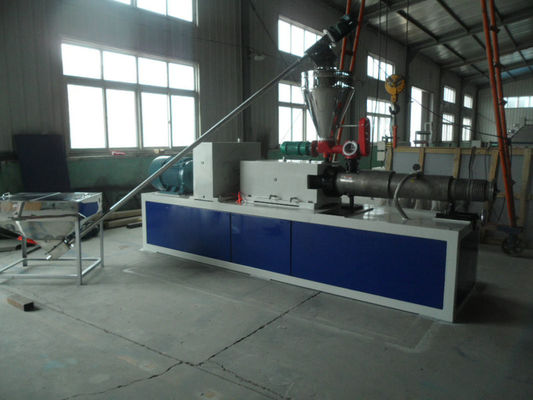

1. Conical Twin Screw Extruder: Adopting specially screw designs according to different materials make the high polymer micro-foam uniform plasticization, high extrusion. Imported famous brands AC inverter makes the rotation speed stable to ensure the main extruder and accessory machines move synchronously.

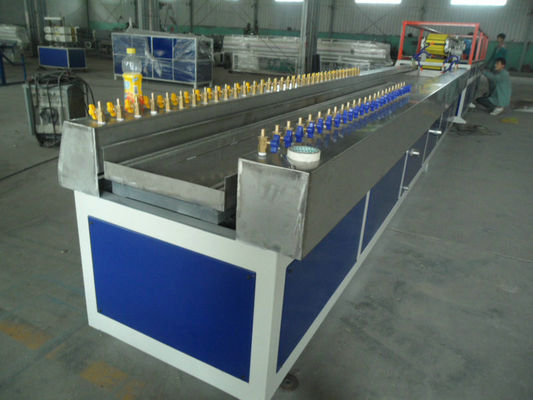

2. Vacuum calibrating table:Adopts powerful turbo cooling system, easy to achieve satisfactory cooling effect. According to different moulds and different customer requirements, the vacuum calibrating table can be optional as 4m, 6m.

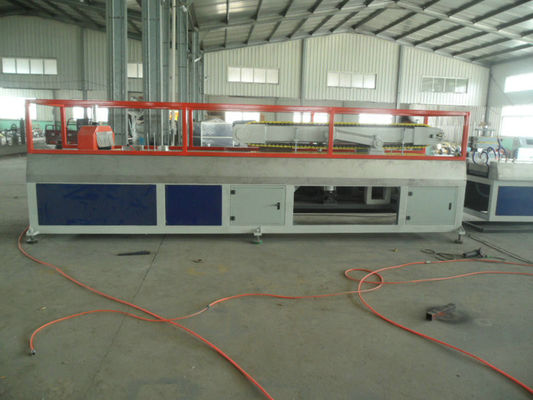

3. Haul off machine:Adopts special lifting technology, and has the features of stable running, reliable working, powerful hauling etc,
4.Cutting machine:the moving speed of the cutting unit is synchronized with hauling speed. Through prseting,the cutting unit is capable for automatic cutting with fixed length. Dust recycling device is also equipped.
5. PVC profile production line consist of Mixer→Spiral loader→SJSZ51;SJSZ65;SJSZ80 double-screw extruder→mould→vacuum calibration spraying platform→haul-off machine→blade cutter→stacker
Applications:
1. WPC production line is mainly used for producing wpc profiles,such as decking,skirting stair handrails etc.Meanwhile,this production line can also produce pure pvc products,such as door&window frame,ceiling etc.
2.The machine can produce PE,PP or PVC and wood profile products. These products are mainly applied for making pallets , packing cases , floors , wall decoration materials and other wide application. The wood powder or plant fiber can be putup to max , 50-75%. This machine can produce the pp, pe , pvc , abs, ps and etc.
Specifications:
| Model | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 |
| Max. width of product(mm) | 180 | 240 | 300 | 400 | 500 | 600 |
| Extruder model | SJSZ55/110 | SJSZ65/132 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJZ80/156 |
| Max. extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 360 | 360 |
| Extruder power(kw) | 22 | 30/37 | 30/37 | 30/37 | 55 | 55 |
| Cooling water(M3/h) | 5 | 7 | 7 | 8 | 10 | 12 |
| Compressed air(M3/min) | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
