Home ProductsPlastic Extrusion Machine

Double Wall PP PE PVC Drainage / Pipe Manufacturing Plant Low Noise

Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

Double Wall PP PE PVC Drainage / Pipe Manufacturing Plant Low Noise

China Double Wall PP PE PVC Drainage / Pipe Manufacturing Plant Low Noise supplier
Double Wall PP PE PVC Drainage / Pipe Manufacturing Plant Low Noise supplier Double Wall PP PE PVC Drainage / Pipe Manufacturing Plant Low Noise supplier Double Wall PP PE PVC Drainage / Pipe Manufacturing Plant Low Noise supplier

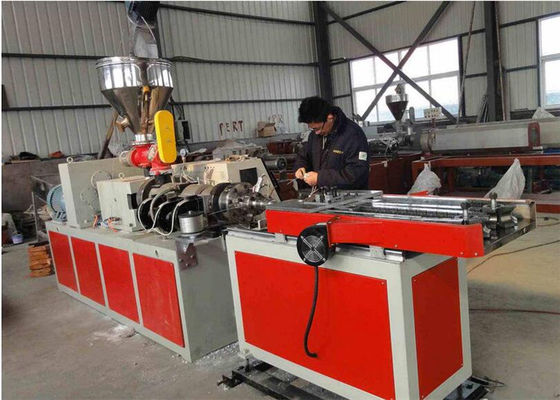

Large Image :  Double Wall PP PE PVC Drainage / Pipe Manufacturing Plant Low Noise

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Place Of Original: Shandong , China Motor: Simens
Specification: CE ISO9001 Certificate Extruder: Single Screw Extruder
Screw&Barrel Material: 38Cr MOAIA Customized: Customized
Automatic Grade: Fully Automatic Frequency Control: ABB

50-250mm Drainage Plastic Double Wall PE Corrugated Pipe Extrusion Machine





Quick detail:



1. This series Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic can be used to produce corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.



2. Use of Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic
The Single Wall Corrugated Pipe Production Line for PP PE PVC Waste Plastic are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.





Description:



1. This kind of extruder has wide application . adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS ,LDPE,LLDPE,PUand other plastics material to pipes, profiles, sheets and granules .



2. The characteristics:

1) Installed with imported termo controllers, imported inverters or converters.

2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life

3) For the material feeding section of barrel there’re slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.

4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.

5) We also can provide a variety of exhaust-type extruder





Specifications:



Diameter Scope

4.5-9

9-32

32-50

Main Extruder

SJ-30

SJ-45

SJ-65

L/D

30:1

30:1

30:1

Output kg/h

10

40

80

Main Motor Power kw

4

11

18.5

Corrugator Power kw

1.1

1.5

1.5

Mould Block Pairs

42

44

44

Cooling Type

Water and air cooling

Linear Speed (m/min)

6-10

8-12

8-15

Counting Type

Sensing counting

Winding Type

Automatic/Manual









Applications:



Double wall corrugated HDPE pipe made by pvc or hdpe is mainly used for green space plants, green garden spaces. Farmland, capital construction of farmland soil improvement, soil and water conservation, drought, waterlogging, land salinization improvement and so on.









Competitive Advantage:



1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.

Double Wall PP PE PVC Drainage / Pipe Manufacturing Plant Low Noise
