Product Details:
|
| Type: | Conical Twin Screw Extruder | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Place Of Original: | Shandong , China | Motor: | Simens |
| Certificate: | CE ISO9001 | Screw & Barrel Material: | 38Cr MOAIA |
| Screw: | Twin Screw | Delivery Time: | 25days |
| High Light: | double screw extruder,two screw extruder |
||

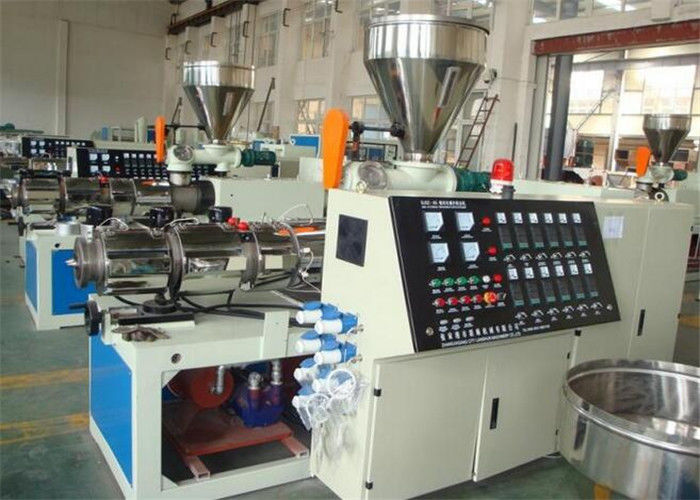

PVC Twin Screw Extruder / Plastic PVC Pipe / Profile / Board / Sheet Conical Twin Screw Extruder
Quick detail
1.Model SJZ series twin conical screw extruder is a kind of special equipment for extruding PVC powder. With different sorts of molds and auxiliary machines , it can produce all sorts of pvc plastic pipe material ,profiles material , board material , sheet material , bar material and granulation.
2. The screw has applied oil cooling systerm. Barrel is cooled by special wind cooling systerm. The systerm has applied special computer control. According to customer's requirements , most reasonable screw can be made so as to achieve best plasticity state and material quality.
Description:

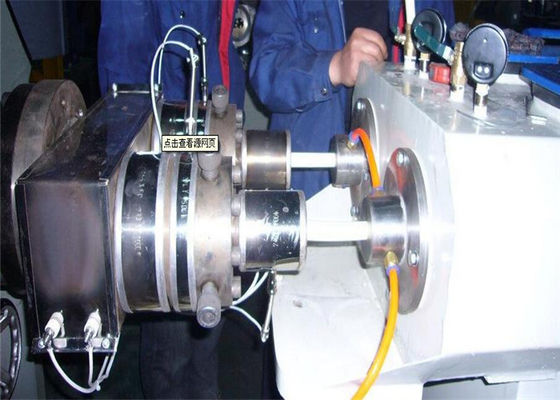

1. Plastic Conical Twin screw extruder is widely used to extruding the PVC pipe, PVC granules, PVC profile and so on. Conical twin-screw extruder(SJSZ series ) is composed of barrel screw ,gear transimssion system,measurable feeding,vacuum deaerating,heating,cooling and electronic control components.
It is mainly used in plasticizing,extruding and forming PVC pipe ,plate,sheet,film,profile,and granule,etc.

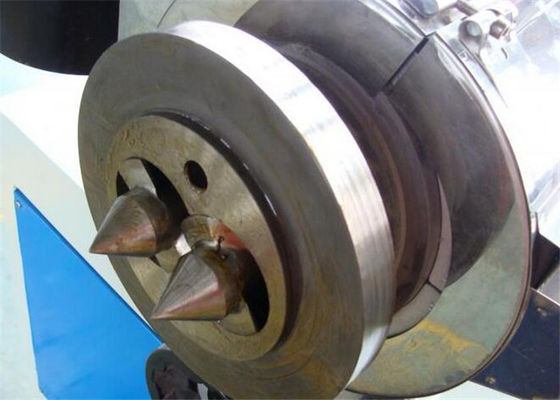

2. The screw is made by high precision special digital screw miller , extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth.So that the material can be more softly sheared and cut.
3. The distribution box is specially designed , pull force bearing is fully imported ,and the drive life span can be prolonged. It can bear larger extruding pressure. The electrical systrm has mainly applied imported parts , it has multiple alarm systerm , and there are few problems which can be easily eliminated. The cooling systerm has applied special design , heat emission area is enlarged , the cooling is rapid , temperature control tolerance can be +1or-1.
Conical twin screw extruder Main Technical Standards:
| model | SJSZ51 | SJSZ55 | SJSZ65 | SJSZ80 | SJSZ92 |
| Screw diameter | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Screw speed | 1-40 | 1-38 | 1-38 | 1-37 | 1-36 |
| Center height | 1050 | 1150 | 1050 | 1050 | 1100 |
| The motor power | 18.5 | 22 | 37 | 55 | 90 |
| Output(KG/H) | 80-100 | 100-150 | 150-250 | 250-380 | 380-700 |
| Net Weight(KG) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H(m) | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
| Screw direction | Opposite and outer | ||||
Our competetive advantages:
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
