CE / ISO9001 Twin Screw Extruder Pvc Pipe Extrusion Line 150-800kg/H

China CE / ISO9001 Twin Screw Extruder Pvc Pipe Extrusion Line 150-800kg/H supplier
CE / ISO9001 Twin Screw Extruder Pvc Pipe Extrusion Line 150-800kg/H supplier CE / ISO9001 Twin Screw Extruder Pvc Pipe Extrusion Line 150-800kg/H supplier CE / ISO9001 Twin Screw Extruder Pvc Pipe Extrusion Line 150-800kg/H supplier

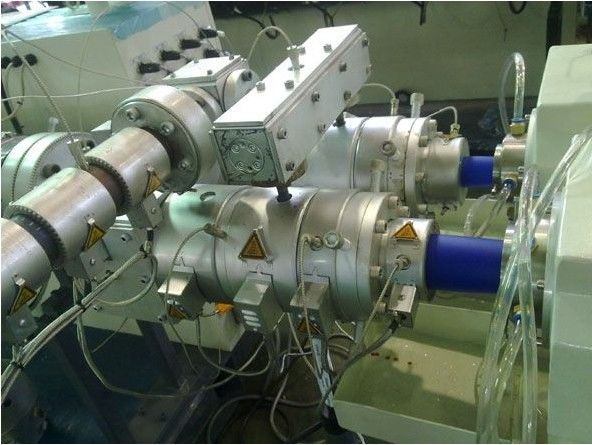

Large Image :  CE / ISO9001 Twin Screw Extruder Pvc Pipe Extrusion Line 150-800kg/H

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Condition: New Model Number: SJSZ65/132
Automatic Grade: Fully Automatic Certificate: CE ISO9001
Motor: Siemens Frequency Control: ABB
Voltage: 380V 50HZ Port: Qingdao

PVC Twin Pipe Production Line , Twin Screw Extruder PVC Pipe Extrusion Line


Quick detail



1. This PVC pipe production line is mainly used to produce PVC pipes, which is widely used as water supply pipe, drainage pipe, cable and wire protection pipe
Size range: 16-630mm
Capacity: 150-800kg/h



2. This production line include: Raw material loader, extruder, moulds, vacuum calibration tank, water cooling tank, haul-off machine, cutting machine, winding machine, and also optional printing machine, mixing machine






Description:

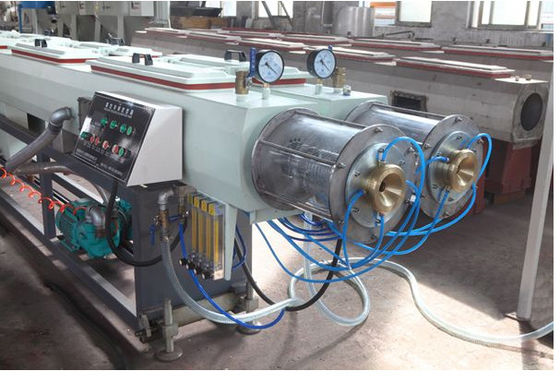

1. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; Special spray cooling system improves the cooling efficiency; Special water position, water temperature system make the machine more intelligent.



2. Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; Pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.

Cutting system adopts saw blades and planetary cutting means; Sumping uses hydraulic system, which ensures the smooth cross section; Equipped with dust-collecting unit, which ensures the clean working environment.



3. PVC Pipe extrusion Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes. The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing.









Main Technical Parameters:


Model number PVC-16/63 PVC-20/110 PVC-50/160 PVC-75/250 PVC-110/315
Pipe diameter 16-63mm 20-110mm 50-160mm 75-250mm 110-315mm
Max output 120kg/h 120kg/h 180kg/h 300kg/h 450kg/h
Production rate 1.5-15m/min 0.8-8m/min 0.5-5m/min 0.4-4m/min 0.3-2m/min
Extruder model SJZ-51/105 SJZ-51/105 SJZ-65/132 SJZ-65/132 SJZ-80/156
Installed power 45kw 45kw 55kw 75kw 105kw
Center height 1000mm 1000mm 1000mm 1000mm 1100mm
Installation area 22*2.5*2.0m 24*2.8*2.0m 24*2.8*2.0m 30*2.8*2.2m 35*3.0*2.4 m










Application:

This PVC pipe production line is mainly used to produce PVC pipes, which is widely used as water supply pipe, drainage pipe, cable and wire protection pipe


Our advantage:



experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
