Product Details:
|
| Model Number: | SJSZ65/132 | Weight: | 15000kg |
|---|---|---|---|
| Certificate: | CE ISO9001 | After-sales Service: | Engineers Availiable To Service |
| Motor: | Siemens | Frequency Contrl: | ABB |
| Screw Number: | Two | Automatic Grade: | Fully Automatic |
| High Light: | double screw extruder,two screw extruder |
||

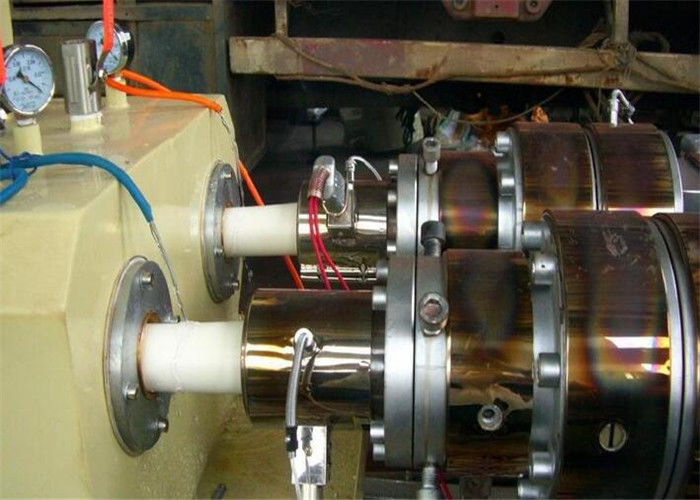

Twin Screw Extruder PVC Pipe Production line , Machine For Making PVC Twin Pipe Extrusion Line
Quick detail
1. SJZ series conical twin-screw extruder is suitable for all types of PVC powder extrusion of special equipment. Equipped with different molds and auxiliary equipment. It can produce all kind of PVC plastic pipes, profiles, plates, sheets, bars, and granulation. Screw with oil cooling system. Barrel with special air cooling system. System uses special computer-controlled. The different formulations according to user requirements, preparation of structure, the most reasonable screw in order to achieve the best quality plastics and logistics status.
2. Process flow:

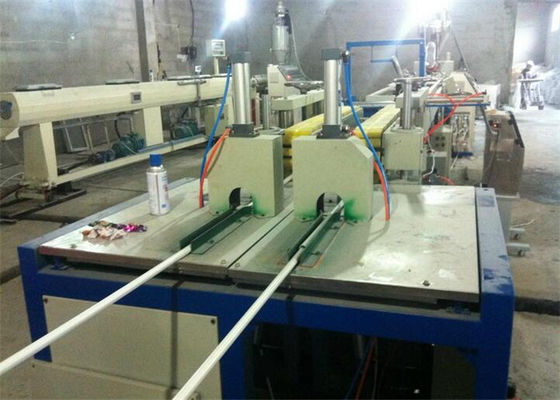

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
Description:
1. Excellent in chemical corrosion, no rust; With self extinguishing and flame retardant; Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;
Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;
2. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration; Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.
3. PVC- Pipe Extrusion Line Application: This line can produce anti high anti high strength, anti high temperature, anti-aging, anti-chemical, good insulation PVC pipe. The quality of this pipe is up to B/T2479-2000 and Q/ys th-1999 standard. It is the first choice for the high voltage cable protection.
Main Characters: This line can solve the problems of high temperature melting, high viscosity, easy-decomposition. The special designed screw, gearbox, tooling, and HMI system make the line reliable and easy operation.
Main Technical Parameters:
| Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm |
| Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h |
| Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min |
| Extruder model | SJZ-51/105 | SJZ-51/105 | SJZ-65/132 | SJZ-65/132 | SJZ-80/156 |
| Installed power | 45kw | 45kw | 55kw | 75kw | 105kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm |
| Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m |
Main Applications:
1. Water supply and drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
Our advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
