Rainwater Drainage PVC Twin Pipe Extrusion Machine , PP PE PVC Twin Pipe Production Line

Rainwater Drainage PVC Twin Pipe Extrusion Machine , PP PE PVC Twin Pipe Production Line
Rainwater Drainage PVC Twin Pipe Extrusion Machine , PP PE PVC Twin Pipe Production Line Rainwater Drainage PVC Twin Pipe Extrusion Machine , PP PE PVC Twin Pipe Production Line Rainwater Drainage PVC Twin Pipe Extrusion Machine , PP PE PVC Twin Pipe Production Line

Large Image :  Rainwater Drainage PVC Twin Pipe Extrusion Machine , PP PE PVC Twin Pipe Production Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ51/105
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

Rainwater Drainage PVC Twin Pipe Extrusion Machine , PP PE PVC Twin Pipe Production Line

Description
Raw Material: PVC Port: Qingdao
Screw&Barrel Material: 38Cr MOAIA Warranty: 12 Months
Certificate: CE ISO9001 Type: PVC Twin Pipe Making Machine
Frequency Control: ABB Model Number: SJSZ51/105
High Light:

double screw extruder

,

two screw extruder

PVC Twin Pipe Extrusion Machine , PP PE PVC Twin Pipe Production Line


Quick detail



1. SJSZ series plastic pipe production line is mainly used in manufacture of the plastic PVC pipes with tube diameters and wall thickness, which are used for water supply and drainage/electric conduict pipe in the field of agriculture and construction.



2. This line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter, stacker etc.The extruder and the haul-off adopt the quality AC frequency conversion control device.

The vacuum pump and motor adopt the famous brand.The haul-off have two-claw, three-claw, four-claw, six-claw.It may choose the saw blade cutting type or the planet cutting production efficiency.





Description:

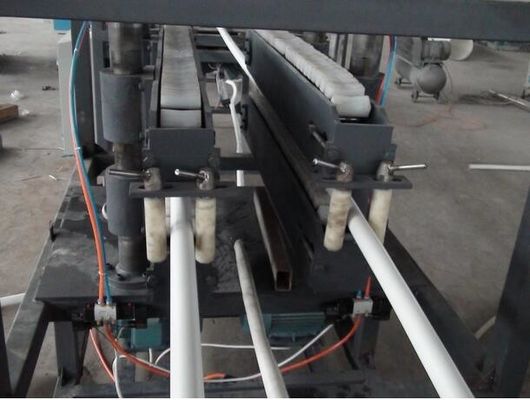

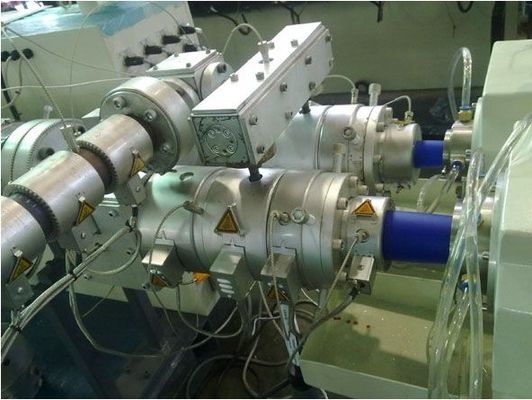

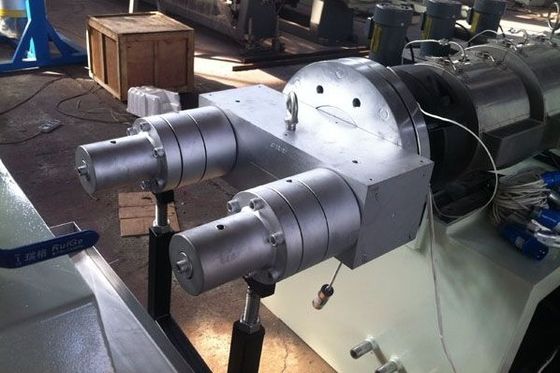

1. First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing systerm. Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker.



2. PVC plastic pipe extruding machine is mainly used to produce thick PVC pipe material of various pipe ranges for water supply and buildings,drainage,agricultural drainage and cable laying.This machine set is made up of conical twin screw extruder,vacuum calibrating tank,tractor,cutting

machine,stacker,etc.The extruder and tractor adopts imported AC variable frequencydevice.And the vacuum pumps and tractors adopted are both of high quality.The ways of traction varies from two claws,three claws,four claws,six claws,eight claws etc. The way of cutting can be cutter lifting or planet cutting.



3. Plastic extruder/twin screw extruder/conical twin screw extruder is composed of barrel screw, gear transmission system, measurable feeding, vacuum deaerating, heating, cooling and electronic control components etc.
It is mainly used in plasticizing, extruding and forming of PVC pipes, plates, sheets, film, profiles, and granules etc.









Main Technical Parameters:




Pipe Range 16-40mm
(double)
20-110mm 50-250mm 160-400mm 315-630mm
Extruder SJZ65/132
Or
SJZ51/105
SJZ65/132 SJZ65/132
Or
SJZ80/156
SJZ80/156 SJZ92/188
Motor(KW) 37KW
or
18.5KW
37KW 37KW
Or
55KW
55KW 110KW
Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1










Main Applications:

1. Water supply and drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.







Our advantage:



1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
