High Efficiency PVC Fiber Reinforced Soft Pvc Pipe Manufacturing Plant

Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

High Efficiency PVC Fiber Reinforced Soft Pvc Pipe Manufacturing Plant

China High Efficiency PVC Fiber Reinforced Soft Pvc Pipe Manufacturing Plant supplier
High Efficiency PVC Fiber Reinforced Soft Pvc Pipe Manufacturing Plant supplier High Efficiency PVC Fiber Reinforced Soft Pvc Pipe Manufacturing Plant supplier High Efficiency PVC Fiber Reinforced Soft Pvc Pipe Manufacturing Plant supplier

Large Image :  High Efficiency PVC Fiber Reinforced Soft Pvc Pipe Manufacturing Plant

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Brand Name: Aorui Screw Number: Two
Certificate: CE ISO9001 Automatic Grade: Fully Automatic
Motor: Siemens Payment Terms: TT Or L/C
Warranty: 12 Months Model Number: SJSZ65/132

PVC Fiber Reinforced Soft Pipe Extrusion Machine , PVC Fiber Reinforced Soft Pipe Making Machine





Quick detail



1. The PVC and PE spiral reinforcing pipe have the advantage of pressure and corrosive resistance, negative pressure and bend resistance. It is used to convey the gas, liquid and powder material. It is widely used in industry, agriculture, archintecture, water conservancy irrigation and dust collector.



2. the feature of our PVC Hose Mahcine



1. High efficiency singel screw extruder

2. It can produce PVC garden hose or pvc soft hose

3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm

4. This pvc hose is mostly used as home, garden,farm, lawn and so on.







Specifications:



1. Flow Progress

Material mix inner --layer extrusion inner-- layer forming→ spray cooling→ haul off→ fibre winding→ oven dryness→ outer layer extrusion→ outer layer forming→ spray cooling→ haul-off→ printer→ winder



2. PVC fiber reinforced soft pipe, also called as PVC net grid pipe, is commonly called as plastic plica tube, suitable for transporting corrosive and compressive gas and liquid, extensively apply to machinery, colliery, petroleum, chemical industry, agriculture irrigation, building construction and civil construction(such as solar water heater, gas tank, natural gas and so on).

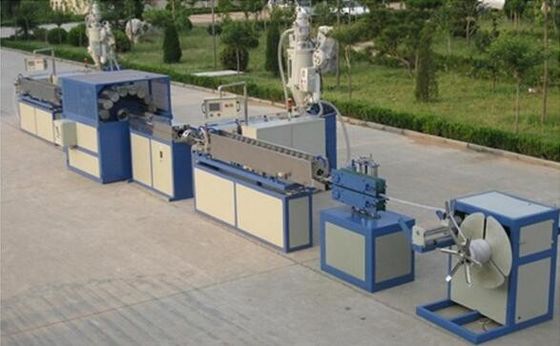

3. This line is made up of the conical twin-screw extruder, vacuum forming table, haul-offs, cutter, rickstand, etc. The extruder and the haul-offs adopt the imported AC frequency control device. The vacuum pump and the electric vehicle motor empoly the superior goods. The haul-offs has the traction modes such as two-caterpillars, three-caterpillars, four-caterpillars, five-caterpillars and so on. It is additionally attached with measuring apparatus and the intensifying device. The unit is reliable and efficient production








Applications:



PVC twisted reinforced pressure tube extrusion machine also called PVC pipe, plastic mesh snakeskin tube, PVC draiding pipes etc, suitable for pressure, corrosive, sound insulation, adiabatic requirements for the gas, liquid conveyor, widely used in machinery, mining, petroleum, chemical, agricultural irrigation, building and civilian (solar water heater, gas cylinder), etc.





Main technical parameter



Model Main motor power(kw) Capacity(kgs/hr)
LXSJ-50/28 11 35-50
LXSJ-65/28 18.5 50-80
LXSJ-90/28 37 80-120







Why choose us:



Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device



High Efficiency PVC Fiber Reinforced Soft Pvc Pipe Manufacturing PlantHigh Efficiency PVC Fiber Reinforced Soft Pvc Pipe Manufacturing Plant
