Product Details:
|
| Model Number: | SJSZ65/132 | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Invedrter: | ABB | Machine Color: | Bule Or According To Customer's Requirement |
| After-sales Service: | Engineers Availiable To Service | Certificate: | CE ISO9001 |
| Material: | PVC Powder | Voltage: | 380V 50HZ |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||
High Quality PVC Profile Production Line , PVC Profile Machine Extrusion Machine
Quick detail:
1. Flow chart :
Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support →haul-off → cutter → rack → finished product
2. Wood plastic profile is a new kind of construction and decoration material, it is mixed by PVC, PP, PE, PS, ABS, etc with different plant fibre, and then formed by vacuum calibrator. It is used in drilling, planing, nailing, sawing, jointing, printing and other construction method.
Description:

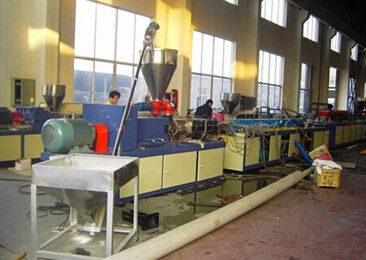

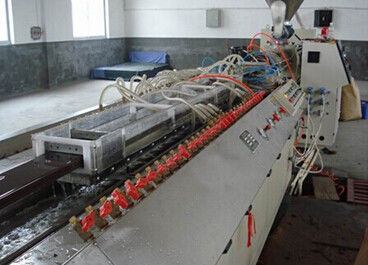

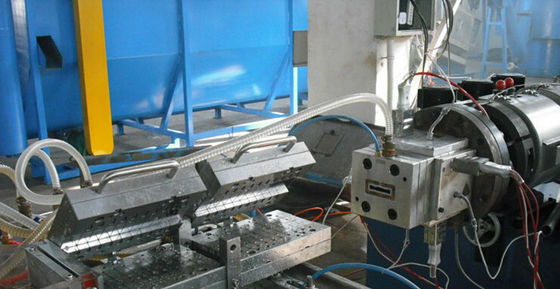

1. The profile extusinon line mainly used for making different kind of door and window profile. Can be used for making PVC and WPC window profile, hollow profile, fence, ceiling profile and others. The unit is composed of conical double-screw extruder, vacuum moulding table, haul-off, cutter and stack rack. The unit is optimized in design, referring to the newest foreign technology. The unit has the advantages of even plasticizing, small velocity of cutting, high output, long service-life and so on.
2. Have a good physical performance, durable time is some times longer than wood products. Light, good processing performance, wearable and good plasticity. Antibiotic, corrosion resistance, hard transmutation.
3. The production line according to the different requirements of customers and cross-sectional shape of the mold, you can choose the most suitable twin-screw extruder , and equipped with the appropriate vacuum form-ing . Cuttting and other auxiliary traction.
4. The machine can produce PE, PP or PVC and wood profile products. These products are mainly applied for making pallets , packing cases ,floors , wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max, 50-75%.The machine can produce the PP , PE , PVC ,ABS, PS and etc.
Applications:
This unit is professional line to produce WPC (PP/PE) profile product, including chairs,floors and trash can series profile product, PVC foaming profiles and decorative plates for making door.
The line compounds domestic and abroad technology, having characters of high automatic level, steady performance, large output and high efficiency.
Specifications:
| Model number | Main motor power | Heating power | capacity (kg/h) | Central height of machine (mm) |
| SJSZ45/90 | 15kw | 9.6kw | 70 | 1000 |
| SJSZ51/105 | 22kw | 11.5kw | 80 | 1000 |
| SJSZ55/110 | 22kw | 18kw | 150 | 1000 |
| SJSZ65/132 | 37kw | 24kw | 250 | 1000 |
| SJSZ80/156 | 55kw | 36kw | 360 | 1000 |
| SJSZ92/188 | 110kw | 88kw | 1000 | 1000 |
Competitive Advantage:
