Product Details:
|
| Brand Name: | AORUI | Condition: | New |
|---|---|---|---|
| Application: | PVC Pipe | Certificate: | CE ISO9001 |
| Voltage: | 380V 50HZ | Pipe Diameter: | 16-800mm |
| After-sales Service: | Engineers Availiable To Service | Color: | According To Customer's Requirement |
| High Light: | Plastic Extruding Machine,Plastic Extruder Machine |
||
PVC Plastic Pipe Extruder Machine , PVC Pipe Extrusion Machinery , PVC Pipe Production Line
Quick detail

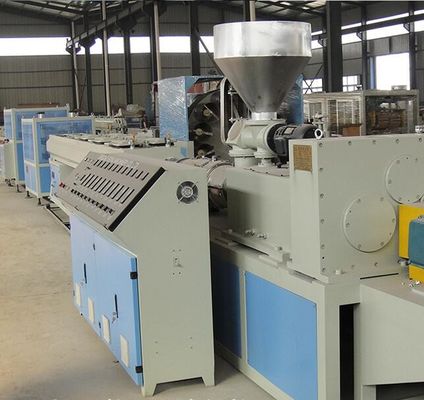

1. This Pipe Extruding Machine can be used to produce pvc hard pipes for electrician cable protection / passing, steel passing etc. It includes Conical twin screw extruder , vacuum calibration system , haul-off system , auto cutter and stacker.
2. capacity: 35-800 kgs/hour;
output product size range: 4.5mm-50mm;
Material used: PVC;
Oversea service, installation, staff trainning and technical support.
Description:
1. According to different raw materials and product specifications, screws with different ratios of length diameter and compression, barrels of different structures and proper driving devices are adopted so as to make products with high quality.
2. High output and low consumption. All hard teeth surface bears experienced heat treatment and fine grinding, the reduction box together with the inner forced cooling system ensure high efficiency, low voice and long lifespan.
3. The screw has been designed with reasonable geometric parameter. Corresponding to different raw materials and products, screws with different ratios of length diameter and structures are selected to meet different request of clients. In accordance with different requirements of raw materials, the heating section
of material barrel has two structures i.e. slot section and smooth section.
Main Technical Parameter
| model | screw diameter | L/D | driving power | output |
| SJ-45/30 | 45 mm | 30:1 | 22/30kw | 60/80kg/h |
| SJ-65/33 | 65 mm | 33:1 | 45/75/90kw | 150/210/250kg/h |
| SJ-75/33 | 75 mm | 33:1 | 110/132kw | 350/450kg/h |
| SJ-90/33 | 90 mm | 33:1 | 185/220kw | 550/700kg/h |
| SJ-105/33 | 105 mm | 33:1 | 220/285kw | 650/800kg/h |
| SJ-120/33 | 120 mm | 33:1 | 315kw | 950kg/h |
| SJ-150/33 | 150 mm | 33:1 | 450kw | 1350kg/h |
Application:

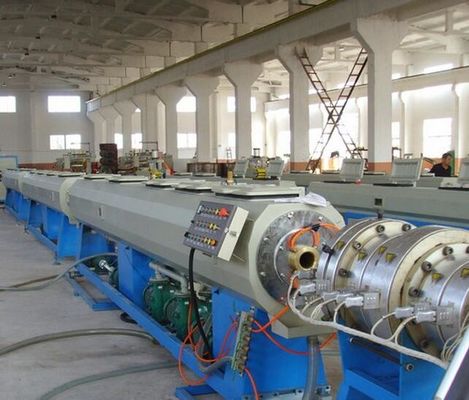

This series PVC pipe extrusion line is mainly in the manufature of plastic PVC pipes with various diameters and wall thickness used in the industrise such as agricultural and constructional plumbing,cable laying etc.
Our competetive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
