Drainage PVC Pipe Extrusion Equipment​ Single Screw Extruder With Air / Water Cooling

China Drainage PVC Pipe Extrusion Equipment​ Single Screw Extruder With Air / Water Cooling supplier
Drainage PVC Pipe Extrusion Equipment​ Single Screw Extruder With Air / Water Cooling supplier Drainage PVC Pipe Extrusion Equipment​ Single Screw Extruder With Air / Water Cooling supplier Drainage PVC Pipe Extrusion Equipment​ Single Screw Extruder With Air / Water Cooling supplier

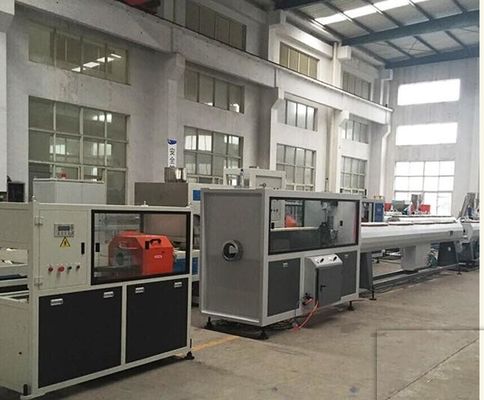

Large Image :  Drainage PVC Pipe Extrusion Equipment​ Single Screw Extruder With Air / Water Cooling

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Model Number: SJSZ65/132 Screw Number: Two
Pipe Discharge: Automatic Place Of Original: Shandong , China
Condition: New Cooling Systerm: Air Cooling Or Water Cooling
Motor: Siemens Port: Qingdao

PVC Pipe Making Machine / PVC Pipe Production Line / PVC Pipe Extrusion Equipment​




Quick detail

1. This PVC pipe Extrusion line is designed with advanced west Europe technology. The extruder is conical twin screw with double screw, it is mainly used for PVC powder. And we are able to make PVC water supply pipe, drainage pipe, conduit pipe for your optional.



2. With special device , it can produce inner wall sprial pipe , inner wall hollow pipe , and core layer bulpo pipe , etc. It can also produce PP PE ABS PPR PEX , sillicon core pipe and pipe material of other material. The planet - shaped cutting machine is fully automatic computer dgital control , it has such advanctges of simple operation , reliable property , etc. It has reached world advanced level.



Description:

1. Single screw extruder takes the new and efficient BM Screw,and has the higher screw speed, yield and plasticizing capacity...nose or spiral-flow nose,with a uniform material,convenient adjustment to eliminate extrusion fusion line and so on.

2. Vacuum shaping devices of PVC pipe making machine :vacuum spray tank,spray cooling tank or efficient cooling tank, and all water contact parts made of stainless steel material. Traction machine of PVC pipe making machine :two claw-type or rubber belt crawler tractor in order to adapt to different pipe production requirements..



3. Saw cutting or planet cutting can be applied , it is additionally applied with length measuring meter and thickness increasing device , the property of machine group is reliable , the production efficiency is high.Vacuum forming, constant temperature control to remove stress of pipe material .Adopts common extruding head and adds marking color line for pipe material.



Main Technical Parameter

model screw diameter L/D driving power output
SJ-45/30 45 mm 30:1 22/30kw 60/80kg/h
SJ-65/33 65 mm 33:1 45/75/90kw 150/210/250kg/h
SJ-75/33 75 mm 33:1 110/132kw 350/450kg/h
SJ-90/33 90 mm 33:1 185/220kw 550/700kg/h
SJ-105/33 105 mm 33:1 220/285kw 650/800kg/h
SJ-120/33 120 mm 33:1 315kw 950kg/h
SJ-150/33 150 mm 33:1 450kw 1350kg/h




Application:

This series PVC pipe extrusion line is mainly in the manufature of plastic PVC pipes with various diameters and wall thickness used in the industrise such as agricultural and constructional plumbing,cable laying etc.



Our competetive advantages:

1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
