Product Details:
|
| Brand Name: | Aorui | Certificate: | CE ISO9001 |
|---|---|---|---|
| Screw Design: | Double Screw | Autoamtic Grade: | Fully Automatic |
| Place Of Original: | Shandong, China | Aftr-sales Service: | Engineers Availiable To Service |
| Voltage: | 380V 50HZ | NAME: | Conical Twin Screw Extruder |
| High Light: | double screw extruder,twin screw extrusion machine |
||

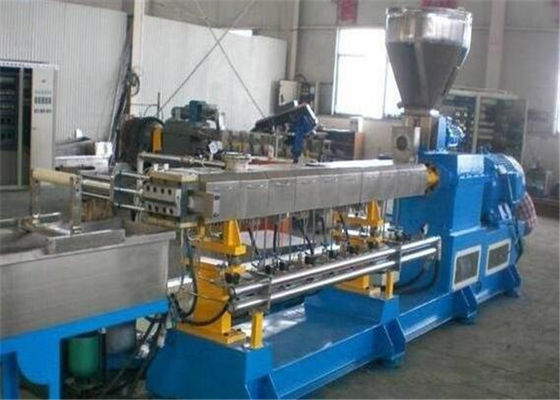

PVC Plastic Pipe , Profile , Board , Sheet Conical Twin Screw Extruder
Quick detail
1. Features:
* PLC control system is available
* All electrical components adopts famous brand : OMRON, ABB, SIEMENS etc
* Over current protective of motor
* With online protection film wrapping device
2. SJZ series conical twin screw extruder has advantages such as forced extruding, high quality,wide adaptability,long working life,low shearing speed, hard decomposition, good compounding & plasticization effect, and direct shaping of power material and etc.
Description:
1. This extruder is equipped with auto temperature controller, vacuum venting device etc.This production line is suitable for production of PVC or WPC pipe , plate and profile and etc.
2. Model SJZ series tein conical screw extruder is a kind of special equipment for extruding PVC powder. Wth different sorts od molds and auxiliary machines ,it can produce all sorts of pvc plastic pipe material, board material, sheet material , bar material and granulation.
3. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.

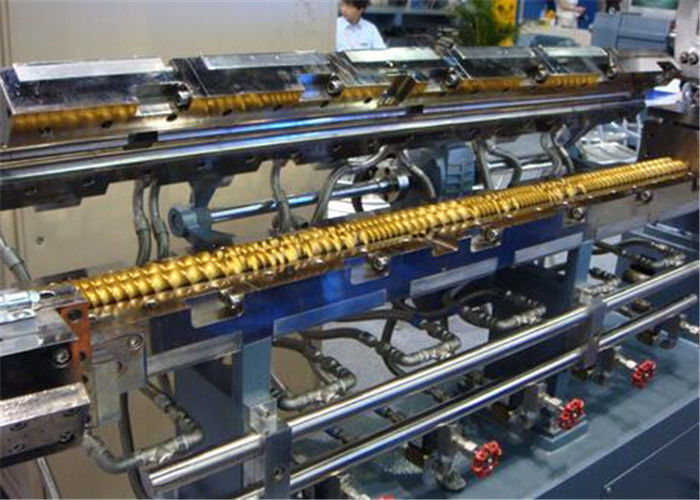

4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
Conical twin screw extruder Main Technical Standards:
| model | SJSZ51 | SJSZ55 | SJSZ65 | SJSZ80 | SJSZ92 |
| Screw diameter | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Screw speed | 1-40 | 1-38 | 1-38 | 1-37 | 1-36 |
| Center height | 1050 | 1150 | 1050 | 1050 | 1100 |
| The motor power | 18.5 | 22 | 37 | 55 | 90 |
| Output(KG/H) | 80-100 | 100-150 | 150-250 | 250-380 | 380-700 |
| Net Weight(KG) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H(m) | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
| Screw direction | Opposite and outer | ||||
Our competetive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
