Product Details:
|
| Model Number: | SJSZ65/132 | Plastic Processed: | PVC |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Place Of Original: | Shandong , China |
| Type: | Pipe Extruder | Certificate: | CE ISO9001 |
| Voltage: | 380V 50HZ | Twmperature Control: | Omron |
| High Light: | two screw extruder,twin screw extrusion machine |
||

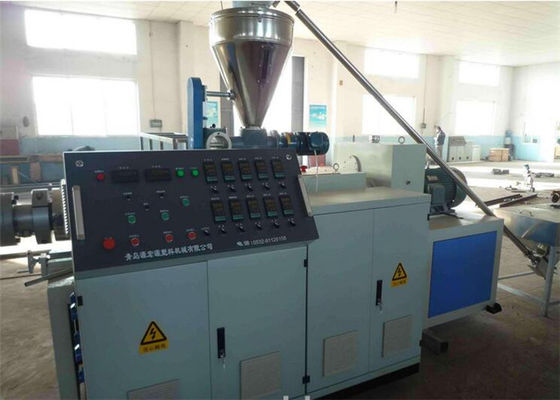

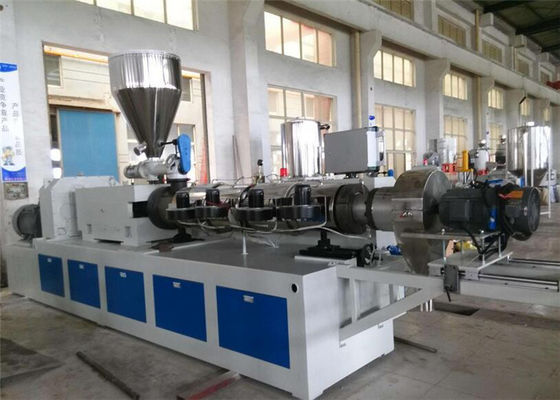

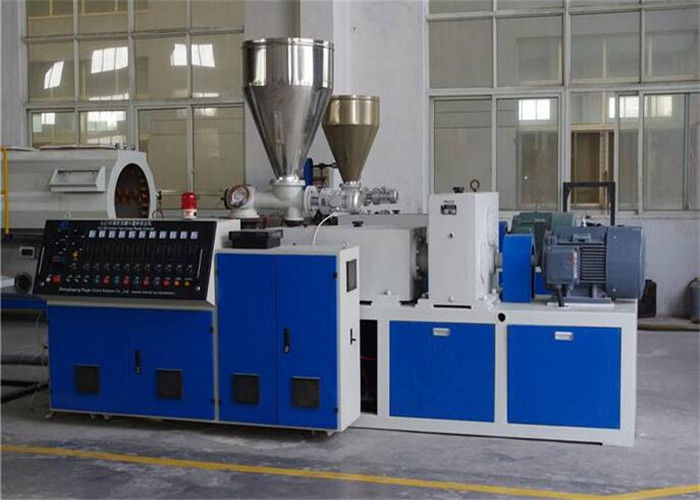

Conical Double Screw Extruder, Twin Screw Extruder , Conical Twin Screw Extruder For PVC Pipe
Quick detail
1. Φ20-800 series PVC pipe extrusion line is mainly used in manufacturing the pipe for agricultural and constructional plumbing, cable laying etc. This line is composed by conical twin screw extruder, mould, vacuum calibration tank, haul-off, cutter and stacker etc. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand. The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc. You may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device.
2. The equipment is with the reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, for example, Spiral silencing pipe and core foaming pipe according to your requirements.
ACERETECH has been adhering to "scientific innovation" business philosophy, constantly explore the innovation through stability of U-PVC pipe Production technology and actively research new technology.
Description:
1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
3. They are wildly used in furniture making,decoration,advertisement,construction and other fields. such as:
1).Exhibition cabinet, shelf in supermarket
2).Advertisement board and sign board
3).the advertisement sheet for printing, engraving, cutting, sawing
4).Architectural decoration and upholstery
5).Decoration for partition wall and shopwindows
6).Furniture:cabinet,desk,chair,wardorbe,shoecase,window,door
Conical twin screw extruder Main Technical Standards:
| Item/ model | SJSZ-45×22 | SJSZ-51×22 | SJSZ-65×22 | SJSZ-80×22 | SJSZ-92×28 |
| Screw diameter(mm) | 45/90 | 51/105 | 65/132 | 80/150 | 92/188 |
| Screw speed(r/min) | 49 | 45 | 37 | 37 | 33 |
| Max. Extruding capacity(kg/h) | 80 | 160 | 250 | 400 | 550 |
| Main motor power(kw) | 15 | 22 | 37 | 55 | 90 |
| Heating power(kw) | 11 | 18 | 24 | 36 | 85 |
Our competetive advantages:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
