Product Details:
|
| Automatic Grade: | Fully Automatic | After Sales Service: | Engineers Availiable To Service |
|---|---|---|---|
| Place Of Original: | Shandong , China | Voltage: | 380V 50HZ |
| Certificate: | CE ISO9001 | Plastic Processed: | PVC |
| Inverter: | ABB | Screw Design: | Double Screw |
| High Light: | two screw extruder,twin screw extrusion machine |
||

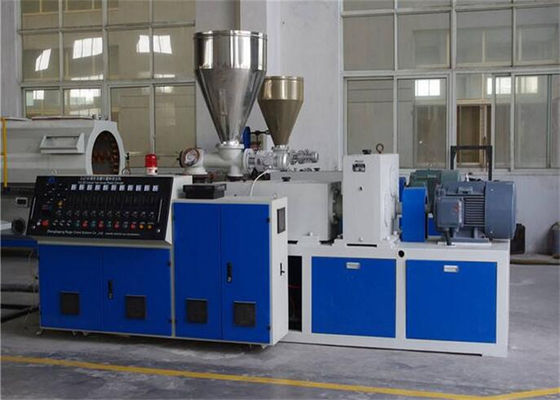

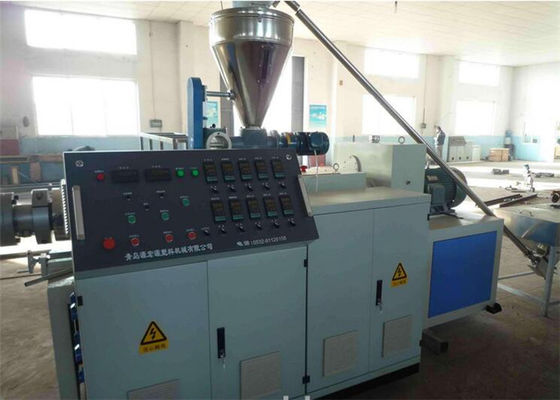

SJSZ65 / 132 Conical Twin Screw Extruder , Plastic Profile Extruder Equipment
Quick detail
1. FEATURES:
1).waterproof,fireproof,mouldproof,soundproof,hot insulation,shock absorption.
2).same processing as timber,but processing performance is much better than wood.
3).ideal substitute for wood,aluminum and composite board material.
4).surface is very smooth,rigid and not easy to scratch.
2. MAIN PARAMETERS:
Width:400mm-1220mm
Thickness:1-30mm
Density : 0.35-0.80
Output:280-400kg/h
Description:
1. This series extruder with appropriate diemould and auxiliary machine can directly convert thermoplastic especial PVC powder into pipe, plate sheet, film and profile, and also provide function of modifying and pelleting. The extruders are derived by AC motor with a thruster to steeples regulate. It is also equipped with the over-load protection and stoppage alarming system. The screw’s core and the outside of barrel is cooled by circulation of oil, it includes vacuum venting and forced feeding.
2. 1.Corner bead is made of plastic pvc/upvc material,flame retardant,environment friendly and no pollution. Convenient for construction and handle. Widely used in balcony,stairs,inside and outside wall corner,sill,joint of gypsum board,arched windows and doors,etc. High intensity,adequate combination with putty;corner bead and wall are connected together completely. Replace corner beads made of metal,wood,PMMA,etc. material,reduce cost . Completely change the traditional construction engineering's manual construction method,it is an important change in the construction field.
Conical twin screw extruder Main Technical Standards:
| Conical twin-screw extruder | Diameter scope (mm) |
Motor(KW) | Max. Capacity (KG/H) |
Max. Lineal speed(m/min.) |
| SJZ51/105 | 16-40Dual | 18.5 AC | 120 | 10 |
| SJZ65/132 | 20-63Dual | 37 AC | 250 | 15 |
| SJZ51/105 | 20-63 | 18.5 AC | 120 | 15 |
| SJZ65/132 | 50-160 | 37 AC | 250 | 8 |
| SJZ65/132 | 63-200 | 37 AC | 250 | 3.5 |
| SJZ80/156 | 160-315 | 55 AC | 350 | 3 |
| SJZ92/188 | 75-160Dual | 110 AC | 800 | 6 |
| SJZ92/188 | 315-630 | 110 D | 800 | 1.2 |
| ATP130/26 | 560-800 | 160 DC | 1100 | 1.3 |
Our competetive advantages:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
