Product Details:
|
| Condition: | New | Screw Design: | Double Screw |
|---|---|---|---|
| After-sales Service: | Engineers Availiable To Service | Automatic Grade: | Fully Automatic |
| Voltage: | 380V 50HZ | Warranty: | 12 Months |
| Inverter: | ABB | Application: | Pipe |
| High Light: | two screw extruder,twin screw extrusion machine |
||
Hot Sale Twin Screw PVC Pipe Extrusion Line , Double Screw Extruder Plastic Pipe Production Line
Quick detail
1. First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing systerm. Controlled independentle umitary sctrcure twin pipe hauling mechanism anf synchronous cutting device. Optional length set and accurate adaption stacker.
2. Pipes made from PVC are usually manufactured by extrusion.This process starts by feeding plastic material from a hopper into the barrel of the extruder.The material is gradually melted by the mechanical energy generated by turning screws and by heaters arranged along the barrel.The molten polymer is then forced into a die,which shapes the polymer into a pipe that hardens during cooling.
Description:
1. Product application of pvc pipe making machine
PVC pipe extrusion line is mainly used in making UPVC and PVC pipes with various tube diameters and wall thickness. Pipe is applied to agricultural and construction water supply and drainage, overhead or underground wire and cable.
2. Pvc plastic twin pipe extrusion line with various diameter and wall thickness, from 16-800mm.

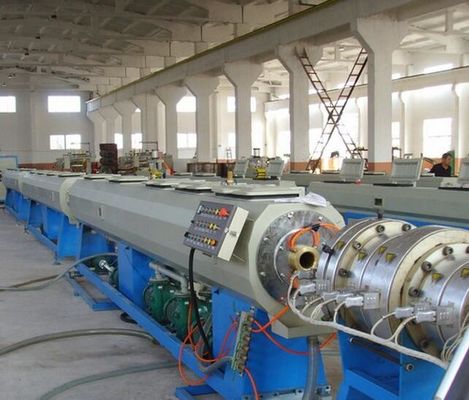

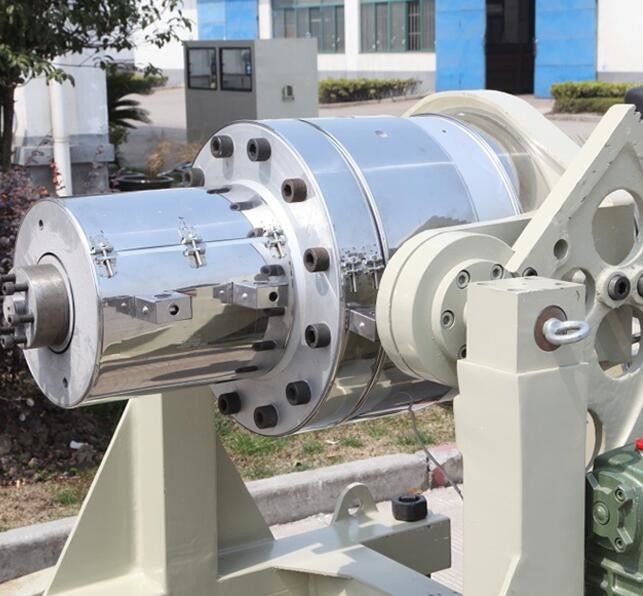

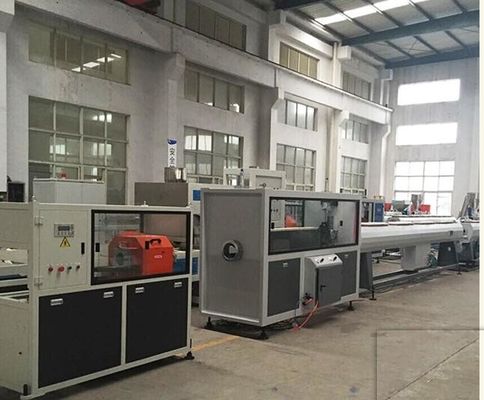

the plastic pipe production line mainly includes twin screw extruder, pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.the extruder is specially designed for producing variours pipe.
3. Pipe size range ø20-50mm
Extruder SJSZ51/105 SJSZ65/132
Extruder power 22kw 37kw
Extrusion capacity135kg/h 250kg/h
Max. production speed120kg/h
Main Technical Parameters:
| Extruder Model | SJSZ-51X105 | SJSZ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe Diameter | 16-63mm | 16-63mm |
| Production Speed | 12(m/min) | 12(m/min) |
| Max.Output | 160(kg/h) | 220(kg/h) |
Application:
PVC pipes are widely used for drinking water, irrigation, plumbing, casing conduits, industrial applications,etc.
We manufacture competitive and reliable plastic extrusion machinery for pipes using PVC. The machine is well manufactured with superior technique to provide you the best of output with very maximum utilization of resources.
Our advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
