Product Details:
|
| Model Number: | SJSZ65/132 | Condition: | New |
|---|---|---|---|
| Screw Design: | Double Screw | Certificate: | CE ISO9001 |
| After-sales Service: | Engineers Availiable To Service | Warranty: | 12 Months |
| Inverter: | ABB | Machine Color: | Bule Or According To Customer's Requirement |
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||
PVC Double Screw Pipe Extrusion Line , PVC Pipe Extruder Production Line
Quick detail

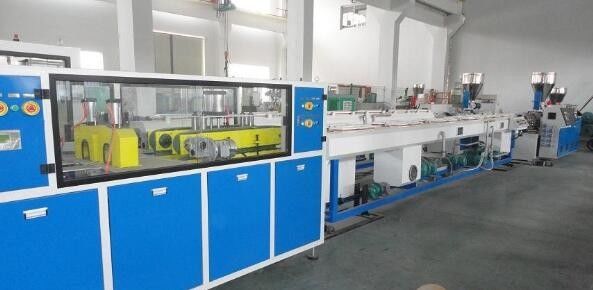

1. 1)This PVC double pipe production line mainly includes: Extruder, mould, vacuum calibration tank, spray cooling tank, haul-off, cutter, stacker.
2)It is used for water supply, drainage, air transfering, construction, etc
3)Their wall thickness is different according to different pressure standard.
2. PVC two pipes extrusion line include KBL55/113 conical twin-screw extruder, mould, vacuum forming tank, double haul off and cutting machine, stacker. Material is PVC, best production range is Φ 16-Φ 63mm. It has the advantage of high capacity, simple operation, high degree automation, automatic fault alarm and simple maintenance, long working time, adopts ABB inverter and RKC temperature controller.
Description:
1. PVC PE PP PPR Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
2. Process Flow:

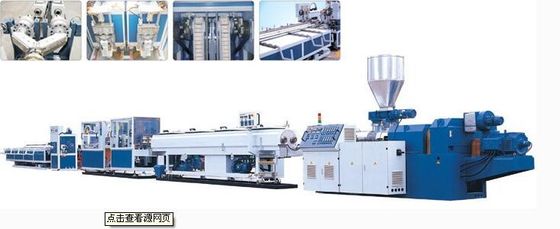

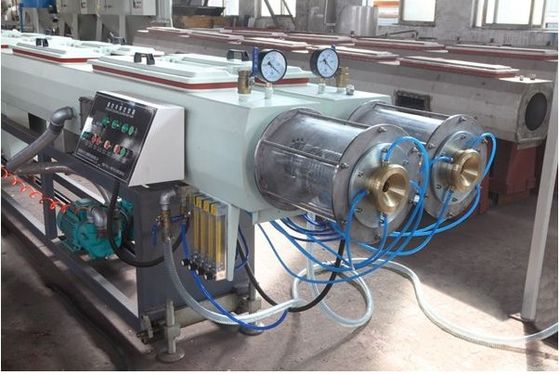

Raw material+additive→mixing→conveying feeding→force feeding→conical double screw extruder→one mold two pipes mould→calibrator→double spray vacuum cablibration tank→ink printer→double belt haul-off→double uplift cutter→double pipe rack→finished product inspecting and packing.
3. PVC Pipe machine is mainly used in the manufacture of the plastic PVC pipes with various diameters (from 16-630mm)and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc. It is composed of the conical twin-screw extruder, vacuum calibrating and cooling tank, haul off unit, cut off unit and stacker. The unit is of the reliable performance and high production efficiency.
Main Technical Parameters:
| model | SJSZ51 | SJSZ55 | SJSZ65 | SJSZ80 | SJSZ92 |
| Screw diameter | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Screw speed | 1-40 | 1-38 | 1-38 | 1-37 | 1-36 |
| Center height | 1050 | 1150 | 1050 | 1050 | 1100 |
| The motor power | 18.5 | 22 | 37 | 55 | 90 |
| Output(KG/H) | 80-100 | 100-150 | 150-250 | 250-380 | 380-700 |
| Net Weight(KG) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H(m) | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
Contact Person: Ms. AORUI
Tel: 18561633106
Fax: 86-532-82282528
