Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65/105 |
|---|---|---|---|
| Specification: | CE ISO9001 | Automatic Grade: | Fully Automatic |
| Condition: | New | Application: | Water Supply Pipe |
| Screw Number: | Double Screw | Place Of Original: | Shandong , China |
| High Light: | plastic extrusion machine,plastic production line |
||

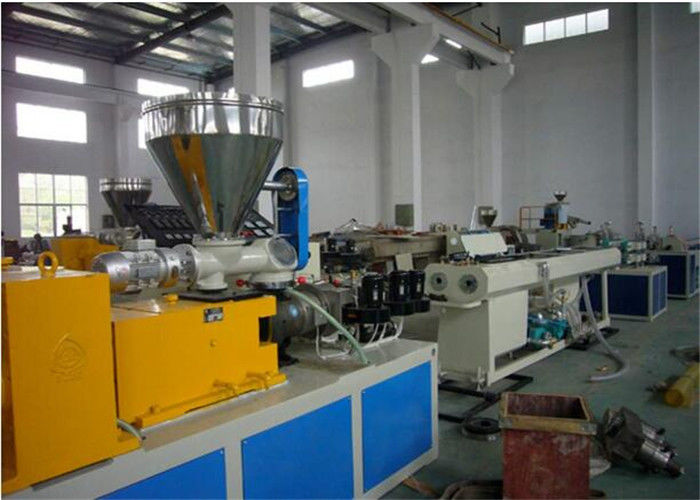

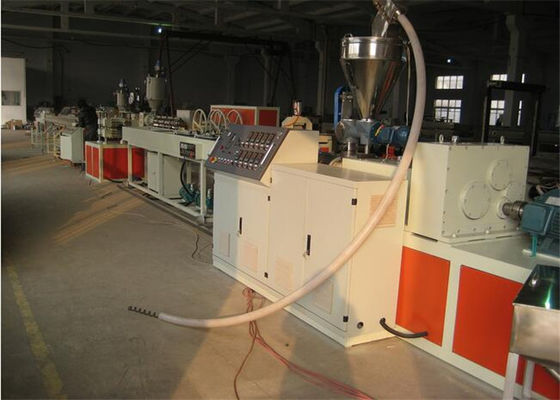

PVC Pipe Extruder Machine , CE Certificate PVC Double Screw Pipe Extrusion Line
Quick detail
1. one die double output, it greatly increase the productivity, meantime, it reduce the cost of machine, power consumption, save space of workshop.Speed of extruding, haul off are controlled by variable frequency inverter, stepless adjustingspeed and save power consumption.
2. Water cooling tank are made of high qulity stainless steel, no rusty, longer lifetime. Temperature controlled by intelligent temperature controller, high precision, automatic control, save labor and easy to operate.
Description:
1. Single screw extruder and haul-off unit have applied imported A/C inverter. Both vacuum pump and driving motor have applied excellent products.
2. The drawing machine includes two-clawtype ,three-claw type , four-claw type , sic-claw type , eight-claw type, etc. Saw cutting or planet cuttting can be applied , it is additionally applied with length measuring mter and thickness increasing device, the property of machine group is reliable , the production efficiency is high.
3. Advantages of UPVC pipe manufacturing machinery made by sevenstars:
1. All main electric elements are world famous brand, like Siemens, FUJI, ABB and Schneider
2. Superior quality screw and barrel which are designed with CAD and processed by advanced CNC lathe which can make sure scientific inner structure and good plasticizing effect
3. Equipped with best gear box in China which can make sure long service life.
4. Optimized design to make lower electric consumption and increase efficiency
5. Mature technology, rich experience enables us to lower the production cost and provide most economical price to our customers.
Main Technical Parameter
| Main extruder | SJSZ-51/105 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 |
| Main motor power(KW) | 22 | 37 | 55 | 110 |
| Pipe diameter(mm) | 16-63mm | 75-160mm | 200-400 | 400-630 |
| Hauling speed(m/min) | 0.8-10 | 0.5-5 | 0.3-4 | 0.2-3 |
| Max. Capacity(kg/h) | 120 | 260 | 400 | 600 |
| Total power(KW) | 89 | 95 | 135 | 255 |
Application:

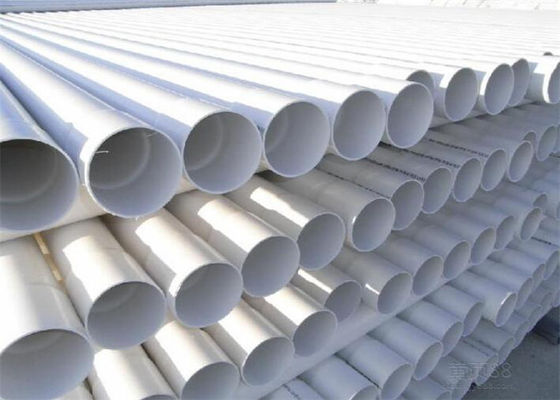

This machine is mainly used to produce agricultural water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This unit adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
Our competetive advantages:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
