Product Details:
|
| Brand Name: | Aorui | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Warranty Time: | 12 Months | Payment Terms: | TT Or L/C |
| Temperature Controller: | Omron | Motor: | Siemens |
| Frequency Control: | ABB | ||
| High Light: | plastic extruder machine,plastic production line |
||

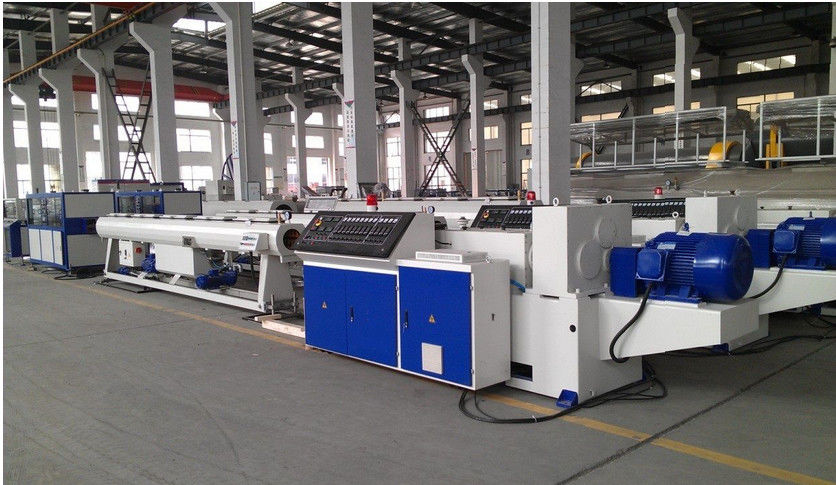

PVC Pipe Extrusion Machine , PVC Plastic Pipe Production Line , PVC Pipe Making Machine
Quick detail
1. Features of pvc pipe machine: The extruder and the haul-offs adopt the imported AC frequency control device. The vacuum pump and the electric vehicle motor empoly the superior goods. The haul-offs has the traction modes such as two-caterpillars, three-caterpillars, four-caterpillars, five-caterpillars and so on. It is additionally attached with measuring apparatus and the intensifying device. The unit is reliable and efficient production.
2. Below is Flow
Description:
1. Plastic PVC pipe making machine /pvc pipe extrusion line is a kind of special equipment for extruding of PVC powder.With different sorts of molds and auxiliary machines,it can produce all sorts of PVC plastic pipe material,profiled material,plate material,sliced material and granulation.The screw has applied oil cooling system.Barrel is cooled by special wind cooling system.The system has applied special computer control.
2. specially designed for the PVC powder extruding, it combined use with the PVC pipe production line, PVC profile production line, PVC sheet production line; It also can be used for WPC profiles extruding.
screw structure also can re-designed accoring to customer's detail raw material and the purposes.

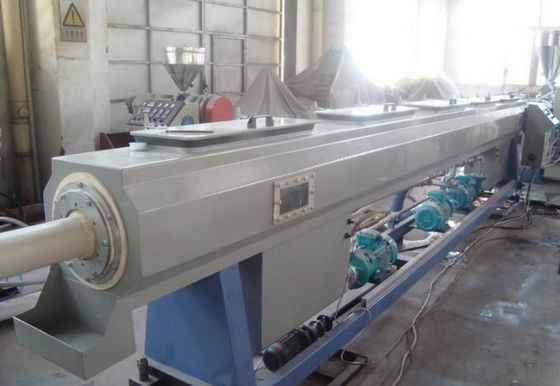

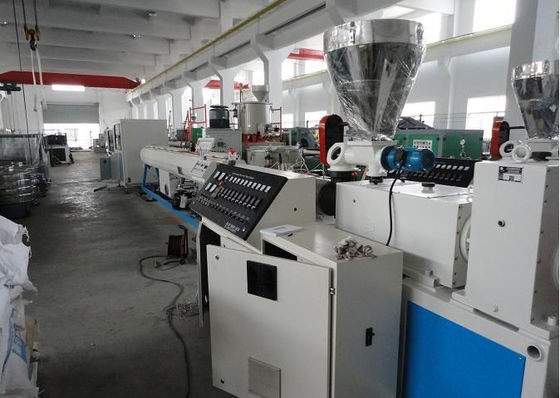

3. The whole PVC pipe making machine include: Material loader, SJSZ series conical twin screw extruder, pipe mould, vacuum calibration tank, haul-off machine, cutter and stacker; pipe printer and PVC Pipe Belling machine are optional as detail requirement. SRL-Z series PVC Powder hot/cooling mixing unit, SWP series Plastic Crusher, SMF series Plastic Milling Machine/ Pulverizer are necessary auxiliary equipments.
Main Technical Parameter
| Diameter scope (mm) | 16-40 | 20-63 | 20-63 | 50-160 | 63-200 | 160-315 | 315-630 | 560-800 |
| Conical extruder | SJSZ51/105 | SJSZ65/132 | SJSZ51/105 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 | SJSZ105/216 |
| Extruder Power(KW) | 18.5 AC | 37 AC | 18.5 AC | 37 AC | 37 AC | 55 AC | 110 DC | 160 DC |
| Max. capacity (KG) | 120 | 250 | 120 | 250 | 250 | 350 | 800 | 1100 |
| Max. Lineal speed (m/min..) | 10 | 15 | 15 | 8 | 3.5 | 3 | 1.2 |
Advantage:
- world famous brands major parts: SIEMENS motor, ABB/FUJI/LG/OMRON inverters, SIEMENS/Schneider contactors, OMRON/RKC temperature controllers, DELTA/SIEMENS PLC system
- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery
Our competetive advantages:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
