Product Details:
|
| Place Of Original: | Shandong , China | Certificate: | CE ISO9001 Certificate |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Motor: | Siemens |
| Payment Terms: | TT Or L/C | Trade Mark: | Aorui |
| Condition: | New | Raw Material: | PVC |
| High Light: | plastic extruder machine,plastic extrusion machine |
||

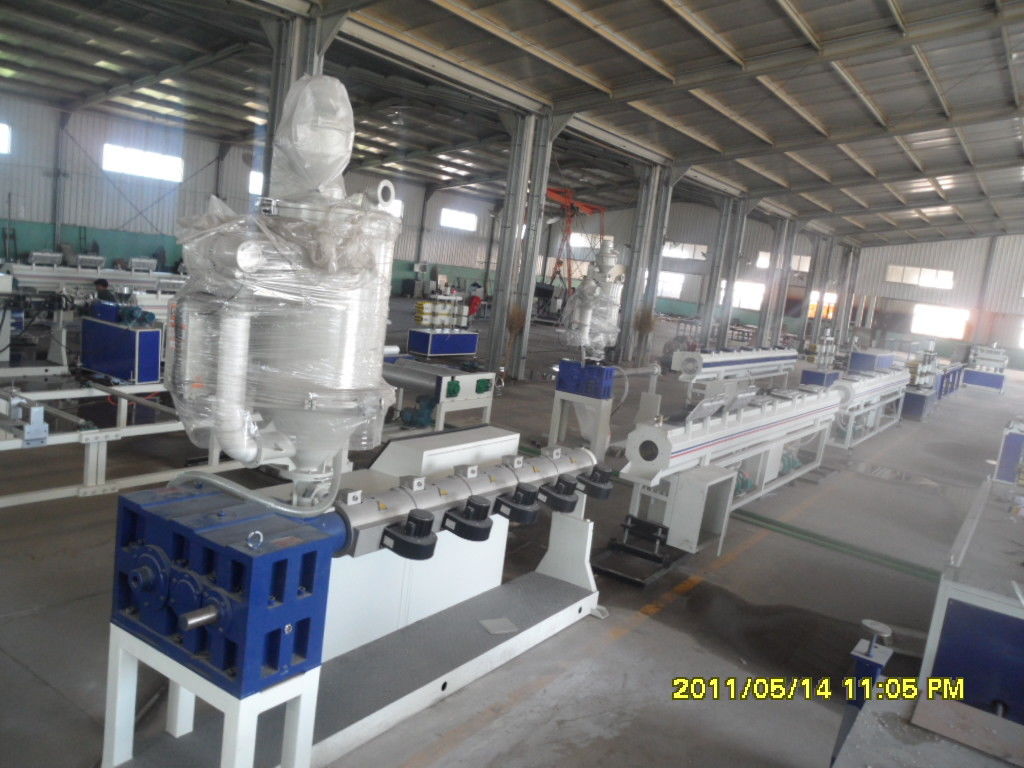

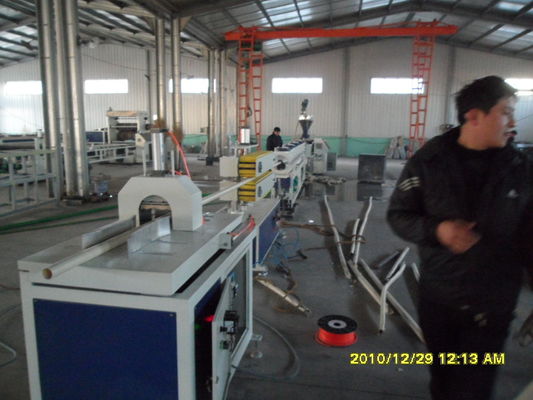

GF Series Plastic PVC Pipe Extrusion Line , PVC Pipe Production Line For Water Supply
Quick detail
1. PVC pipe making machine is equipped with conical twin screw extruder or parallel twin screw extruder, adopt Optimized spider die with chrome-plating, ensure the melt plasticization homogenous and distribution uniform.
2. Equipped Stainless steel Vacuum calibration sleeve with water lubrication ring, twin-chamber vacuum tank with spraying cooling and semicircular Nylon support, to ensure fast calibration, increase the production capacity and lower the operation. These designs are especially good for big diameter pipe production and high speed production.
Description:
1. Produce process
PVC powder + additive →mixing →spring feeding →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine →cutting machine →stacker
Customer mix the raw material (PVC powder, Caco3, Ti2 and so on additives ) into extruder, after plastify in extruder, material went into mould, the mould and vacuum tank form the material into pipes, after cooling tank, haul-off and cutter, PVC pipes are produced well on stacker.
2. This Pipe Extruding Machine can be used to produce auto brake oil tube, fuel carrier tube and some other thin wall thickness pneumatic pipes. It includes main extruder, extruding die and calibration system, haul off unit, and auto winder.
1 capacity: 25-65kgs/hour;
2 output product size range: 4-18mm;
3 It can process multi-materials like PU, PE, EVA, PVC etc.
4 Oversea service, installation, staff trainning and technical support.
Main Technical Parameter
| Diameter scope (mm) |
16-40 |
20-63 |
20-63 | 50-160 | 63-200 | 160-315 | 315-630 | 560-800 |
| Conical extruder | SJSZ51/105 | SJSZ65/132 | SJSZ51/105 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 | SJSZ105/216 |
| Extruder Power(KW) | 18.5 AC | 37 AC | 18.5 AC | 37 AC | 37 AC | 55 AC | 110 DC | 160 DC |
| Max. capacity (KG) | 120 | 250 | 120 | 250 | 250 | 350 | 800 | 1100 |
| Max. Lineal speed (m/min..) | 10 | 15 | 15 | 8 | 3.5 | 3 | 1.2 |
Advantage:
- world famous brands major parts: SIEMENS motor, ABB/FUJI/LG/OMRON inverters, SIEMENS/Schneider contactors, OMRON/RKC temperature controllers, DELTA/SIEMENS PLC system
- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery
Our competetive advantages:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
