Product Details:
|
| Brand Name: | Aorui | Application: | Drain Pipe |
|---|---|---|---|
| Warranty: | 12 Months | Place Of Original: | Shandong , China |
| Product Name: | Corrugated Pipe | After-sales Service: | Engineers Availiable To Service |
| Certificate: | CE ISO9001 | Raw Material: | PE |
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||

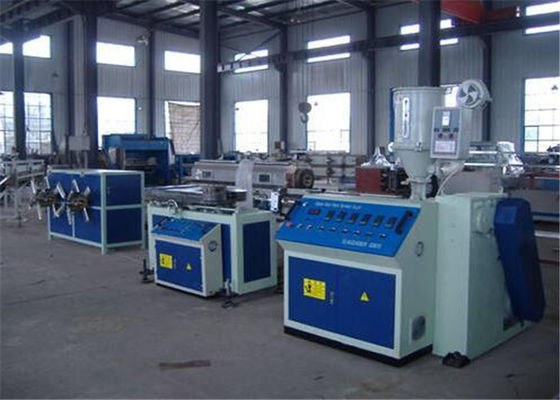

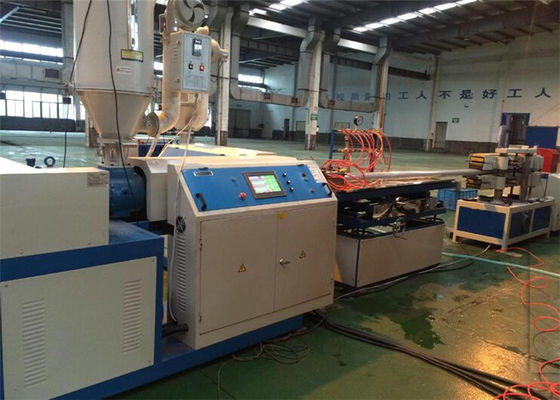

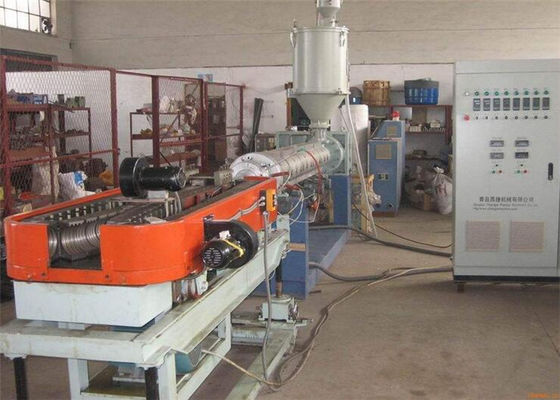

Corrugated Double Wall Pipe Extrusion Line , PE Corrugated Pipe Production Line
Quick detail:
1. High-performance corrugate pipe extrusion line made by our company can achieve outstanding performance through adopting numerous innovative technology.
2. It is fully computer controlled,automatic production(dia200-600). It has features of high and stable output capacity ,and highly automatic operation. According to the material situation ,for HDPE,you can choose high efficient single screw extruder.For PVC ,you can choose concial twin screw extruder or parallel twin screw extruder. The forming system of this line consists of mould and corrugator.
Description:
1. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.
2. Good components: Siemens Beide main motor, ABB inverter, Eurotherm DC regulator, Siemens & Schneider low voltage electrics, Omron temperature controller.
3. Plastic double-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.
The main technique parameter :
| Pipe diameter range(mm) | 4.5-9 | 9-32 | 32-50 | 63-110 |
| Main machine model | GB-SJ45 | GB-SJ50 | GB-SJ65 | GB-SJ75 |
| Main machine l/d | 28:1 | 28:1 | 28:1 | 28:1 |
| Production capacity kg/h | 10 | 40 | 80 | 150 |
| Main motor capacity kw | 7.5 | 11 | 18.5 | 37 |
| Molding machine capacity kw | 1.5 | 1.5 | 2.2 | 6 |
| Pair of mould | 45 | 45 | 60 | 72 |
| Cooling mode | Water cooling or fan cooling or both type | |||
| Production (m/min) | 6-10 | 8-12 | 8-15 | 8-15 |
| Metering mode | inducting mode | |||
| Coiling machine mode | Automatic or Manually-operated | |||
Product Application
Competitive Advantage:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
