PP PE PVC Wood Plastic Plastic Board Extrusion Line Construction Template Extruder

China PP PE PVC Wood Plastic Plastic Board Extrusion Line Construction Template Extruder supplier
PP PE PVC Wood Plastic Plastic Board Extrusion Line Construction Template Extruder supplier PP PE PVC Wood Plastic Plastic Board Extrusion Line Construction Template Extruder supplier PP PE PVC Wood Plastic Plastic Board Extrusion Line Construction Template Extruder supplier

Large Image :  PP PE PVC Wood Plastic Plastic Board Extrusion Line Construction Template Extruder

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ92/188

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Certificate: CE ISO9001 Brand Name: Aorui
Automatic Grade: Fully Automatic Voltage: 380V 50HZ
After-sales Service: Engineers Availiable To Service Model Number: SJSZ92/188
Plastic Processed: PVC Application: Plastic Board



PP PE PVC Wood Plastic Building Board Extrusion Line , Construction Template Extruder





QUICK DEATIL :



1. This is our latest updated products. It's continuously improved on the basis of requirements and feedbacks from our customers and combined with foreign advanced technology. It shows superior performance, high reliability and practicality with its compact structure, advanced configuration and outstanding output in the production of 5-20mmthick, high-qualified WPC foam board.

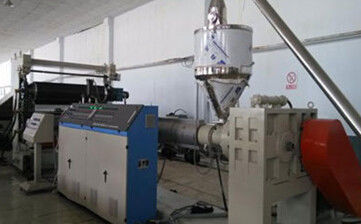

2. This production line composes of conical twin screw extruder, plate dies, forming table, hauler and cutter. The extruder adopts the specially designed screws, improving the integration and plasticizing between PVC and wood powders, and enhances the rigidity of products significantly. The products enjoy a promising future for applications.







Description:



1. The production line of electrical parts are used in the world famous brand products, combined with our company for many years plate equipment manufacturing technology and experience to make it more reliable and complete. Its production product surface smooth, bright and clean, size of the error is small, with a can nail can be planed, corrosion-resistant, fire retardant, and many other advantages.



2. Product thickness 3-30mm
Core layer extruder model SJSZ-80×156
Double layer extruder model SJSZ-65×132
Maximum extrusion output 400Kg/200Kg/h
Main motor power 75KW/37KW
Dimension L × W × H =21m×4m×2.6m



3. Process Flow of wood plastic board extrusion line:

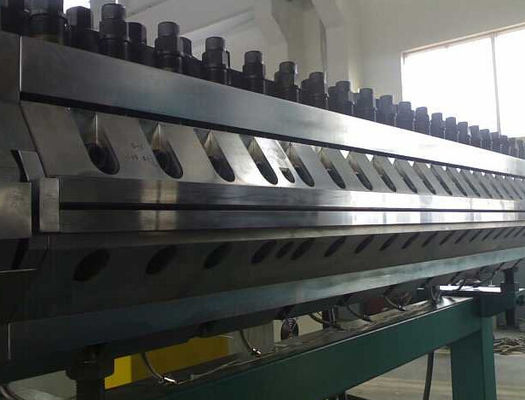

Raw material+wood power+additive→mixing → granulating → conical double screw extruder → sheet extrusion mould →

cooling molding die → vacuum calibration tank → belt haul-off → cutter → rack → finished product inspecting&packing







Applications:



This Pvc construction template extrusion line can produce high hardness, environmental protection, low cost plastic building templates, replacing building steel and bamboo building template, is a new recyblable environmentally products.

Pvc construction template has the advantage of low cost, light weight, continuous use 10~30 times,environmental building tamlplate, waste material can be recycled ect.









Specifications:



Model   CV-MSB80/156 CV-MSB92/18B
Screw dia. MM 80/156 92/188
Screw quantity Piece 2 2
Rotational speed r/min 1-38 1-32.9
Main extruder power KW 55 110
Heating power(approx) KW 36 45
Extrusion output Kg/h 100-400 400-500
Max. width of product mm 600 800 1000 1250
Cooling water m3/h 12 13 15 18
Compressed air m3/min 0.5 0.6 0.8 1









Competitive Advantage:



experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
