Product Details:
|
| Delivery Time: | 30 Days | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New | Payment Terms: | TT Or L/C |
| Temperature Controller: | Omron | Frequency Control: | ABB |
| Motor: | Siemens | Screw Number: | Two |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||

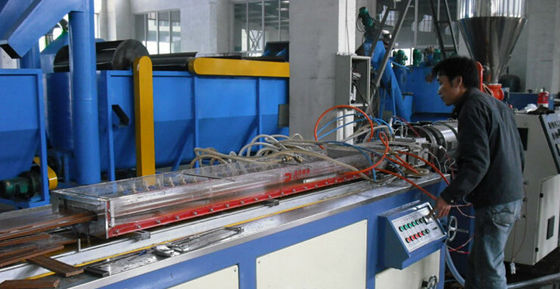

PVC Plastic Profile And Plate Extrusion Line , PVC Profile Extrusion Machine
Quick detail:
1. This production line is composed of conical twin-screw and barrel, vacuum shaping table, haul-off, cutter and material tumbling frame,and also coordinated with different profile break-scetion and mould to produce PVC door and window profiles, foamed abnormal profiles, decoration plate, profile and multi-hole wire plastic products etc.
2. Process Flow of pvc wpc profile/ panel production line:
Raw material+wood power+additive→mixing → granulating → conical double screw extruder → sheet extrusion mould →
cooling molding die → vacuum calibration tank → belt haul-off → cutter → rack → finished product inspecting&packing
Description:
1. This machine uses the special deisgned screw and barrel ,die and extrusion process to produce plastic and wood products. The series of products are: One step thick plastic and wood plate extrusion machine , One step plastic and wood decoration plate extrusion machine , plastic and wood pelletizing machine and different kinds of plastic and wood dies.
2. The machine can produce PE PP or PVC and wood profile products. These products are mainly applied for making pallets , packing cases , floors , wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max,50-75%. This machine can produce the PP , PE , PVC , ABS . PS and etc.
3. The product surface is co-extruded PVC,ASA,PMMA materials, which is suitable for complex weather conditions, old-resistance.Beautiful appearance, colorful, smooth lines, strong 3D effect, simple and easy installation, no seamless between walls.Moisture-proof, water-proof, corrosion-resistance, easy maintenance, easy to wash.
Applications:
The series PVC profile production line are widely used in the production of plastic profile,such as below:
1.Window profile
2.Doorframe
3.PVC angle bead
4.Wire casing
5.Plastic ceiling
Specifications:
| Model |
SWWQG65/132- SWWQGC45/90 |
SWWQG65/132-SWWQG50/25 |
| Max Material Width(MM) | 400 | 400 |
| Pulling Force(KN) | 1000 | 1000 |
| Haul-off Speed(M/MIN) | 1-5 | 1-5 |
| Haul-off Height((MM) | 100 | 100 |
| Machine Power(KW) | 75 | 75 |
Competitive Advantage:
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
