PLC control Double Screw Plastic Profile Extrusion Line 380V 50HZ

PLC control Double Screw Plastic Profile Extrusion Line 380V 50HZ
PLC control Double Screw Plastic Profile Extrusion Line 380V 50HZ PLC control Double Screw Plastic Profile Extrusion Line 380V 50HZ PLC control Double Screw Plastic Profile Extrusion Line 380V 50HZ PLC control Double Screw Plastic Profile Extrusion Line 380V 50HZ

Large Image :  PLC control Double Screw Plastic Profile Extrusion Line 380V 50HZ

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ80/156
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

PLC control Double Screw Plastic Profile Extrusion Line 380V 50HZ

Description
Raw Material: PVC WPC Application: Wall Panel
Automatic Grade: Fully Automatic After-sales Service: Engineers Availiable To Service
Certificate: CE ISO9001 Voltage: 380V 50HZ
Brand Name: Aorui Screw Design: Double Screw
High Light:

Plastic Profile Extrusion Machine

,

Plastic Profile Extruder

PVC Wall Panel Extrusion Line , PVC WPC Profile Extruder , PVC WPC Plastic Profile Extrusion Machine





Quick detail:



1. Features:

* PLC control system is available

* All electrical components adopts famous brand : OMRON, ABB, SIEMENS etc

* Over current protective of motor

* With online protection film wrapping device



2. Technical profile for industry

* Conical twin-screw extruder is perfect,with pvc powder or granular material.

* Mould designed by different kinds of profile customer required.

* supply formula guide and staple raw material purchase.







Description:

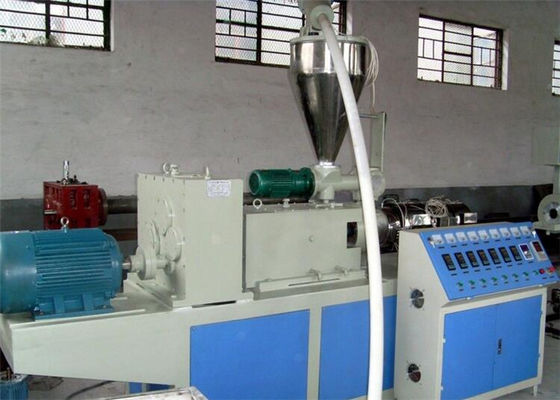

1. This production line is composed of conical twin screw extruder, vacuum shaping table, drawer, cutter, pilling frame, and also coordinated with different profile break-section and mould to produce PVC door&window profile, foamed special shaped materials, decoration plate material, profile and multi-hole wire plastic products etc.



2. SJZ series cone twin-screw extruders are specially for various PVC powder materials. Mated with different moulds and auxiliary machinery, they can produce various PVC plastic pipes, profile materials, board materials, sheets, bars, and granulating materials.


3.The screw adopts oil cooling system while the barrel adopts air cooling system. The system is controlled by dedicated computers. According to customer requirements, most reasonable screws can be configured to achieve optimal plasticization and logistic quality.

4.All the screws are processed by high-precision special NC screw milling machines to ensure high consistency extruding performance. The most advanced variable pitch and depth screw design technology has been firstly introduced, making screw shearing and compression milder and itself more appropriate for practical requirement. The special design of distribution cabinet enlarges thrust bearing and adopts original bearings, guaranteeing the drive’s long service life and the bearing of larger extrusion capacity.

5.The electrical appliance system maximally adopts imported original parts and has many failure alarm functions, reducing failures and facilitating troubleshooting. The special design of cooling system enlarges the heat radiation area and quickens the cooling with the temperature precision up to ±1°C.







Applications:



Wall cladding decoration, wall cladding protection, is widely used for villa, terraced houses, shops, factory building, schools,apartments, office buildings,etc.





Specifications:



Specifications SJZ45 SJZ51 SJZ55 SJZ65 SJZ80 SJZ92
Diameters of screws(mm) 45/90 51/107 55/110 65/132 80/156 92/188
Speed of screws(r/min) 1-45.5 1-42 1-40 1-38 1-36.9 1-34.7
Effective length of screws(mm) 989 1070 1200 1440 1800 2500
Main motor power(Kw) 15 18.5 27 37 55 110
Barrel heating power(Kw) 11.5 16 18 24 36 88
Production capacity(kg/h) 80 120 150 250 360 1000
Center height of machine(mm) 1000 1000 1000 1000 1000 1000
Net weight(kg) 3000 3200 3500 4000 5000 5500







Competitive Advantage:



Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
