PPR Hot / Cold Water Plastic Pipe Manufacturing Machine Tube Production Line

Certification
China QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1 certification
Customer Reviews
The sales have good service, it brings me a good experience. We import 5 sets extruders from this company, the extruders have good quality and long service life. I'd like to cooperate with this company for long time.

—— Andrew

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

I'm Online Chat Now

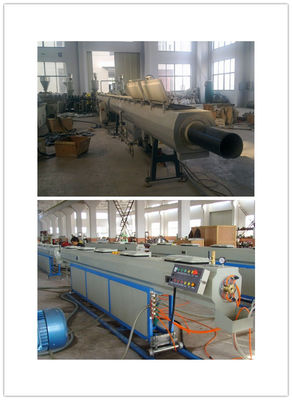

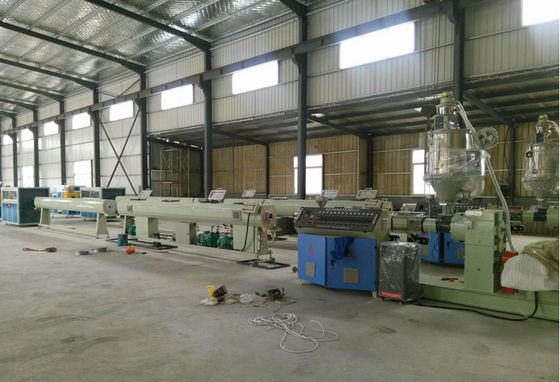

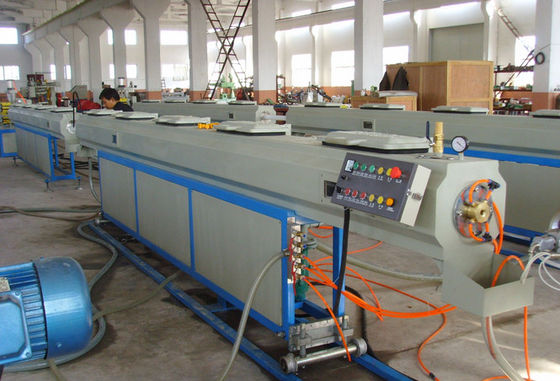

PPR Hot / Cold Water Plastic Pipe Manufacturing Machine Tube Production Line

PPR Hot / Cold Water Plastic Pipe Manufacturing Machine Tube Production Line
PPR Hot / Cold Water Plastic Pipe Manufacturing Machine Tube Production Line PPR Hot / Cold Water Plastic Pipe Manufacturing Machine Tube Production Line PPR Hot / Cold Water Plastic Pipe Manufacturing Machine Tube Production Line

Large Image :  PPR Hot / Cold Water Plastic Pipe Manufacturing Machine Tube Production Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

PPR Hot / Cold Water Plastic Pipe Manufacturing Machine Tube Production Line

Description
Model Number: SJ65/33 Certificate: CE ISO9001
Voltage: 380V 50HZ Condition: New
After-sales Service: Engineers Availiable To Service Brand NAME: Aorui
Motor: Siemens Weight: 8-20T
High Light:

Plastic Extruding Machine

,

Plastic Extruder Machine



PPR Hot And Cold Water Pipe Extrusion Line , PPR Pipe Tube Production Line





Quick detail



1. It is widely used in producing ppr, pe water-supply pipes. The extruder of ppr pipe machine adopt mixing structure screw, which can provide good plasticization.



2. PPR pipe production line is consist of SJ series extruder, mold, vacuum tank, spraying cooling tank, haul-off, no-dust cutting machine, stacker. It is apply to produce PPR, PE-RT cold and hot water supply pipe. Equipped other extruder, different mold, it could produce PPR double-layer pipe, muti-layer pipe, PPR fiberglass reinforce pipe.









Description:



1. High efficiency single screw extruder. It can produce ppr pipes. The pipe diameter range:16-160mm or customes request. The pvc pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.



2. Process flow of PPR pipe making machine line



Raw material + additive → mixing → vacuum feeder → hopper dryer → single screw extruder → marking line coextruder →

mould and calibrator → vacuum calibration tank → cooling tank → haul off machine → printer → cutting machine → pipe storage shelve



3. The high efficient single screw extruder is designed with HYPET technology, The die head is spiral type. it is suitable for the high output type. The electric components are made in RKC Japan, contacts are Siemens . AC control is ABB or DELTA type. The barrel is made of 38CrMoAlA. Nitrated, feeding zone is special alloy. Screw is made of 38CrMoAlA, Nitrated hardness is HV900-1000. The cutting system is warfless in advance technology. The technology of PPR pipe processing could be offered after confirmation of the order free of charge.









Main Technical Parameters



. (mm) Extruder Mark-line extruder

Speed

(m/min)

Max output

(kg/h)

Total power

(kw)

Overall dimension

(LxWxH) m

20-63 SJ-50/33 SJ-25/25 0.2-16 120 65 36x2.2x2.5
20-110 SJ-65/33 SJ-25/25 0.2-20 220 115 56x2.2x2.5
63-160 SJ-75/33 SJ-25/25 0.2-6 300 160 50x2.2x2.8
75-250 SJ-80/33 SJ-25/25 0.2-5 400 200 52x2.2x3.0
160-400 SJ-90/33 SJ-25/25 0.2-2 550 250 66x2.2x3.0
200-500 SJ-100/33 SJ-25/25 0.1-1 700 300 70x2.3x3.5
355-630 SJ-120/33 SJ-30/25 0.1-1 900 420 72x2.3x3.5
400-800 SJ-135/33 SJ-30/25 0.08-0.8 1200 500 76x2.5x4.0
630-1200 SJ-150/33 SJ-30/25 0.05-0.5 1400 650 80x4.0x6.0
800-1600 SJ-150/33 SJ-30/25 0.05-0.5 1500 850 80x5.0x6.







Application:



This line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foamed pipe, etc, it can also produce PP, PE, ABS, PPR, PEX, silicon core pipe and pipe material of other material.





Why choose us:



Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
