Product Details:
|
| Brand Name: | Aorui | Screw Design: | Single Screw |
|---|---|---|---|
| Place Of Original: | Shandong , China | Plastic Processed: | PPR |
| Condition: | New | After-sales Service: | Engineers Availiable To Service |
| Warranty: | 1 Year | Motor: | Siemens |
| High Light: | Plastic Extruding Machine,Plastic Extruder Machine |
||
China Manufacture 16 - 63mm PE PPR Water Pipe Extrusion Line , PPR Water Supply Pipe Machine
Quick detail
1. Features of product:
1. Equipped ith polyolefin purposed single-screw extruder; it has the characters of quick extruding, high efficiency and so on.
2. The specially designed co-extrusion die head is reasonable in flow channel, smooth in both internal and external walls, and small in internal stress.
3. Pipe diameter is among 20-160mm and production speed reaches to 18m/min.
4.One unit serves several purposes. It can produce common PP-R, Nanometer anti-bacteria pipe, PE-RT and PE-X.
5. If added one co-extrusion engine and die on original base, it can produce PP-R fiberglass reinforced composite pip
2. Process line:
Raw material +master batches → mixing→vacuum feeding → material dryness → single screw extruder → single screw extruder → single screw extruder → color string extruder → spiral co-extrusion mould → calibrator → spray vacuum calibration tank → spray cooling water tank → spray-code printer → belt haul-off → no-dust cutter → pipe rack→finished product inspecting &packing
Description:
1. PPR/PE pipe production/extrusion line/PPR pipe making machinery is used to produce PPR/PE pipes for cold and hot water supply in house.

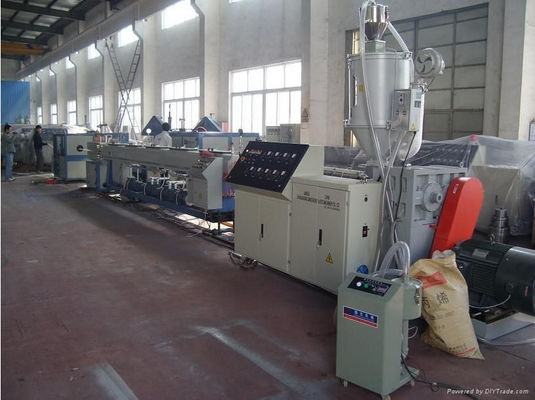

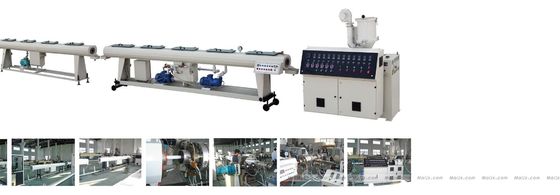

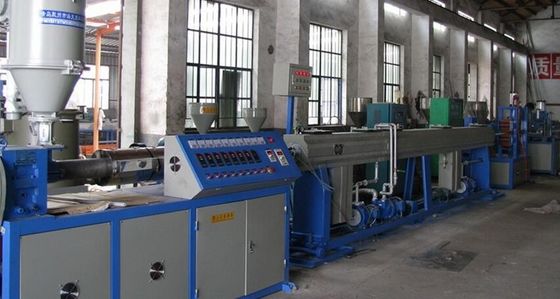

2. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.
3. Characteristic:
3.1.PLC control,high degree of automation.
3.2.Adopting special screw ,good effect.
3.3.Adopting compound spiral engine head,effectively deleting memory function of material.
3.4.Vacuum shaping,constant temperature control,eliminating pipe stress.
3.5.Adopting co-extrusion head to improve the tube with color line.
3.6.Heavy extrusion volume,low temperature of melt,equal temperature of melt.
3.7.Extensive material process range.
Main Technical Parameters
| Model | Pipe diameter | Extruder | Vacuum calibration tank | Cooling tank | Haul-off | Cutter | ||||
| Vacuum pump | Water pump | Length(MM) | Water pump | Length(MM) | Catepiller | Motor | Cutting type | |||
| GF-63 | 16-63MM | SJ65/30 | 3KW | 3KW | 6000 | 4KW | 6000*2 | 2 | 3KW | Swarf-free cutting |
| GF-110 | 50-110MM | SJ75/33 | 4KW | 4KW | 6000 | 4KW | 6000*2 | 3 | 4KW | |
| GF-160 | 50-160MM | SJ90/33 | 5.5KW | 5.5KW | 6000 | 4KW | 6000*2 | 3 | 5.5KW | |
Application:
This line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foamed pipe, etc, it can also produce PP, PE, ABS, PPR, PEX, silicon core pipe and pipe material of other material.
Why choose us:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
