PVC Network Plastic Pipe Extrusion Line For Agricultural Irrigation 40kw 60kw

PVC Network Plastic Pipe Extrusion Line For Agricultural Irrigation 40kw 60kw
PVC Network Plastic Pipe Extrusion Line For Agricultural Irrigation 40kw 60kw PVC Network Plastic Pipe Extrusion Line For Agricultural Irrigation 40kw 60kw PVC Network Plastic Pipe Extrusion Line For Agricultural Irrigation 40kw 60kw

Large Image :  PVC Network Plastic Pipe Extrusion Line For Agricultural Irrigation 40kw 60kw

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

PVC Network Plastic Pipe Extrusion Line For Agricultural Irrigation 40kw 60kw

Description
Model Number: SJSZ65/132 Brand Name: Aorui
Automatic Grade: Fully Automatic Place Of Original: Shandong , China
After-sales Service: Engineers Availiable To Service Warranty Time: 12 Months
Certificate: CE ISO9001 Machine Color: According To Customer's Requirement
High Light:

plastic pipe extruder machine

,

plastic pipe extrusion machine

Plastic PVC Pipe Extrusion Line , PVC Fiber Reinforced Pipe Making Machine





Quick detail

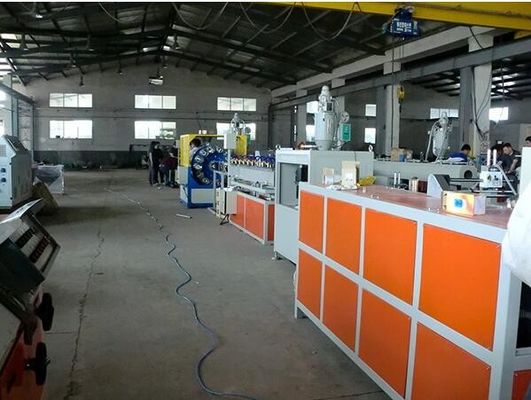

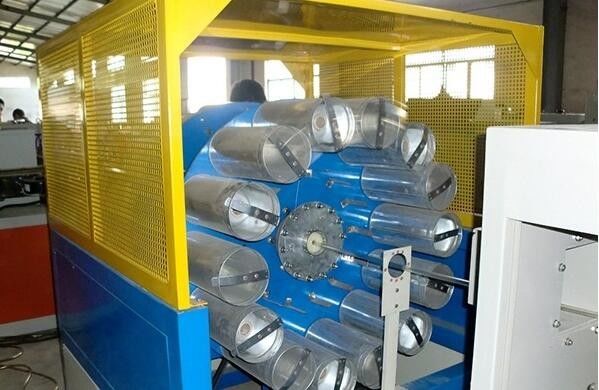

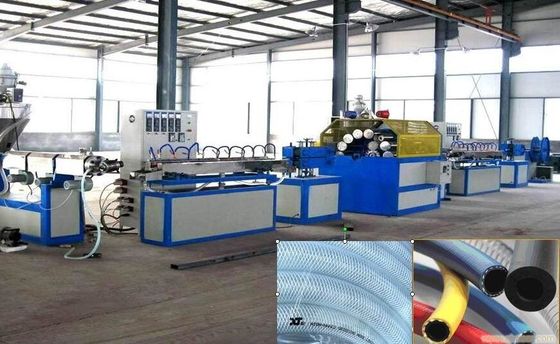

   PVC Braided Fibre Reinforced Hose Extrusion Line is designed to produce PVC fiber reinforced hose. It is also named as PVC Garden Hose Making Machine, it is consist of automatic feeding system/single screw extruder/die head/water cooling tank/haul off machine /Braider/Heat Oven/ Winder . it use electric Parts (breaker/inverter/relay/ and so on ) is SIEMENS/OMRON/SCHNEIDER. Adopt PLC control and simple operation .running stable. It produce pvc fiber hose which diameter range which is from 6mm to 50mm. PVC fiber hose machine is used to produce PVC fiber hose.







Specifications:



1. The wall of PVC Braided Fibre Reinforced Hose is three layers, outer and inner layer are soft PVC hose, middle layer is terylene fiber network, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosion gas, widely used in the machinery, Garden Hose, Coal mine, oil, chemical, agriculture irrigation and buildings.



2. The inner and the outer layers will be made of PVC plastics and the middle layer is made of terylene fibre reinforced net. After changing some parts or add some equipments, the line is suitable for the production of PVC screw thread colored pipe(shower pipe) with PET film inside.

Using fameus server driver, special close loop calculated solution best energy saving. The efficiency is improved significantly.









Applications:



PVC fiber reinforced hose, also known as PVC network pipe, commonly known as plastic snakeskin tube, suitable for transporting the gas and liquid with pressure or corrosive , widely used in machinery, coal, petroleum, chemicals, agricultural irrigation, construction, civil (solar water heaters, gas cylinders) and other fields.









Main technical parameter



Model JG-WQG45 JG-WQG65 JG-LCSG45
Extruder Ø45/25 Ø65/25 Ø45/25×2, Ø30/25
Range of pipe dia. Ø6-25mm Ø8-38mm Ø8-20mm
Output (approx) 35-65kg/h 35-80kg/h 30-50kg/h
Installed capacity (approx) 40kw 60kw 45kw
Average power consumption (approx) 24kw 40kw 30kw
Dimensions (L×W×H)(approx) 12×3×1.5m 13×5×1.5m 15×3×1.5m
Total weight (approx) 4.5t 6t 5t
Screw Design Single-design
Voltage 380V/220V







Equipment warranty

1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
