Product Details:
|
| Model Number: | SJ90/33 | Screw Design: | Single Screw |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Place Of Original: | Shandong , China |
| Screw & Barrel Material: | 38Cr MOAIA | Certificate: | CE ISO9001 |
| Delivery Time: | About 30days | Port: | Qingdao |
| High Light: | Plastic Extruding Machine,Plastic Extruder Machine |
||
CE ISO9001 Certificate PE Water Plastic Pipe Making Machine / PE Water Pipe Production Line
Quick detail:
1. Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization. Separation mixing screw specialized for polyolefin.
2. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall, and little internal stress. Producing pipe limit 20-160mm , maunfacture velocity up to 15m/min. May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX , and PE-RT pipes.
Description:
Process

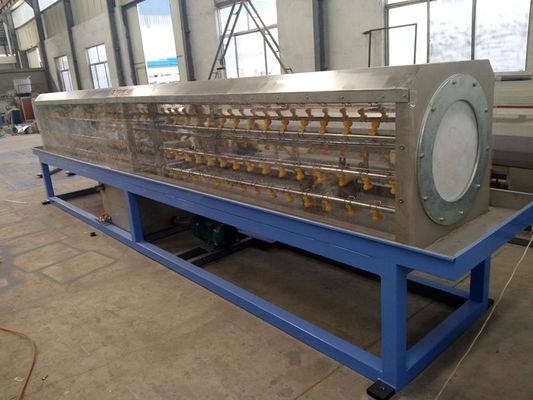

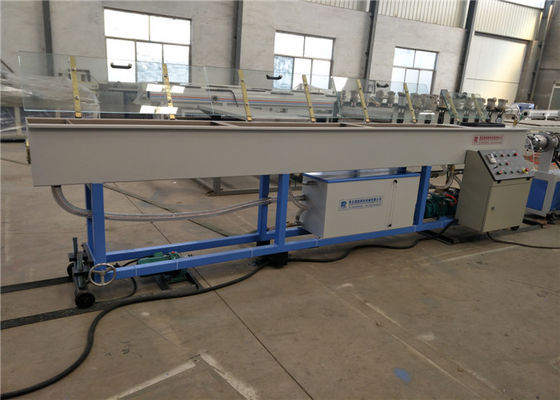

material Hopper Dryer and Auto charger → PE pipe extruder → marking line extruder → mould → calibrator → vacuum calibration tank → spray cooling water tank → printer → haul-off → cutter → pipe discharging rack
Our Features
1. Equipped with KINGSWEL single or twin screw extruder, it can fulfill the need of processing PVC, PP, PE, ABS, PMMA et cetera.
2. 3-Dimension adjustable vacuum calibrating unit, optimized vacuun swith, flow switch, multiple choice of dies.
3. Optimized designed tooling, precise fabricated, high quality material.

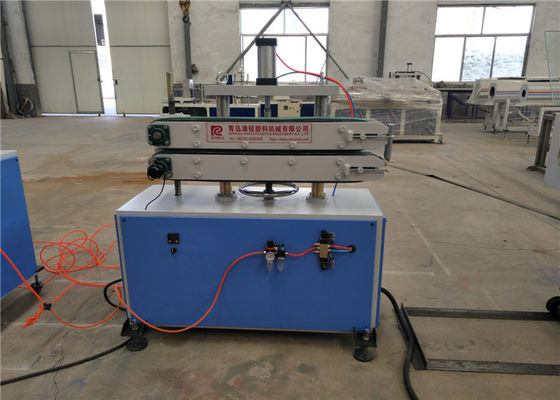

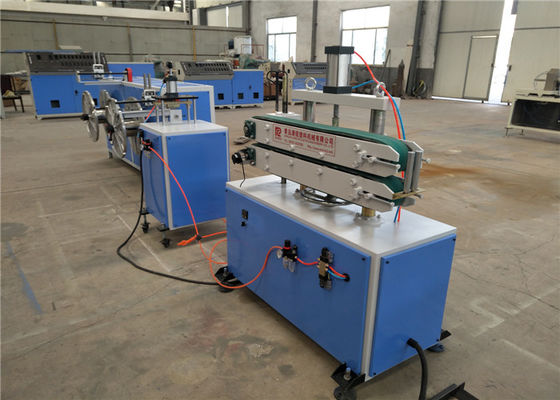

4. Dynamic balance haul-off, frequency conversion/AC speeding, stable running, convenient operation.
5. Cutter adopts professional designed saw blade, controlled by PLC, smooth flat cut.
6. Optimized length counter and dust collector configuration.
Main Technical Parameters
| PE-63 | 65mm | 33:1 | 16-63 | 37 | 80 | 24 |
| PE-110 | 65mm | 33:1 | 75-110 | 55 | 110 | 30 |
| PE-160 | 75mm | 33:1 | 90-160 | 90 | 150 | 32 |
| PE-250 | 75mm | 33:1 | 110-250 | 110 | 200 | 42 |
| PE-315 | 90mm | 33:1 | 160-315 | 160 | 240 | 44 |
| PE-400 | 90mm | 33:1 | 200-400 | 185 | 300 | 50 |
| PE-500 | 120mm | 33:1 | 250-500 | 280 | 350 | 56 |
| PE-630 | 120mm | 33:1 | 315-630 | 280 | 480 | 56 |
| PE-800 | 150mm | 33:1 | 400-800 | 315 | 550 | 72 |
About Our Company:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
