Product Details:
|
| Brand Name: | Aorui | Payment Terms: | TT Or L/C |
|---|---|---|---|
| Certificate: | CE ISO9001 | Product Type: | PE Pipe |
| Condition: | New | Temperature Controller: | Omron |
| Motor: | Siemens | Port: | Qingdao |
| High Light: | Plastic Extruding Machine,Plastic Extruder Machine |
||
Plastic PE Water Pipe Making Machine , PE Drain Water Pipe Production Line
Quick detail:
1. Our engineers and technicians have more than 10 years experince in this field. With CE standard and rich experince, Sunrise Machinery will be your reliable supplier for plastic machines. We warmly welcome friends from all over the world to visit our factory.
2. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.
Description:
1. This PE pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
2. Process Flow

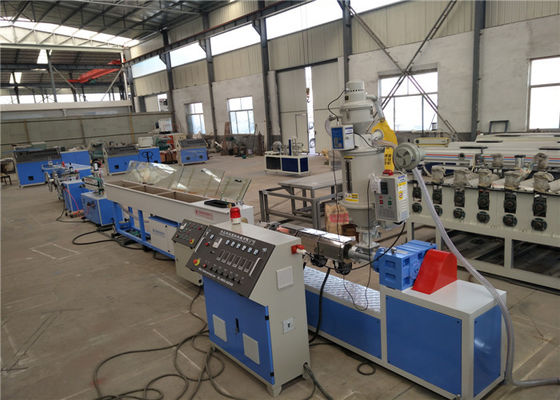

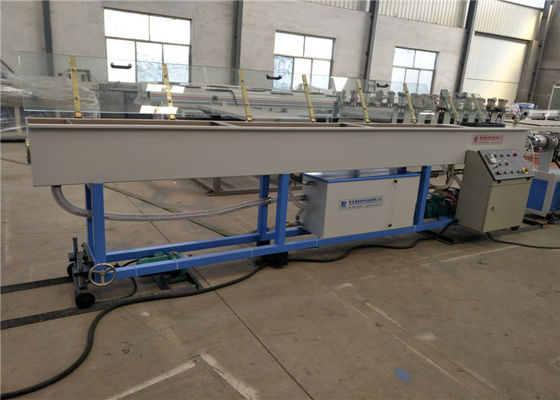

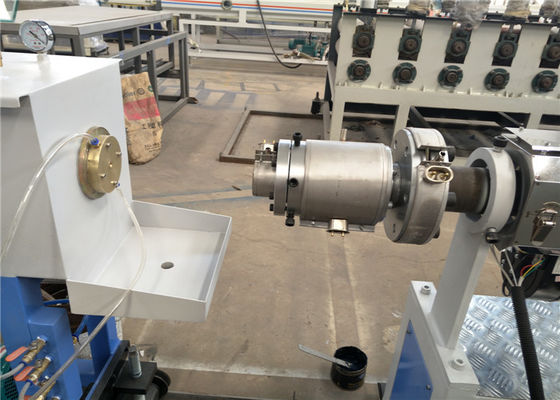

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker
3. Characteristics
1, The extrusion line produces PP, PE ,PPR, ,HDPE ,LDPE and water pipe.

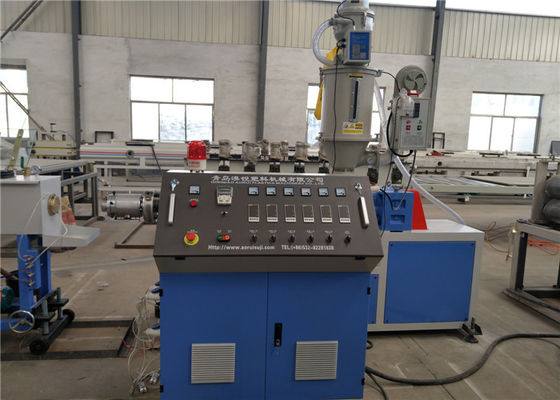

2, The unit consists of single screw extruder, vacuum calibration tank, haul-off, cutter and stacker etc.
3, This line is of reliable performance and high production efficiency.
4, Our company can also manufacture PVC pipe extrusion line,UPVC pipe extrusion line etc.
Main Technical Parameters
| Model | PE-16/63 |
PE-20/110 |
PE-50/160 |
PE-75/250 |
PE-110/315 |
PE-200/450 |
PE-315/630 |
PE-400/800 |
Pipe diameter |
16-63mm |
20-110mm |
50-160mm |
75-250mm |
110-315mm |
200-450mm |
315-630mm |
400-800mm |
Max output |
150kg/h |
200kg/h |
300kg/h |
350kg/h |
400kg/h |
500kg/h |
850kg/h |
850kg/h |
Extrusion speed |
1-15m/min |
1.2-12m/min |
0.6-8m/min |
0.5-4m/min |
0.4-3.7m/min |
0.3-3m/min |
0.2-2m/min |
0.1-1 m/min |
Extruder model |
SJ-65/30 |
SJ-65/33 |
SJ-75/33 |
SJ-75/33 |
SJ-75/33 |
SJ-90/33 |
SJ-120/33 |
SJ-120/33 |
Installed power |
85kw |
110kw |
125kw |
180kw |
260kw |
325kw |
480kw |
600kw |
Center height |
1000mm |
1000mm |
1000mm |
1000mm |
1100mm |
1100mm |
1200mm |
1300mm |
Line length |
35m |
38m |
38m |
40m |
42m |
52 m |
60m |
68m |
FAQ:
Q1:Are you a trading company or a manufactory? A1:We are a manufactory,so we can give u the best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines? A2:We offer you high quality machines with 1 years guarantee . we will give you spare part free in 1 years
Q3:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts? A5:After we deal down all the things , we will offer you a spare parts list for your reference.
