Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65/132 |
|---|---|---|---|
| Condition: | New | Screw Design: | Double Screw |
| Place Of Original: | Shandong , China | Port: | Qingdao |
| Main Motor: | Siemens | Payment Terms: | TT Or L/C |
| High Light: | plastic extrusion machine,plastic production line |
||
PVC Transparent Fiber Reinforced Pipe Making Machine , PVC Fiber Soft Pipe Extrusion Line
Quick detail
1. The PVC Fiber Enhancing Soft Pipe , also called gridding pipe and snakeskin pipe whcih is mainly used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering, coal mine , pwtroleum , chemical industry , agriculture irrigation , civil application (solar energy water heater, gas-jar) , also it can used in irrigating garden and lawn.
2. PVC Fiber Enhancing Hose extrusion line ( PVC fiber reinforced pipe production line ) is a special complete set of equipment for producing PVC fiber enhancing hose.
Sepecification:

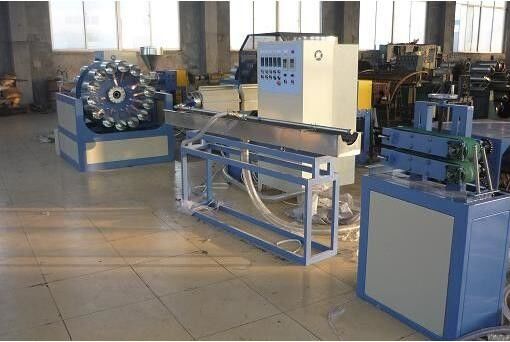

1. This PVC fiber reinforced pipe extrusion line consists of extruder, water-spraying tank, hauling-off unit, fiber-rolling unit, coiler, etc. It features reasonable configuration, unique structure, reliable performance, easy operation, convenient maintenance, high continual capacity, etc. It receives deep welcome and trust from clients.
2. Screw and barrel are special designed for PVC material, ensuring plasticizing quality and produced pipe transparency. Special designed extrusion die head controls each layer separately, with even thickness; and each layer thickness can be adjusted freely. Frequency regulator controlled braiding machine for even winding and high speed. Automatic winder, ensuring regular and beautiful coiling of the pipe.
Application:
PVC fiber enhancing hose. This pipe is non toxic, transparent, pressure endurable, anti-stretching, and acid resistance, corrosion resistance, good appearance, soft light, and durable. The middle layer of this PVC fiber hose is Terlene fiber network, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosive gas, and it is widely used in food and health industry. Also it is good pipe for air, water, gas, oil and other liquid, gas in the temperature from -5ºC to 65ºC.
Technical parameters:
| Item | Description | Data |
| 1 | Single Screw Extruder | 2 sets |
| Screw and Barrel Material | 38CrMoAlA | |
| Treatment of Screw and Barrel Surface | Nitriding | |
| Heating Mode of Screw Barrel | Cast-aluminium Heating Circles | |
| Cooling Mode of Barrel | Air Blower | |
| Main Motor Power Speed Adjusting | ABB Frequency Inverter | |
| Gearbox Reducer | Hardening Gear Surface, Low Noise | |
| 2 | Die Head | 1 set or According to Customer's Need |
| 3 | Water Cooling Tanks | 2 sets |
| Tank Material | Excellent Stainless Steel | |
| Tank Length | 2000-3000mm | |
| Tank Thickness | 3mm | |
| Water Pump | 2 sets | |

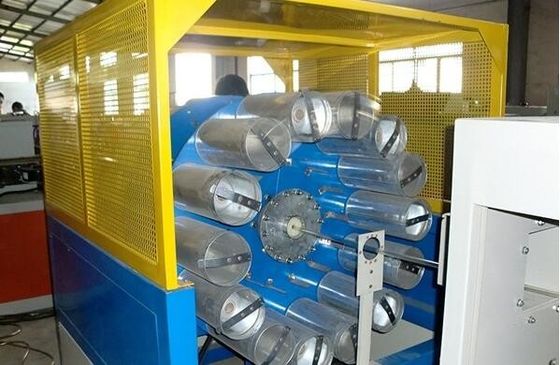

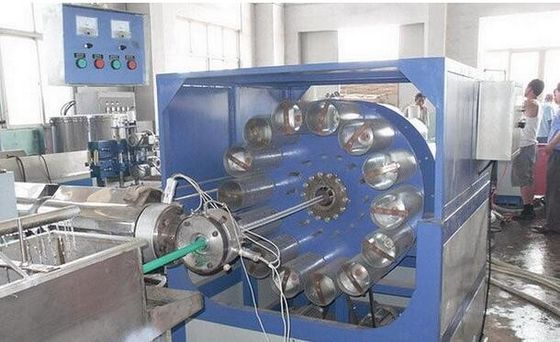

| 4 | Fiber Winding Machine | 1 set |
| Motor | 2.2KW | |
| Speed Adjusting Mode | ABB Inverter | |
| 5 | Hauling off Machine | 2 sets |
| Motor Power | 1.5kw*2 | |
| No.of Belt | 2 *2 sets | |
| Speed Control | A Inverter | |
| 6 | Twin Position Coiler | 1 set |
| 7 | Main Electrical Components | SIEMENS ,Omron, ABB, Schneider etc. |
Our Advantages:
1. 24 hours cervice
2. Overseas installation
3. Free operation training and technology formula transfer
4. Old machine update
5. Spare parts and maintenance with reasonable cost price
