PVC Braided Fibre Reinforced Hose Plastic Extrusion Line / Soft Pipe Making Machine

PVC Fiber Reinforced Soft Pipe Making Machine , PVC Fiber Reinforced Hose Extruder Machine

Quick detail

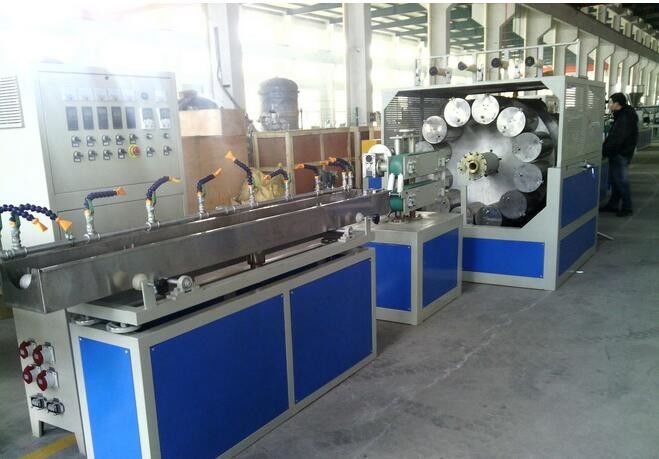

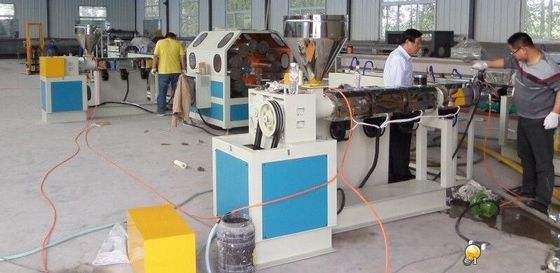

 1.  PVC Braided Fibre Reinforced Hose Extrusion Line is designed to produce PVC fiber reinforced hose. It is also named as PVC Garden Hose Making Machine, it is consist of automatic feeding system/single screw extruder/die head/water cooling tank/haul off machine /Braider/Heat Oven/ Winder .

2.  It use electric Parts (breaker/inverter/relay/ and so on ) is SIEMENS/OMRON/SCHNEIDER. Adopt PLC control and simple operation .running stable. It produce pvc fiber hose which diameter range which is from 6mm to 50mm. PVC fiber hose machine is used to produce PVC fiber hose.

Sepecification:

1. The wall of PVC Braided Fibre Reinforced Hose is three layers, outer and inner layer are soft PVC hose, middle layer is terylene fiber network, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosion gas, widely used in the machinery, Garden Hose, Coal mine, oil, chemical, agriculture irrigation and buildings.

2. Raw material: PVC Granular material and yarn

PVC transparent and fiber reinforced hose making machine(6mm-32mm) Condition:

Installed Power: 68KW , 380V three phases+natural+ground, 50HZ

Load Factor: 50%-80%

Circulation cooling water: 2m3/h

3. The PVC Fiber Enhancing Soft Pipe it is widely used in such areas as mechanical enginerring , coal mine , petro;eum , chemical industry , agriculture irrigation,  civil application , also it can be used in irrigation and laen.

Application:

PVC fiber enhancing hose. This pipe is non toxic, transparent, pressure endurable, anti-stretching, and acid resistance, corrosion resistance, good appearance, soft light, and durable. The middle layer of this PVC fiber hose is Terlene fiber network, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosive gas, and it is widely used in food and health industry. Also it is good pipe for air, water, gas, oil and other liquid, gas in the temperature from -5ºC to 65ºC.

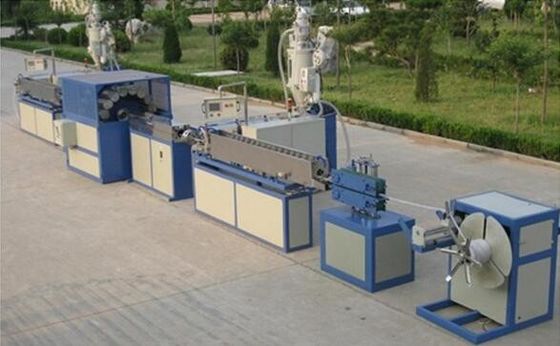

PVC transparent and fiber reinforced hose extrusion machine(6mm-32mm) Configuration:

1. Single screw extruder: SJ- 50x28 1set

2. Extrusion Dies for inner layer transparent hose 1 set

3. Cooling water tank: 1set

4. Haul off unit 1set

5. Braider 1 set

6. Dryer Oven unit 1set

7. Single Screw Extruder SJ- 50x28 1set

8. Extrusion Die for outer layer 1set

9. Cooling water tank: 1set

10. Haul off unit 1set

11. Winder with one coiler 1 set

12. Digital Electrical System 1 set

Our Advantages:

Equipment warranty:

1. About the equipment , Middle tech promised the good quality of 12 months.

2. During the warrnaty , no purposely and artificialy demage change the dameaged part , we will free maintance and technical services.

3. Over 12 months,  buyer's need to pay the producing cost of the worn part , and life long the supply the part of equipment and freely device.
