PVC Fiber Reinforced Suction Hose Pipe Plastic Extrusion Line 0.2-1.5m/Min

PVC Fiber Reinforced Suction Hose Pipe Plastic Extrusion Line 0.2-1.5m/Min
PVC Fiber Reinforced Suction Hose Pipe Plastic Extrusion Line 0.2-1.5m/Min PVC Fiber Reinforced Suction Hose Pipe Plastic Extrusion Line 0.2-1.5m/Min PVC Fiber Reinforced Suction Hose Pipe Plastic Extrusion Line 0.2-1.5m/Min

Large Image :  PVC Fiber Reinforced Suction Hose Pipe Plastic Extrusion Line 0.2-1.5m/Min

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ51/105
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

PVC Fiber Reinforced Suction Hose Pipe Plastic Extrusion Line 0.2-1.5m/Min

Description
Brand Name: Aorui Power: 22kw
Voltage: 380V 50HZ Delivery Time: 30 Days
Screw & Barrel Material: 38Cr MOAIA Warranty: 12 Months
Place Of Original: Shandong , China
High Light:

plastic extruder machine

,

plastic production line

PVC Fiber Reinforced Suction Hose Pipe Making Machine , Plastic PVC Pipe Extruder Machine





Quick detail

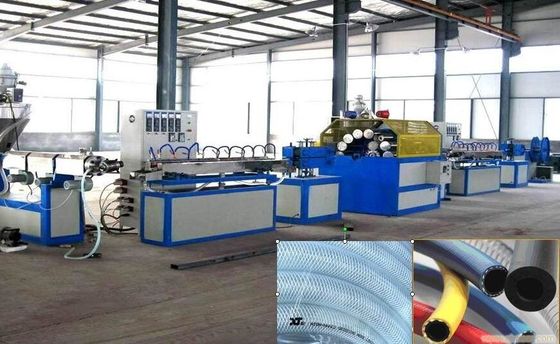

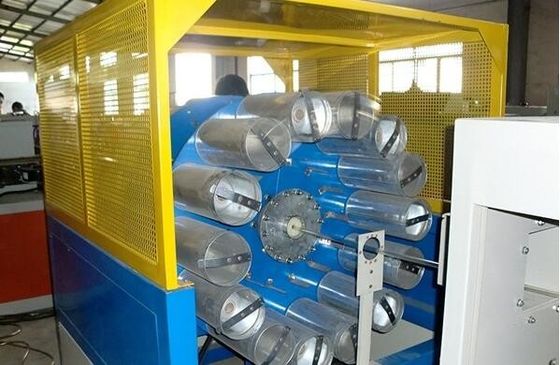

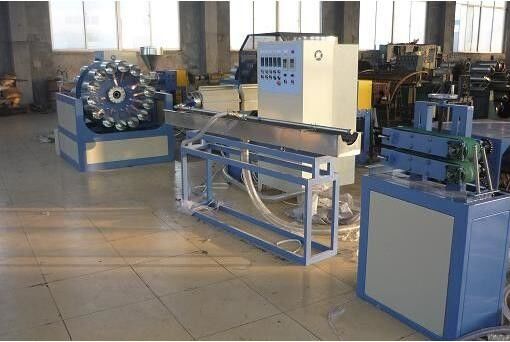

1. This line consists of main extruders,water cooling tank,haul off machine,fiber braiding machine,coiler etc,which has reasonable design,unique structure,stable performance,easy operation and maintenance.



2. This line is suitable for producting PVC Steel Wire Reinforced Flexible Pipe. The wall thickness is transparent flexible PVC material, inside is spiral steel wire, the superiority of which includes Crushing Resistance,Corrosion Resistance, Antistatic and Good Liquidity, etc. suitable for supplying high-pressure and flammble gas or fluid. This kiind of pipe is mainly used in the line of Mechanism, Chemical, Construction, Agricultrual Irrigation and Vacuum Equipment, etc.







Sepecification:





This series of extrusion lines are mainly used to produce PVC drainage pipes and U-PVC,C-PVC water supply pipes.

Advanced design for screws supplies powerful safeguard for the PVC plasticization.

Unique inside oil controlling temperature system adapts different technology formulas.

Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent.

Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.

Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment.







Application:





This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.







Technical parameters:



Main extruder SJ-45X25 SJ-65X25 SJ-90X25
Screw’s diameter(mm) 45 65 90
Products ID(mm) 12-25 25-50 50-100
Central height(mm) 1100 1100 1100
Speed 0.3-2m/min 0.2-1.5m/min 0.2-1m/min
Cooling way   Cooling by spraying Cooling by spraying
Output (Kg/h) 50 80 100
Total power (Kw) 15 30 50
Weight (Kg) 2600 3800 5200
Size (L x W x H) 7000X3100X1620 7500X3500X1740 8200X4200X1940











Technical and after - sales service:



experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
