Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ51/105 |
|---|---|---|---|
| Condition: | New | Screw Design: | Double Screw |
| Delivery Time: | 30 Days | Automatic Grade: | Fully Automatic |
| Payment Term: | TT Or L/C | ||
| High Light: | plastic extruder machine,plastic production line |
||
PVC Pipe Plastic Extrusion Line , Plastic Pipe Making Machine , PVC Pipe Extrusiopn Machine
Quick detail
1-PVC pipe: main raw material of producing PVC pipe is PVC resin powder.
2-PVC pipe is a kind of general purpose pipes to points: drains, pipe, conduit, cable sheathing, because raw recipe is different, indicators of every type pipes compression are not the same.
3-PVC water pipe with water accessories, for building water supply projects.
Sepecification:

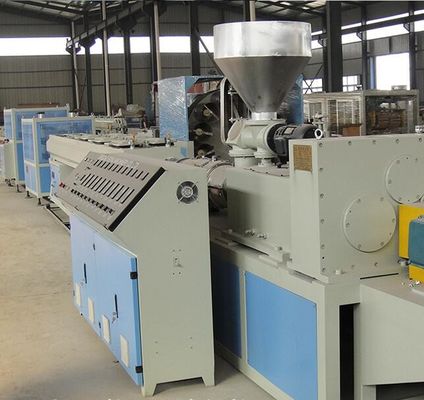

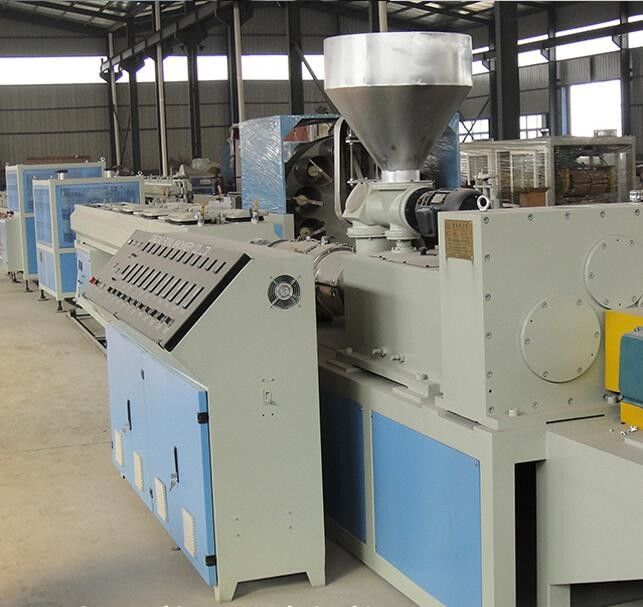

1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.

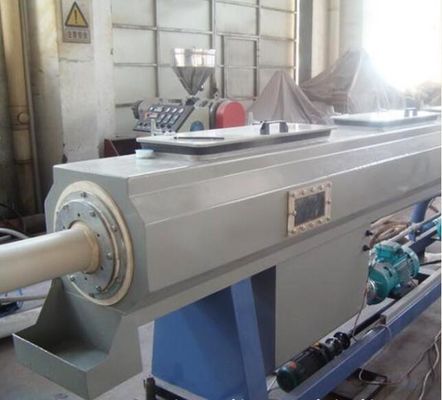

2. This PVC Pipe Extrusion Line Is Composed Of Conical Twin-Screw Extruder, Vacuum Calibration Tank, Haul-Off, Cutter, Stake And etc. The Extruder And Haul-Off Adopt Imported AC Frequency Speed Controller, Vacuum Pump And Haul-Off Motor All Adopt Superior Products. The Haul-Off Method Has Two-Claw, Three-Claw, Four-Claw, Six-Claw And etc. You May Choose Saw Blade Cutting Type Or Planetary Cutting Type. It Is Additionally Attached With Length Counter And Intensifying Device.
Technical Parameters:
| Diameter scope (mm) | 16-40 Dual | 20-63 Dual | 20-63 | 50-160 | 63-200 | 160-315 | 315-630 | 560-800 |
| Conical extruder | SJZ51/105 | SJZ65/132 | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ92/188 | SJZ105/216 |
| Extruder Power(KW) | 18.5 AC | 37 AC | 18.5 AC | 37 AC | 37 AC | 55 AC | 110 DC | 160 DC |
| Max. capacity (KG) | 120 | 250 | 120 | 250 | 250 | 350 | 800 | 1100 |
| Max. Lineal speed (m/min..) | 10 | 15 | 15 | 8 | 3.5 | 3 | 1.2 | 1.3 |
Application:
This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.
Technical and after - sales service:
1. We are factory , we have more than 15 years experience.
2. Our enginers can go to abroad to service
3. CE ISO9001 Certificate
