Product Details:
|
Raw Material: | PP PE | Voltage: | 380V 50HZ |
---|---|---|---|
After-sales Service: | Engineers Availiable To Service | Type: | Single Wall Corrugated Pipe Machine |
Certificate: | CE ISO9001 | Automatic Grade: | Fully Automatic |
Color: | According To Customer's Requirement | Condition: | New |
High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
PVC PE PP Single Wall Corrugated Pipe Making Machine , Single Wall Corrugated Pipe Extruder
Quick detail:
1. Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
-----Production speed is 15m/min to 25m/min.
-----The forming machine has 38 pairs to 72 pairs forming block.
2. Corrugated Pipe Machine parts list:
---Single screw extruder: SJ-45/30, 65/30
---Corruated pipe mold: 50-72pairs
---Corrugated pipe forming machine
---Double station winder
---Electric control cabinet.
Description:
1. Our Single Wall corrugated pipe machine consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment,Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipes in high speed.
2. We developed the mahcine on the basis of traditional structure, and give new designing on the forming table, we adopt SJ45, SJ65,SJ90,SJ120 to produce different range pipe diameter. This machine can be used to produce single-wall or one wall corrugated pipe of PE, PP, PVC, EVA as well as PA corrugated pipes.

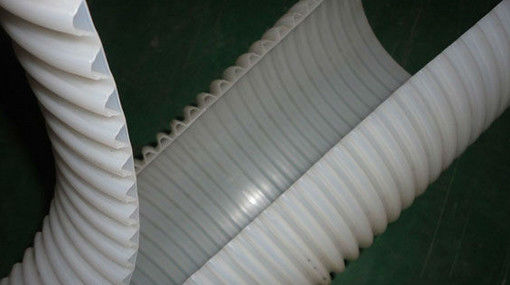

3. Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
Specifications:
Model | ZXRJ-50/70 | ZXRJ-50 | ZXRJ-25 | ZXRJ-10 |
Model of extruder | SJ65×33 | SJ65×33 | SJ45×30 | SJ30×30 |
Quantity of mold blocks | 70 | 50 | 42 | 42 |
Total Power | 67KW | 65KW | 50KW | 45KW |
Pipe size | φ16~50 | φ16~50 | Φ8~20 | Φ6~10 |
Max. speed | 17m/min | 14m/min | 12m/min | 10m/min |
Applications:
Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.
Competitive Advantage:
1. 24 hours service
2. Overseas installation
3. Free operation trainning and technology formula transfer
4. Old machine update
5. Spare perts and maintenance with reasonable cost price
