Product Details:
|
| Automatic Grade: | Fully Automatic | Certtificate: | CE ISO9001 |
|---|---|---|---|
| Product Type: | Corrugated Pipe | Voltage: | 380V 50HZ |
| Trademark: | Aorui | Type Of Extruder: | Single Screw |
| Delivery Time: | 30 Days | Condition: | New |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||

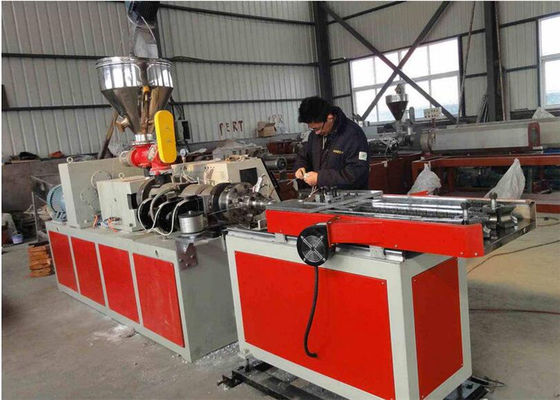

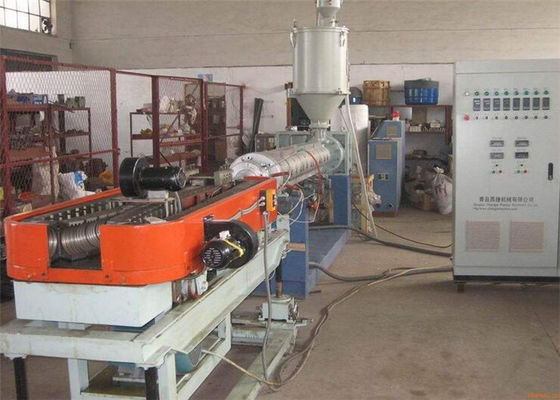

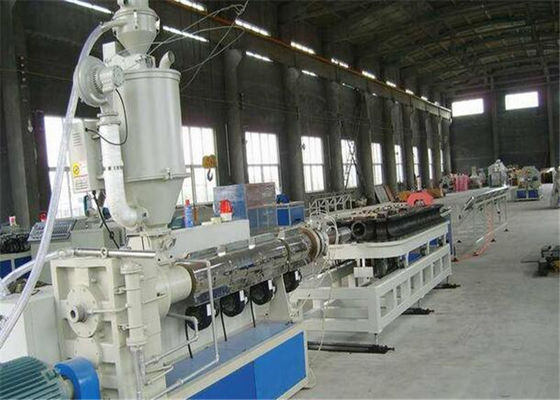

Double Wall Corrugated Pipe Extrusion Line , PP PE PVC Pipe Extruder
Quick detail:
1. HDPE / PP double wall corrugated pipe is widely used. By the company absorbing foreign advanced technology, independent research and development of HDPE double-wall corrugated pipe production line, with a number of patented technologies, production diameter range 63mm -1500mm.
2. High degree of automation, stable and high yield. New high efficiency single screw extruder, extrusion volume. Forming machine adopts horizontal structure, shuttle transmission, sealed water-cooled, vacuum forming, the original line double flaring.
Description:
1. HDPE Double Wall Corrugated Pipe Production Line
We supply the double wall corrugated pipe extrusion lines with
the pipe of diameter from 110mm up to 1200mm
2.The Extrusion Line includes equipments as below,
2.1. SJ90× 36 Single Screw Extruder (for the outer wall extrusion)1 set
2.2. SJ75× 36 Single Screw Extruder (for the inner wall extrusion) 1 set
2.3. BW-500 high-speed water cooling corrugator 1 set
2.4. CWT-500 cooling water tank 1 set
2.5. C-500 automatic dustless cutting machine 1 set
2.6. Stacker 1set
2.7. Die head and mould blocks (110, 160, 200, 250, 315, 400, 500mm)7 sets
2.8. Electronic Control System 1 set
Specifications:
| Pipe diameter (ID. mm) |
110 |
160 |
200 |
225 |
300 |
400 |
500 |
600 |
800 |
SN8 (kg/m) |
0.9 |
1.7 |
2.1 |
2.8 |
5.1 |
8.0 |
12.5 |
18.5 |
31 |
SN4 (kg/m) |
0.75 |
1.5 |
1.8 |
2.5 |
4.2 |
6.0 |
10.0 |
13.5 |
25 |
Line speed (m/min)/ Capacity (kg/h) |
≥6 |
≥5 |
≥4.2 |
≥3.8 |
≥2.8 |
≥1.9 |
≥1.3 |
≥1.1 |
≥0.8 |
Applications:
1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.
2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity;
4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its flexibility,so that it can be laid on the uneven ground continuously.
6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
