Product Details:
|
| Brand Name: | Aorui | Certification: | CE ISO9001 |
|---|---|---|---|
| Condition: | New | Automatic Grade: | Fully Automatic |
| Temperature Controller: | Omron | Motor: | Siemens |
| Screw Number: | Two | ||
| High Light: | Foam Sheet Extruder,PVC Foam Board Production Line |
||

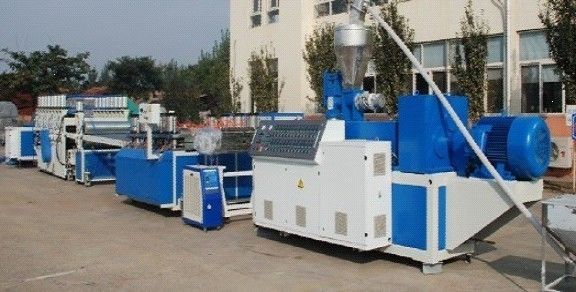

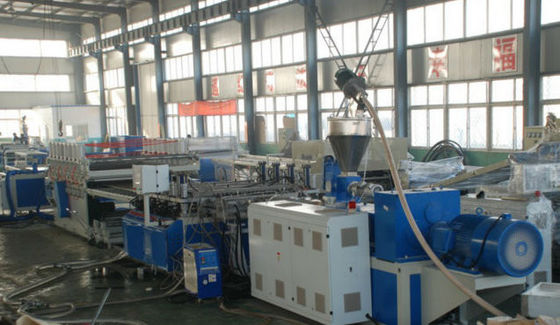

Crust Foam Pvc Board Making Machine , Plastic PVC Profile Extrusion Line
Quick detail:
1. WPC PVC profiles is extruded by wood fiber and resin(PVC,PP,PE) with little high polymer material. Widely used in garden landscape,indoor decorative,such as ceiling,decking/floor,panel and skirting series of construction decorative area.
2. MAIN PARAMETERS:
Width:400mm-1220mm
Thickness:1-30mm
Density : 0.35-0.80
Output:280-400kg/h
Description:
Advantage of our machine:
1. The rise and fall of the calibration unit, adopts ELECTRIC LIFTING, easier operation.
2. Equipped with INDEPENDENT LIFT to remove and reinstall the mould, replace the heavy gantry, and greatly saves space, safer and more beautiful
3. Equipped with AUTOMATIC DISMANTLE DEVICE, reduce the labor force.
4. The DIAGONAL of the board can be adjusted independently, very convenient
5. This machine can produce pvc products of different specifications only by changing mould
6. All the electrical parts in line are from famous brand supplier, Siemens, Omron &ABB brand, insure the machine can run smoothly. The machine also has the features of high automation, easy operation, etc.
7. The auxiliary units are able to use the PLC control, which is stable and reliable.

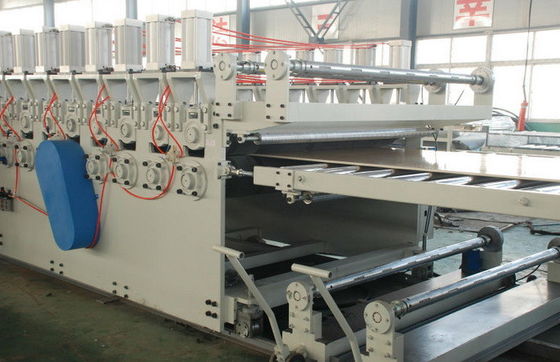

PVC Foam Board Machine adopts Celuka foam technology, which can produce a kind of PVC foam boards with superior quality. These processes result in a "skinning" or outer layer of foam board, thus has smooth and shining surface with characteristics of lightweight, scratch-resistant, durable, water and weather resistant, anti-corrosion, impervious to salts, insects and many chemicals including some acids.
Applications:
They are wildly used in furniture making,decoration,advertisement,construction and other fields.
such as:
1).Exhibition cabinet, shelf in supermarket
2).Advertisement board and sign board
3).the advertisement sheet for printing, engraving, cutting, sawing
4).Architectural decoration and upholstery
5).Decoration for partition wall and shopwindows
6).Furniture:cabinet,desk,chair,wardorbe,shoecase,window,door
Specifications:
| Model | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 | YF800 |
| Max. width of product(mm) | 180 | 240 | 300 | 400 | 500 | 600 | 800 |
| Extruder model | SJSZ55/113 | SJSZ65/132 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJZ80/156 | SJZ80/156 |
| Max. extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 360 | 360 | 360 |
| Extruder power(kw) | 22 | 30/37 | 30/37 | 30/37 | 55 | 55 | 55 |
| Cooling water(M3/h) | 5 | 7 | 7 | 8 | 10 | 12 | 13 |
| Compressed air(M3/min) | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.3 |
Competitive Advantage:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
