Product Details:
|
| Product Type: | PVC Fiber Pipe | Application: | Plastic Pipe |
|---|---|---|---|
| Plastic Processed: | PVC | Power: | 37kw |
| Place Of Original: | Shandong , China | Certificate: | CE ISO9001 |
| After-sales Service: | Engineers Availiable Service | Port: | Qingdao |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
Low Energy 37kw Plastic Pipe Extrusion Line Pvc Fiber Reinforced Braided Hose Extruder
Quick detail
1. This machine is designed to produce soft pvc fiber reinforced hoses, also called pvc net hose, pvc snake hose, suitable for pressure corrosive gas, liquid transporting, widely used in machinery, coal, petroleum, chemical industry, agriculture irrigation, construction, civil and other fields. Now also widely used in a large number of gardens, law watering, solar etc.
2. Working flow
Main extruder→ Die → Braider → Cooling bath → Drying tank → Haul off → Winder → Ink printer → Electric cabinet
Specifications:

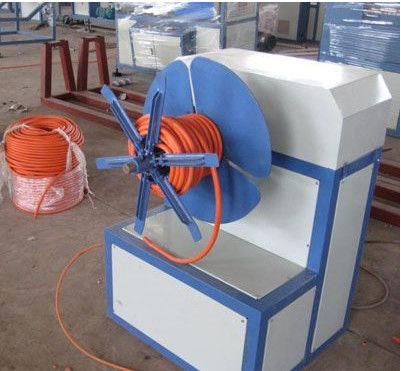

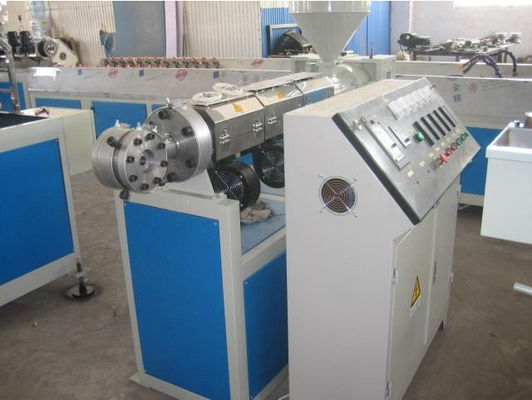

1. PVC fiber pipe equipment consists of special high quality single screw extruder (2 sets),crawler tractor(2 sets), reinforcing mesh knitting machine(1 set ),spray coolers (2 sets), heat drying machine(1 set) and slip winder(1 set). PVC fiber pipe production line color is blue and white or in accordance with customer demand.
2. PVC fiber tube products introduction:
PVC pipe, also known as fiber snakeskin tube, mesh tube, mainly middle pressure or corrosive gas and liquid delivery, widely used in machinery, mining, petroleum, chemical, agricultural irrigation, construction, civil (solar water heaters, gas tank) and other fields.
3. Production line process:
Raw material - feeding (extruder) - Mould - Extrusion - cooling (water bath) - Traction (tractor) - Winding (Winder) - extruder (extruder) - Traction (tractor) - coiling (duplex winder)
Advantages of the pipes produced by this line

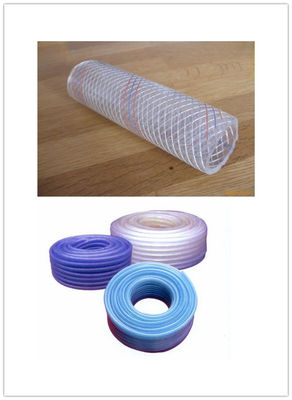

1. PVC fiber reinforced hose extrusion line is to produce PVC fiber hose, It has three layers, the inner and the outer layer is plastic material and the middle layer is fiber strength net.
2. It has good mechanical property and chemical property, which suits for the transportation of high pressure and corrosive air, water.
3. The soft hose owns such features as transparent and no poison, pressure resistance, pull-resist, corrosion-resist, beautiful outlook, soft, light and long lasting, and good pipes for air, water, gas, oil and other liquid, gas in the temperature from -5 degree to 65 degree.
Main technical parameter
| Model | Pipe dia. Range (mm) | Main Extruder Model | Extrusion Speed (m/min | Max.Output (kg/h) |
Total installed Power (Kw) | Overall Dimension L×W×H (m) |
| TXWZG-32 | Ø 6-Ø 32 | TSJ-45X28 TSJ-45X28 |
2-16 | 40 | 30 | 15×3.5×2.5 |
| TXWZG-50 | Ø 25-Ø 50 | TSJ-50X28 TSJ-50X28 |
1-8 | 70 | 50 | 15×3.5×2.5 |
Our Adcantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
