Product Details:
|
| Certification: | CE & ISO9001 | Condtion: | New |
|---|---|---|---|
| Screw Design: | Single Screw | Voltage: | 380V 50HZ |
| Color: | Bule Or According To Customer's Requirement | Automatic Grade: | Fully Automatic |
| After-sales Service: | Engineers Availiable To Service | Application: | Pipe |
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||

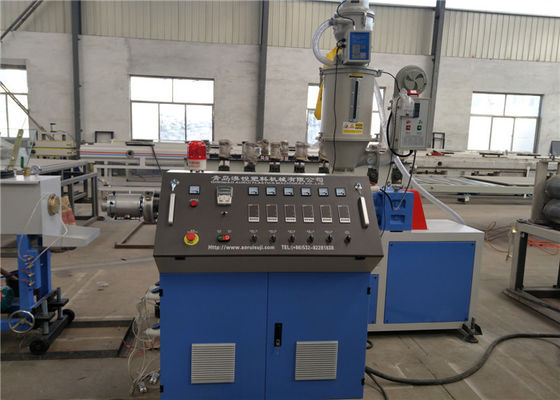

PPR PE Drinking Water Pipe Single Screw Extruder Machine Reliable Performance
Quick detail
1. Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization. Separation mixing screw specialized for polyolefin. Separation designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress..
2. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min. May be used to produce HDPE silicon core tube , ordinary PP-R, PE ,PEX , and PE-RT pipes.
Description:
1. Description of DVGW PPR pipe drinking water tube extrusion line making machine:

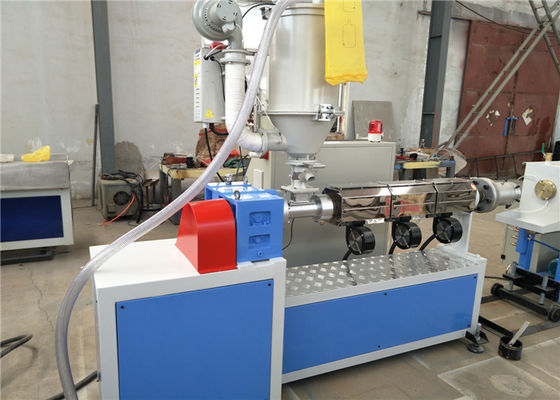

The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new
style grooves. All of these offer good plastification and mixing effect.
Special design of basket die head of for PPR large diameter pipe with thick wall offer lower melting temperature,
good mixing,lower pressure of cavity, and stable production.
2. Process Flow of DVGW PPR pipe drinking water tube extrusion line making machine:
Raw material+master batches → Mixing → vacuum feeding → material dryness → single screw extruder →color string extruder → spiral mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter → pipe rack → finished product inspecting &packing
Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line
| Item | SJGF75 | SJGF160 | SJGF250 | SJGF450 | SJGF630 | SJGF800 | SJGF1000 | SJGF1200 | SJGF1600 |
|
Diameter (mm) |
20-75 | 63-160 | 75-250 | 160-450 | 315-450 | 400-800 | 500-1000 | 630-1200 | 1000-1600 |
| Main machine |
SJ25/25 SJ65/33 |
SJ25/25 SJ65/33 |
SJ25/25 SJ75/33 |
SJ25/25 SJ90/33 |
SJ25/25 SJ120/33 |
SJ150/33 | SJ150/33 |
SJ90/33 SJ120/33 |
SJ120/33 SJ120/33 |
|
Max. capacity (kg/h) |
120-150 | 120-300 | 280-400 | 500-700 | 700-900 | 900-1200 | 900-1200 | 900-1400 | 1000-1700 |
|
Total power (KW) |
110 | 130 | 260 | 400 | 500 | 600 | 600 | 900 | 1000 |
If you want more details of our HDPE pipe machine/ HDPE pipe making machine, please let us know!
Application:
It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on. This set is also suitable for the production of crosslinked PE pipes and other olefine products. Our company can provide you with detailed ingredients and complete manufacture line.
Why choose us:
we have more than 15 years experiences in this field.
we are factory , customers can go to our factory to see the machine
we have CE&ISO9001 certificate
We are a professional manufacturer of plastic machinery in China
our engineers can go to aborad to install the machine and trainning the workers
