Product Details:
|
| Condition: | New | Screw Design: | Single Screw |
|---|---|---|---|
| Certificate: | CE ISO9001 | Automatic Grade: | Fully Automatic |
| Plastic Processed: | PE | Voltage: | 380V 50HZ |
| After-sales Service: | Engineers Availiable To Service | ||
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||
Plastic PE HDPE LDPE Pipe Extrusion Line , Hot Sell PE Corrugated Pipe Production Line
Quick detail:

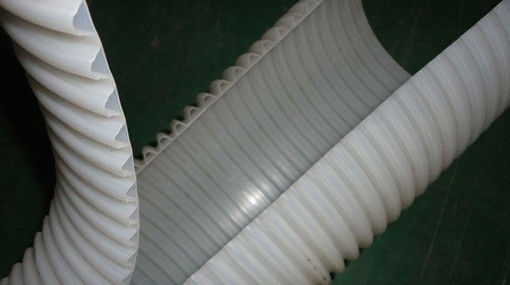

1. The production line is mainly used to produce small diameter single wall PVC,PP and PE corrugation pipe, which could be used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe; Small size corrugation pipe of 4.5-50mm could be made for car use purpose.
2. Being composed of 65/45/30 extruder, corrugated pipe mould forming machine, pipe die, air-cooling device, winder, the production line can extrude and mold PVC, LDPE, HDPE and other thermoplastic corrugated pipe of many specifications continuously.
Description:
1. The extrusion Line consist of the following parts:

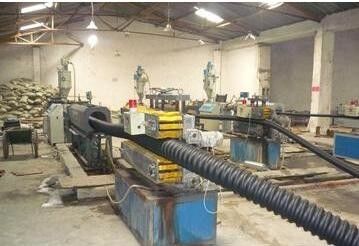

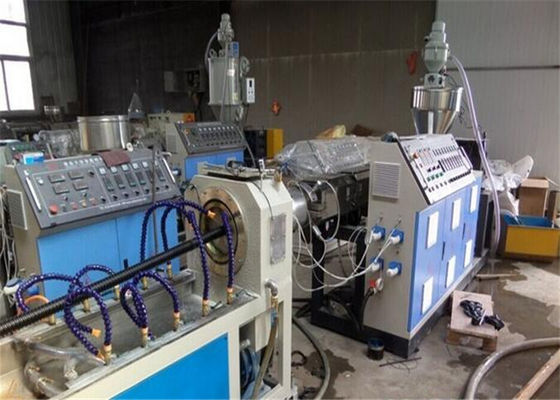

Main Extruder-----Extrusion Mould---Corrugation forming machine----Cooling water Tank-----Auto winder
2. This PE single wall corrugated pipe making machine is designed to produce single wall corrugated pipe which material is PP, PE and PA etc. The pipe is mainly use for electrical cable or wire protection, drainage pipe of washing machine, pipe in dust collector, automobile industry, lamp industry and air-exhausted pipe etc.
3. Packaging and Shipping:
Packaging of PE single wall corrugated pipe making machine: PE film wrapped around & wooden pallet or wooden case worthy for long distance sea and land transportation;
Delivery of PE single wall corrugated pipe making machine: 35 days after receiving the down-payment.
Specifications:
| Name | Unit | Parameter | |
| Diameter | mm | 90-165 | 250-500 |
| Production speed | m/min | 2-6 | 0.5-4 |
| Center height | Mm | 1000 | 1200 |
| Number of mold | Couple | 60 | 40 |
| Hydraulic pressure | Mpa | 0.4-0.6 | 0.4-0.6 |
| Temperature of cooling water | degree | ≤12 | ≤12 |
| Gas-compression pressure | Mpa | 0.4-0.5 | 0.4-0.5 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
