Product Details:
|
| Brand Name: | Aorui | After Sales Service: | Engineers Availiable To Service |
|---|---|---|---|
| Voltage: | 380V 50HZ | Place Of Original: | Shandong |
| Certificate: | CE ISO9001 | Condition: | New |
| Plastic Processed: | PE PP | ||
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
PE Electric Wire Protection Corrugated Pipe Extrusion Machine , PP PE PVC Corrugated Pipe Making Machine
Quick detail:
1. This single-wall corrugated pipe production line could produce corrugated pipes with smooth surfaces and even ripples by one-step molding technology through shaping moulds. Those tubes are for electric wire protection tubes, washing machine drain-pipe, dust collector tubes, vent pipe etc. The smallest single wall corrugated pipe from 4 to 6.7mm is our new product, which is also new development in china.
2. Process flow:

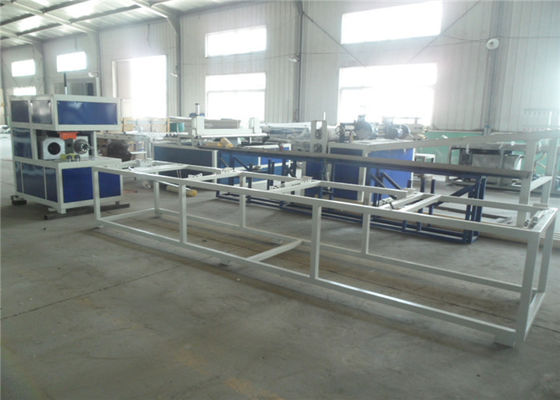

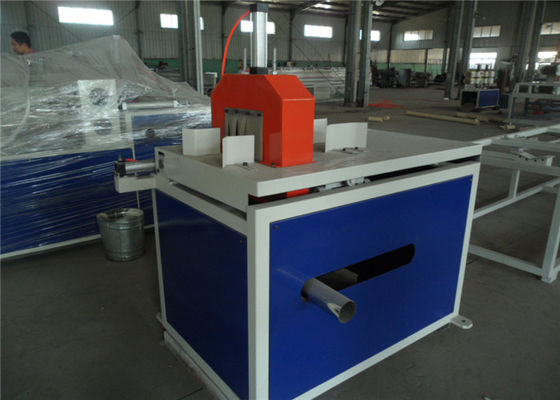

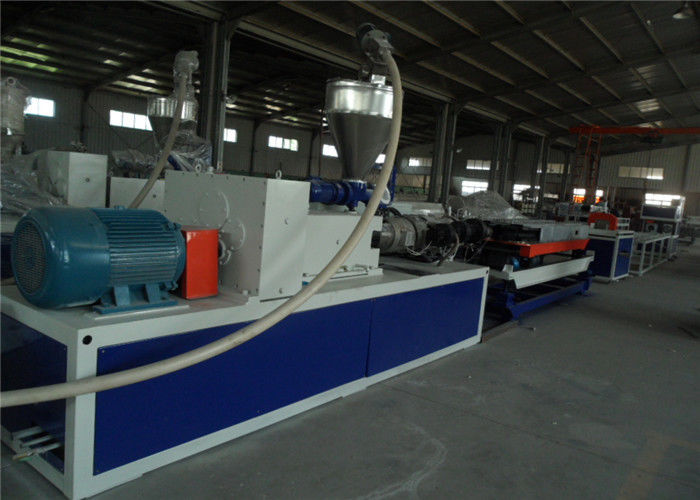

Dryness loader→Single screw extruder→Die→Forming moulds→Water tank(optional)→Haul off and cutter(optional)→Double working-station winder
Description:
Breif introduction
1.According to the speed and pipe diameter to choose screw.
2.Stable extrusion and forming
3.Double work station winder
4.PLC control and Siemens inverter and motor(optional)
Different extruder and corrugator will be chosen for different material: HDPE, PP, UPVC, etc.
The pipe is mainly used for electrical cable or wire protection, drainage pipe of washing machine, pipe in dust collector, automobile industry , lamp industry and air-exhausted pipe, etc.
Applications:
1, Light weight: the spiral structure makes the duct lightweight and easy to transport and install.
2, High strength: because of the spiral structure, the ring stiff is high and the pipe can bear the load effectively with no deformation
3, Terrain adaptability: tension and break resistance and adapt the terrain change well.
4, Corrosion resistance: acid & corrosion, no electrochemical corrosion, long service life.
5, Electric insulation: it is totally immune to galvanic or electrolytic attacks.
6, Easy to install: join the duct by its helix without other tools
7, Good heat dissipation: cables is floating in the duct and the heat dissipates more evenly
8, Efficient drawing of cables: The spiral structure reduces the surface contact between the cable and duct. The low traction resistance improves the efficiency of drawing of cables
Specifications:
| Name | Unit | Parameter | |
| Diameter | mm | 90-165 | 250-500 |
| Production speed | m/min | 2-6 | 0.5-4 |
| Center height | Mm | 1000 | 1200 |
| Number of mold | Couple | 60 | 40 |
| Hydraulic pressure | Mpa | 0.4-0.6 | 0.4-0.6 |
| Temperature of cooling water | degree | ≤12 | ≤12 |
| Gas-compression pressure | Mpa | 0.4-0.5 | 0.4-0.5 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
