Product Details:
|
| Brand Name: | Aorui | Capacity: | According To Customer's Requirement |
|---|---|---|---|
| Type Of Extruder: | Single Screw | Voltage: | 380V 50HZ |
| Warranty: | 1 Year | Condition: | New |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

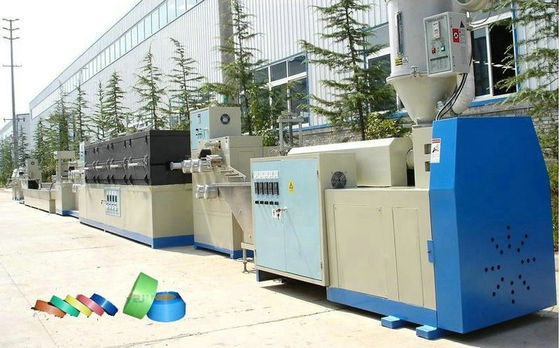

pp Strapping Band Tape Production Line , PET PP Packing Strap Band Extrusion Line , Plastic Strap Band Machine
Quick detail:
1. Products model:
Width: 9mm-25mm (can be adjusted according to client's production demand easily)
Thickness: 0.5mm-1.2mm (can be adjusted according to client's production demand easily)
Capacity: 1T-2T/Day(24 hours)
Total power: 120kw-160kw (380V, 50Hz)
2. -Features of PET straping band production line:
1). Process 100% recycled PET bottle flakes.
2). Even plasticization and stable extrusion with PLC automatic control for the full line.
3). As per different requirements, changing A coating materials for make strap have better and special function. For example, the strap for packing cotton, can be from enhancing the breaking strength and joint strength when welding strap.
4). Melt filter with two pistons with air venting design and backflusing.
5). Number of strap: 1, 2, 4
Description:
1. This production line is suitable for pp recycling, mixed and virgin granules to do sandiwched or non-sandwiched pp straps.100% wasted pp straps flakes can reproduce pp straps also.
2. energy-saving packing machine adopts advanced microcomputer automatic control system, automatic temperature controlled system, automatic extension of cooling heating system, automatic meter winding system and far-infrared energy-saving heating system. It has convenient operation and stable operation. In addition, it saves 30% electricity than other common machine.
Main technical parameters:
| 1 | Vacuum loader | 1set |
| 2 | CSG2000 dehumidify dryer | 1set |
| 3 | S90/33 single screw extruder(can be adjusted according to client's demand) | 1set |
| 4 | Hydraulic screen exchanger | 1set |
| 5 | Melt pump | 1set |
| 6 | Mould | 1set |
| 7 | Water tank cooling system | 1set |
| 8 | Haul-off machine | 1set |
| 9 | Heating oven | 1set |
| 10 | Preheating machine | 1set |
| 11 | Drawing machine | 1set |
| 12 | Embossing machine | 1set |
| 13 | Hot forming machine | 1set |
| 14 | Haul-off | 1set |
| 15 | Winder (double position) | 2sets |
| 16 | Chiller | 1set |
| 17 | Mould temperature controller | 2sets |
Application :

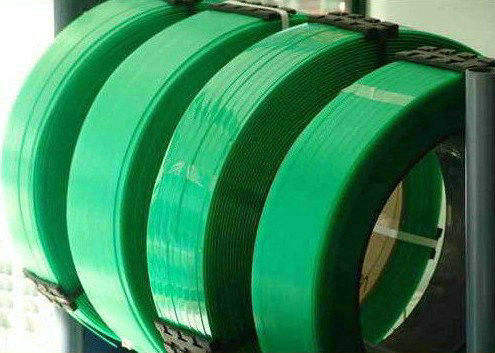

PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
FAQ:
Q1:Are you a trading company or a manufactory? A1:We are a manufactory,so we can give u the best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines? A2:We offer you high quality machines with 1 years guarantee . we will give you spare part free in 1 years
Q3:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts? A5:After we deal down all the things , we will offer you a spare parts list for your reference.
