Product Details:
|
| Brand Name: | Aorui | Conditon: | New |
|---|---|---|---|
| Screw Design: | Double Screw | Automatic Grade: | Fully Automatic |
| Voltage: | 380V 50HZ | Certificate: | CE ISO9001 |
| Port: | Qingdao | ||
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||

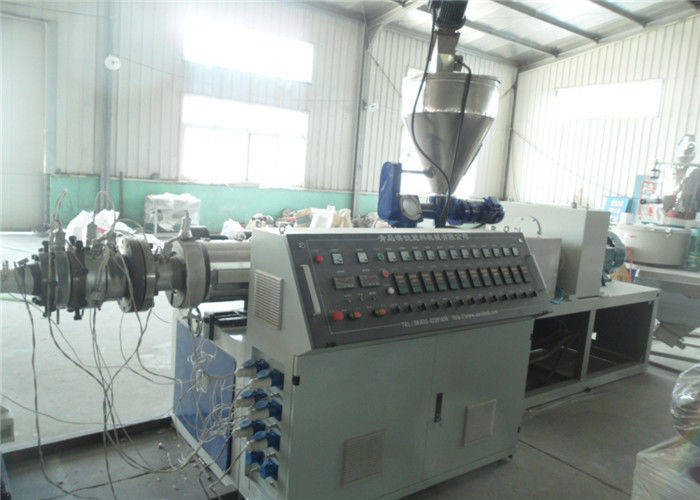

Plastic Corrugated Pipe Extrusion Line , PVC Double Wall Plastic Pipe Making Machine For Drainge
Quick detail:
PVC,PE single wall or double wall corrugated pipe production line can be used as wires and cable passing pipes,washing machine drain pipes etc.
Features:
1)The PVC,PE single wall or double wall corrugated pipe production line shall be used to produce small diameter PVC,PP and PE single wall corrugated pipes.
2)Corrugated pipes with smooth inside and outside surfaces,and even ripple are extruded once at a time.
3)End produces can be used as wires and cable passing pipes,washing machine drain pipes,dust collector pipes and ventiducts.
Description:
1. Corrugated Pipe Extrusionipes are used for drainage, waste water and sewage. Sunlight manufactures extrusion line for producing HDPE corrugated pipes in diameters of OD 63mm up to 1500mm. The complete line is operated and controlled by a automation system, which enables customers to produce the pipes in hight quality.
2. Double wall corrugated pipe extrusion line(OD63-250mm/OD200-400mm), this plant is high output and adopt water cooling system. Co-extrusion technology.

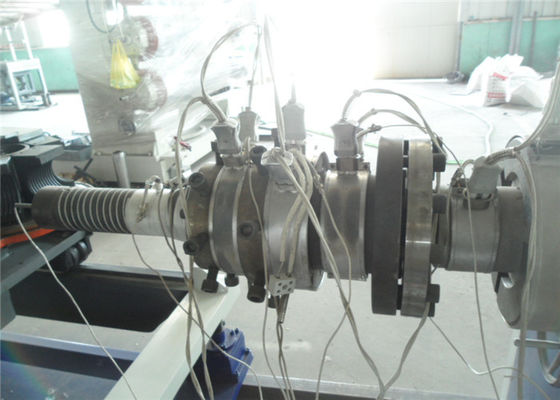

3. The die head has two structures: Independent extrusion structure and co-extrusion structure. Die head have water and air circular system respectively and form the double wall corrugated pipe by cooling water Manual and automatic function

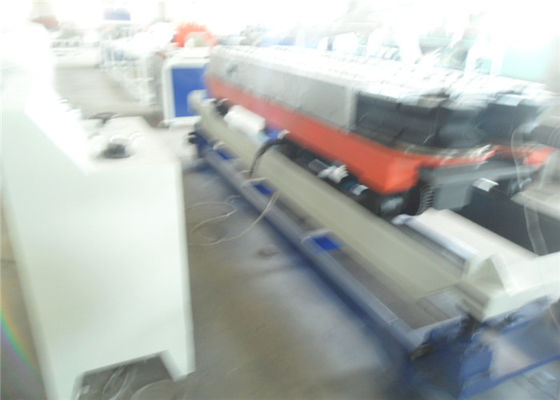

4. Corrugator adopt horizontal easy operation and beautiful.
Specifications:
|
Pipe Diameter
|
32-63mm
|
65-250MM
|
110-350MM
|
160-500MM
|
|
Extruder
|
SJ-55/28 + SJ-45/28
|
SJSZ65/132
|
SJSZ80/156
|
SJSZ92/188
|
|
Output
|
100kg/h
|
200KG/H
|
300KG/H
|
500KG/H
|
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time.
