Double - Wall Plastic Pipe Extrusion Line PVC Plastic Pipe Extrusion Machine

Double - Wall Plastic Pipe Extrusion Line PVC Plastic Pipe Extrusion Machine
Double - Wall Plastic Pipe Extrusion Line PVC Plastic Pipe Extrusion Machine Double - Wall Plastic Pipe Extrusion Line PVC Plastic Pipe Extrusion Machine Double - Wall Plastic Pipe Extrusion Line PVC Plastic Pipe Extrusion Machine Double - Wall Plastic Pipe Extrusion Line PVC Plastic Pipe Extrusion Machine

Large Image :  Double - Wall Plastic Pipe Extrusion Line PVC Plastic Pipe Extrusion Machine

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer ’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

Double - Wall Plastic Pipe Extrusion Line PVC Plastic Pipe Extrusion Machine

Description
Model Number: SJSZ65/132 Brand Name: Aorui
Certificate: CE ISO9001 Condition: New
Product Type: Plastic Pipe Extruding Type: Extruding Machine
High Light:

plastic pipe extruder machine

,

plastic pipe production line

Double - Wall Corrugated Pipe Extruding Machine , PVC Double Wall Corrugate Pipe Extrusion Line







Quick detail:



1. Double-Wall Corrugated Pipe Production Line is fully computer controlled, automatic(200-600)HDPE/PVC corrugated pipe production line. According to materialproperties, you can choose high efficient single-screw extruder for HDPE.

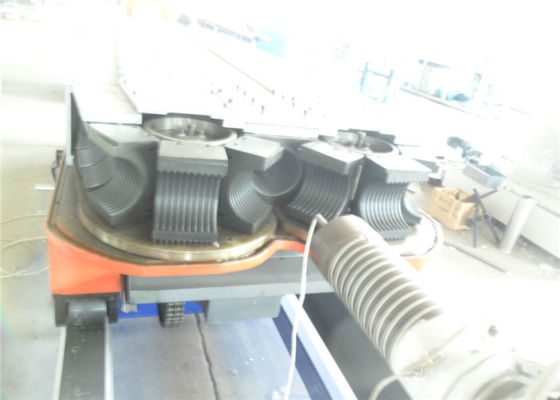

2. You can choose conical twin-screw extruder or parallel twin downstream equipments for PVC. The forming system of this line consists of mould and corrougator. The mould blocks can be easily changed and they may have air or water cooling system. The belling process can also be cutting machine. The production line can also be equipment with company logic control system.







Description:



1. double wall corrugated pipe extrusion machine,
1) Specification: 90-200mm

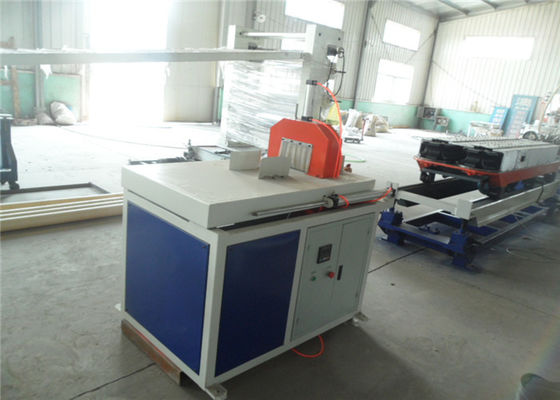

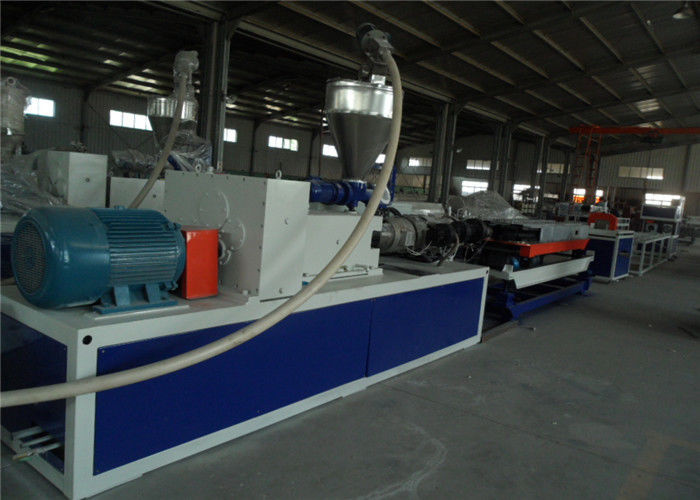

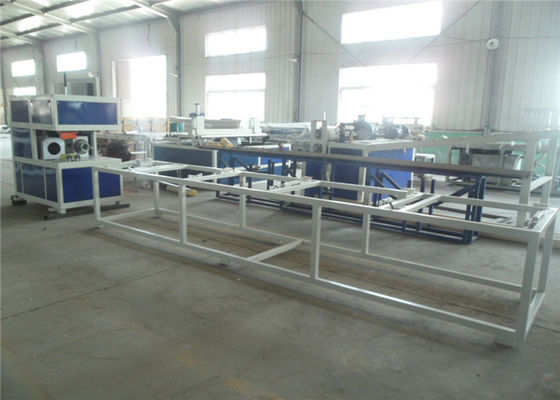

2) It's made of extruder, die head, forming module, forming machine, cutter, stacker, etc.
3) We can make the machine according to your requirements.



2. Double wall corrugated pipe material is UPVC, inner layer smooth, outer layer trapezoidal corrugated-size, hollow wall between inner layer and outer layer. The special design of pipe wall structure makes the pipes have many advantages such as: High ring stiffness, light weight, high pressure, good toughness, corrosion resistance, good wear resistance, construction convenient, low installation cost, long service life and so on.









Specifications:



Model SJZ-45 SJZ-51 SJZ-55 SJZ-65 SJZ-80I SJZ-80II SJZ92
Screw diameter 45/90 51/105 55/110 65/132 80/156 80/172 90/188
Max. rotational screw(rpm) 34.7 34.7 34.7 34.7 25 25 25
Mian motor(kw) 15 18.5 22 30/37 55 55 110
Capacity(kgs/h) 60 80 120 220 320 320 600
Central height(mm) 1000 1000 1000 1000 1100 1100 1200
Net weight(kg) 3000 3000 3500 4000 5500 5500 8000
Dimensions 3.3*1.2*2.1 3.6*1.1*2.1 3.6*1.1*2.1 4.2*1.5*2.4 4.7*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5







Application:



1. This kind of corrugated pipe is mainly used for underground water drainage system.
2. It is fully computer/instrument controlled, automatic production line. It features high and stable output capacity, and highly automatic operation.Our production range is Φ90~Φ200mm.









Technical and after-sales service:


The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time.
