Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Voltage: | 380V 50HZ | Motor: | Siemens |
| After-sales Service: | Engineers Availiable To Service | Name: | Plastic Profile Machine |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||
PVC Wood Plastic WPC Profile Production Line , pvc wpc Plastic Profile And Board Extrusion Machine
Quick detail:

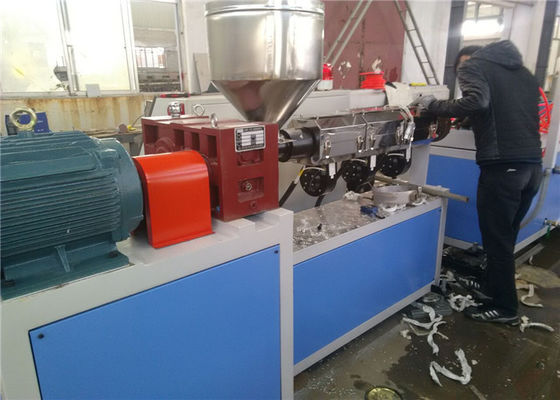

1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
Description:

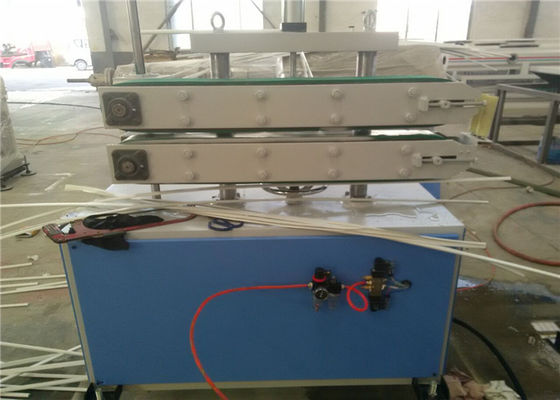

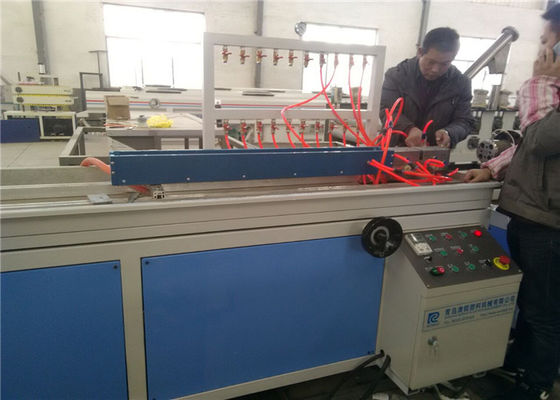

1. It has referred to the latest foreign technology and has optimized the design. It has such advantages as even plastication, small shearing speed, high output, long life span, etc. This machine consists of cone double screw extruder, vacuum setting table, drawing machine, cutting machine, film sticking machine, material tumbling frame, etc.
2. The main motor has applied imported inverter, temperature control apparatus are products of RKC of Japan. Auxiliary vacuum pump and drawing motor are all excellent quality products. It is simple to maintain. It may also directly extrude wood like balpo different shaped material, the effect is better than that of single screw extruder. If plasticated steel door & window different shaped material production line is used together with cone double screw extruder, it may process PVC plastic door & window different shaped material, steel-plastic compound different shaped material, different shaped multi-hole tubes for cables, shaped material for decoration, etc.
Technical Parameters:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 |
| Max.width of board(mm) | 180 | 240 | 300 | 600 | 900 |
| Extruder Model | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 | |
| Mian motor power(KW) | 22 | 37 | 55 | 110 | |
| Drawing height(mm) | 150 | 150 | 150 | 150 | 150 |
| Drawing speed(KN) | 20 | 20 | 20 | 30 | 40 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 |
| Cooling water consume(m 3 /h) | 6 | 6 | 6 | 9 | 12 |
| Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
