Product Details:
|
| Type: | WPC Board Production Line, Wood Plastic Extrusion Line | Screw Design: | Double Conical Screw |
|---|---|---|---|
| Automatic Grade: | Full Automatic | Plastic Processed: | PVC, Wood Plastic Composite |
| Voltage: | 380V/3P/50HZ, 600V/3P/60HZ, 220V/3P/60HZ | Raw Material: | Recycled PE/PP, Wood Powder, Additive Material, Etc |
| High Light: | Wood Plastic Extruder,Wood Plastic Composite Extruder |
||

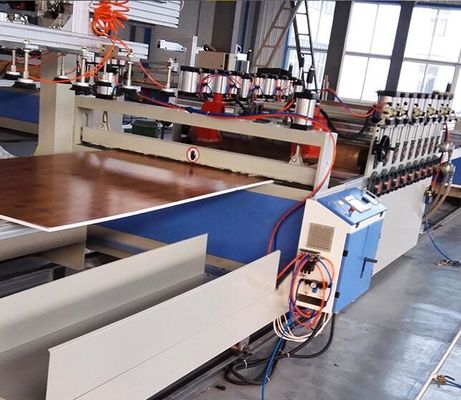

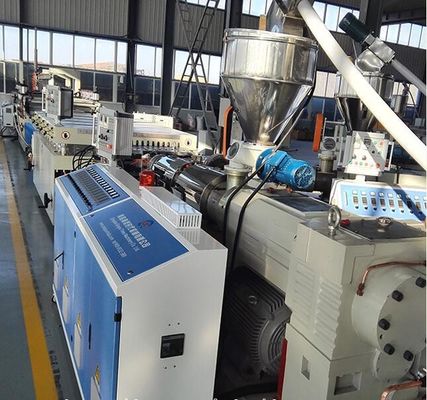

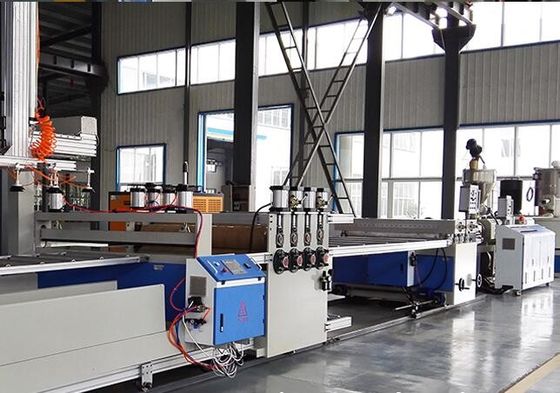

PVC WPC Plastic Board Production Line , Wood Plastic WPC Building Template Extrusion Machine
Quick detail:
1. Wood-Plastic WPC Building Templates Production Line
2. WPC building templates are very suitable for high-building standard template, shear wall, vertical wall plate, bridge, dam and tunnel templates and so on.
Durability: Repeated use above 30 times, anti-aging, not deform, not shrink, no crack, colourfast, no sticking to concrete.
3. Practicality: Can prcess by saw, nail, planer, viscosity into any geometric shape, with solid wood all the installation performances.
Description:
1. Using international advanced CAD design software, 38CrMoAIA alloy steel with superior quality and coating metal on surface, special mixing material function and high plastify capacity of screw and barrel.
2. It has such characteristics as high impact resistance, high rot resistance , high temperature resistance , non-toxic , smooth surface , light , easy to thermoform , etc.
3. Driving by DC motor with advantages of steady output and large torque, and it also uses ABB or England Eurotherm speeder with the advantages of large extrusion quantity and high-efficiency.
Applications:
1.WPC celuka decorative window foamed board is
widely used in buses, train cars roof, box core layer,building wall panels, interior decoration board, office,
residential, public building, commercial decorative frame, clean room with a board, ceiling board, screen
printing computer
2.usage:mould plate, sports equipment, breeding equipment, seashore wet-proof facility, water-fast
material, art material, various interlayer, etc
3.Industry:such as chemical industry antisepticizing project, thermoforming, for refrigeratroy, for
temperature keeping, for environment protection, etc.
4.through printing or sticking film on the surface , the board can be used in furniture & fixture, bathroom
,construction Industry ,decoration material ,advertising material ,automobile, etc
Specifications:
| Extruder model | SJZ55/110M | SJZ65/132M | SJZ80/156M | SJZ92/188M |
| Main motor power(kw) | 22 | 37 | 55 | 110 |
| Down-stream equipment model | YF240S | YF240A YF300A |
YF600 | YF900 YF1200 |
| Product width(mm) | Max240 | Max240 Max300 |
Max600 | Max900 Max1200 |
| Vacuum pump(kw) | 2*5.5 | 4*5.5 | 1*7.5 2*11 |
1*7.5 2*11 |
| Water pump(kw) | 1.5 | 4 | 7.5 | 7.5 |
| Haul-off speed | 0-5 | 0-5 | 0-3 | 0-2.5 |
| Down-stream equipment power | 22 | 35 | 44 | 52 62 |
| Output(kg/h) | 70 | 120 | 180 | 400 |
Competitive Advantage:
1.good after-service
2.spare parts are free
3.guarantee:one year or according to customer’s requirement.
4.advanced technology and best quality
5.international certification standard.
6.our engineer help and teach customer to test the machine.
