Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Voltage: | 380v 50HZ | Place Of Origin: | Shandong , China(Mainland) |
| Raw Material: | PVC | Screw Design: | Twin Screw |
| Product Type: | Corrugated Pipe | ||
| High Light: | double screw extruder,twin screw extrusion machine |
||
Single Wall Graden / Hose PE Corrugated Pipe Production Line , PE Single Wall Corrugated Pipe Extruder Machine
Quick detail:
1. Introduction of PE/PP & PVC Single Wall Corrugated Pipe Production Line
It consists of automatic feeding system/single screw extruder/die head/forming machine /winder. It is mainly produce PE/PP/PVC single corrugated pipe. The PE/PP/PVC single corrugated pipe is mainly used in the golf course, playgrounds as light load of drainage, floods; Interior decoration cable casing; Automotive wire casing; The washing machine, air conditioner drain; Prestressed concrete special pipe, etc.
2. Machine's Features:
Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
Description:

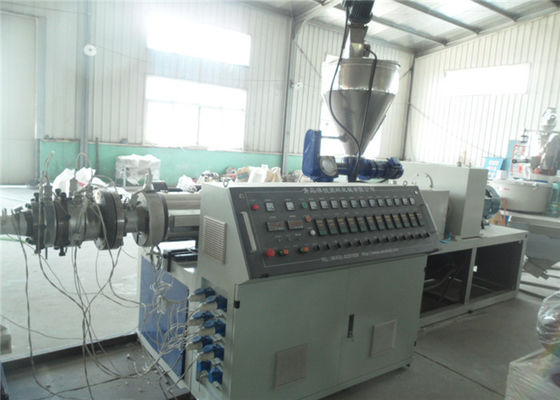

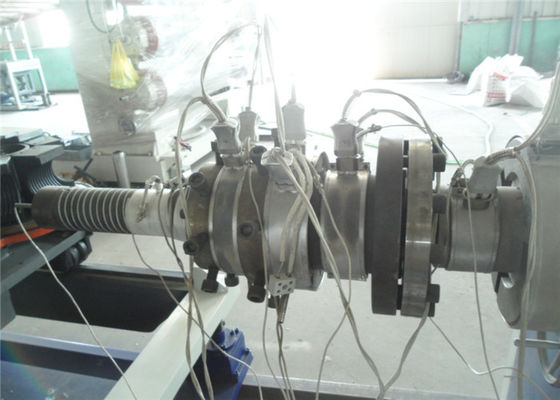

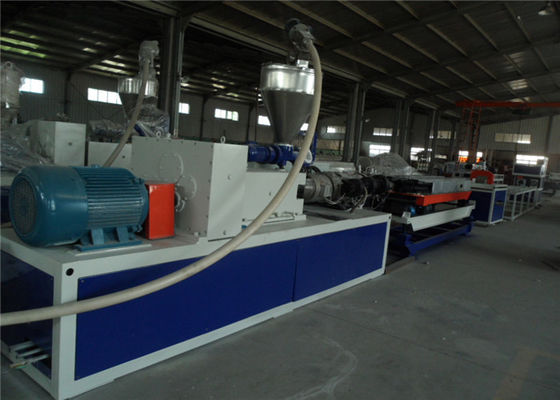

1. The corrugated pipe line includes single screw extruder, extrusion mold, pipe corrugate calibration machine, double winder, etc.
2. Good components: Siemens Beide main motor, ABB inverter, Eurotherm DC regulator, Siemens & Schneider low voltage electrics, Omron temperature controller.
3. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||
Competitive Advantage:
1. CE&ISO9001 certificate
2. our engineers availiable to go abroad to service , we can tarin the local workers how to use thhe machine and maintain the pvc corrugated pipe extrusion machine.
3. we offer the technical assistance and market investigating.
4. Fast delivery and good quality
