Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65/132 |
|---|---|---|---|
| Place Of Original: | Shandong , China | Automatic Grade: | Fully Automatic |
| Condition: | New | Plastic Processed: | PE |
| Certificate: | CE ISO9001 | ||
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||

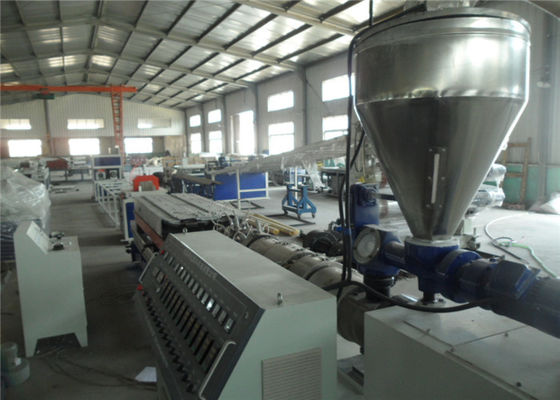

20-50mm PE Plastic Extrusion Line Single Wall Corrugated Pipe Production Line
Quick detail:
1. Description for the PP, PE single wall plastic corrugated/spiral tube extrusion machine line
1) material for the single wall corrugated pipe:
This production line can be used to produce corrugated pipes of PE, PP, PVC, EVA continuously, as well as PA corrugated pipes.
2) application for the single wall corrugated pipe:
Plastic single-wall corrugated pipes have feathers of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
Description:
1. PE single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.
2. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

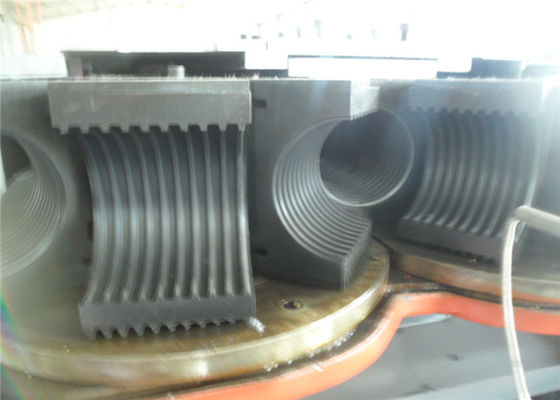

3. The production line shall be used to produce small diameter single wall corrugated pipe in PE/PP and PVC raw material. Molding corrugated pipe with smooth inside and outside surface, and even ripple at one time by corresponding die. Used as electic wire pipe, washing machine drain pipe, dust collector pipe and ventiduct, etc.
Specifications:
| pipe diameter | 4.5-8 | 8-32 | 16-63 |
| motor power | 4 | 11 | 18.5 |
| extruder | sj-30/30 | sj-45/30 | sj-65/30 |
| extruding capacity (kg/h) | 10 | 30-40 | 60-80 |
| mould pairs | 50 | 50 | 50 |
| cooling | water&air | water & air | water &air |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
