Product Details:
|
| Certification: | CE & ISO9001 | Condtion: | New |
|---|---|---|---|
| Screw Design: | Single Screw | Voltage: | 380V 50HZ |
| Color: | Bule Or According To Customer's Requirement | Automatic Grade: | Fully Automatic |
| After-sales Service: | Engineers Availiable To Service | Application: | Pipe |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
PE Plastic Pipe Production Line , PE Plastic Pipe Extrusion Machine , PE Plastic Water Pipe Extruder
Quick detail

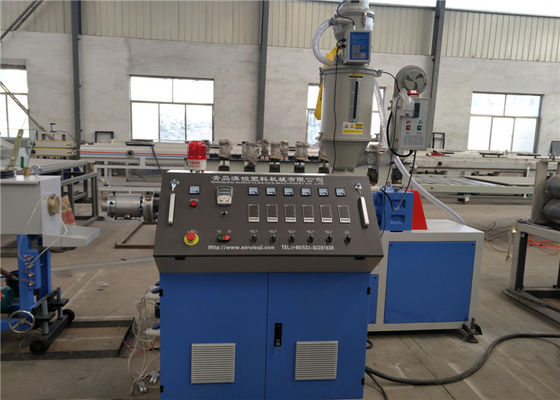

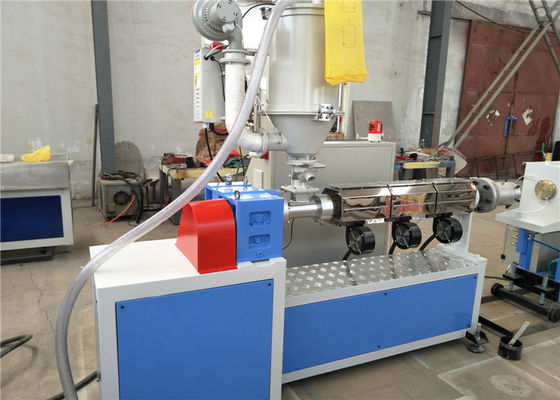

1. Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization.
2. Separation mixing screw specialized for polyolefin.

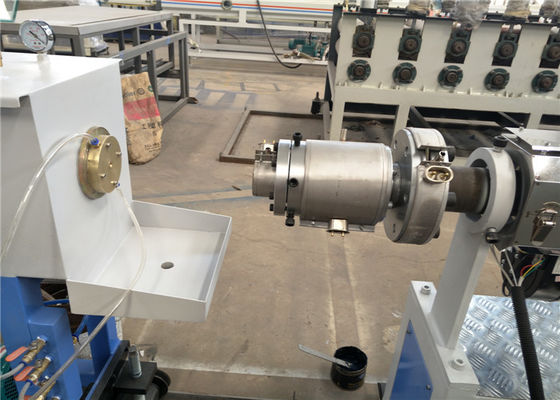

3. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress.
4. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min.
5. May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX and PE-RT pipes.
Description:
1. Longitudinal welding machine,spraying printer,inverter,temperature control instrument ,computer control system are all famous products in the world.
2. Controlling center adopting computer control system of Austria B&R company' programmable computer control PC,which long-distance closed loop control automatically the process of speed of extruding and hauling,temperature and product diameter.
3. The haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, ten-claw type, twelve-claw type, etc. Scraps free cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, etc.
Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line
| Model | PE63 | PE160 | PE315 | PE400 | PE500 | PE630 |
| Produced Pipe Specification(mm) | 16-63 | 75-160 | 110350 | 110-400 | 160-500 | 200-630 |
| Calibration length(mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Degree of vacuum(Mpa) | -0.030.08 | -0.030.08 | -0.030.08 | -0.030.08 | -0.030.08 | -0.030.08 |
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Max Hauling speed(m/min) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Effective hauling length(mm) | 1000 | 1500 | 1500 | 1500 | 1800 | 1600 |
| Compressed air consumption(m3/h) | 0.4 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 |
| Refilled water volume(m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Line length(m) | 20 | 22 | 30 | 30 | 36 | 42 |
Application:
It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on. This set is also suitable for the production of crosslinked PE pipes and other olefine products. Our company can provide you with detailed ingredients and complete manufacture line.
Why choose us:
we have more than 15 years experiences in this field.
we are factory , customers can go to our factory to see the machine
we have CE&ISO9001 certificate
We are a professional manufacturer of plastic machinery in China
our engineers can go to aborad to install the machine and trainning the workers.
